Description
Complete Gate Automation Kit
for DOUBLE SWING gates
Professional
**For use with leaves up to 3.00 m long and weighing 350 kg**
Mod. BHR 230V
BRACKET DIMENSIONS:
Linear electromechanical actuator for condominium use, all-metal construction, aluminium rod.
Once correctly installed, BHR automation systems require virtually no maintenance, and installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 350 kg and measuring no more than 3.00 metres in length. The aluminium housing and bronze gear core ensure a long service life.
The actuator holds the gate locked when open and closed without requiring an electric lock for the leaves. Convenient release using the triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1/2 leaves.
Electronic clutch with convenient, quick stroke adjustment and the option to adjust the delay before the second leaf moves.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the ability to control each leaf's travel independently.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

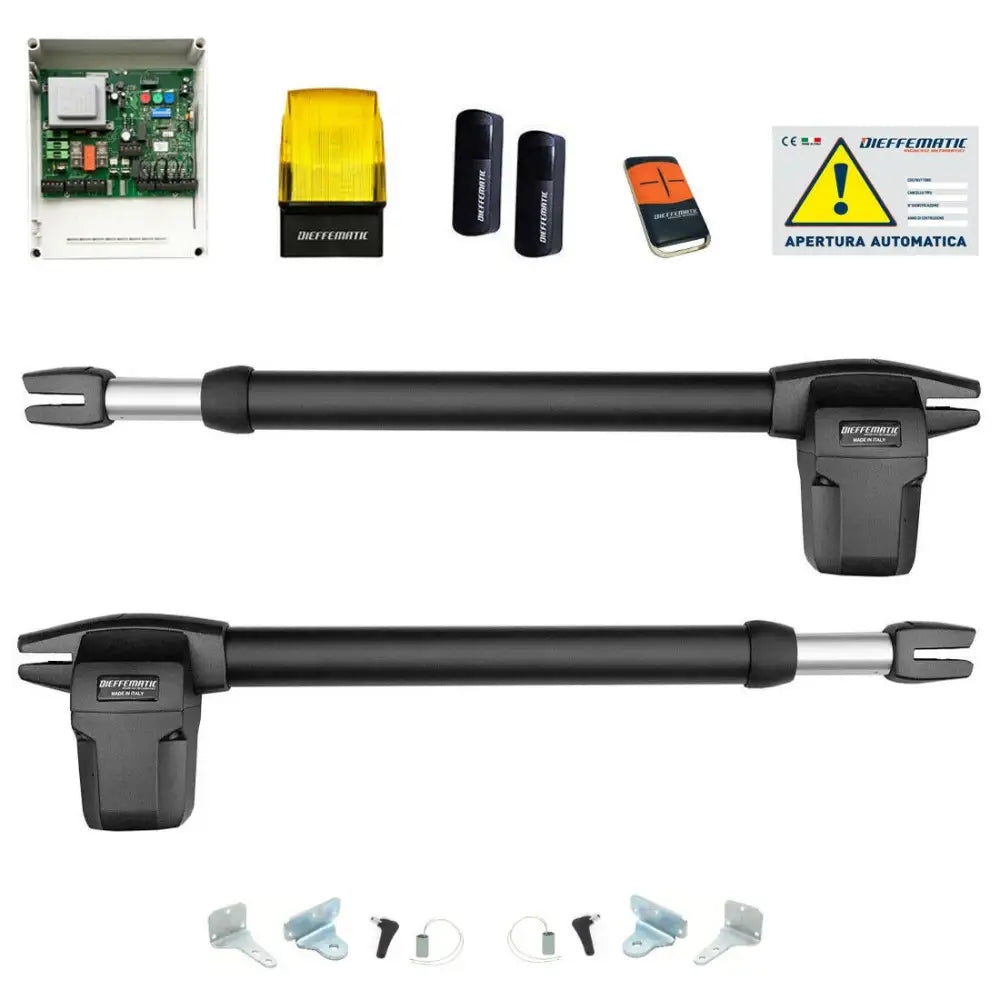

KIT CONTENTS:
No. 2 Linear electromechanical actuator for residential and condominium use, for outdoor use
Emergency release. No electric lock required.
Motor speed 1,400 rpm. Power 280 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.0 kg
No. 1 Control unit with waterproof enclosure, motor force and slowdown adjustment trimmers, built-in obstacle detection, slowdown during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges, electric lock control, reverse kick, adjustable leaf offset during closing/opening, closing time adjustment.
No. 1 Single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 40 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 Pair of wall-mounted photocells
No. 1 230V LED flashing light
No. 1 Warning sign
No. 1 Installation accessories
No. 1 Mechanical and electronic installation instructions in ITALIAN
24-month warranty
