Shipping
shipping in 10 working days
Description

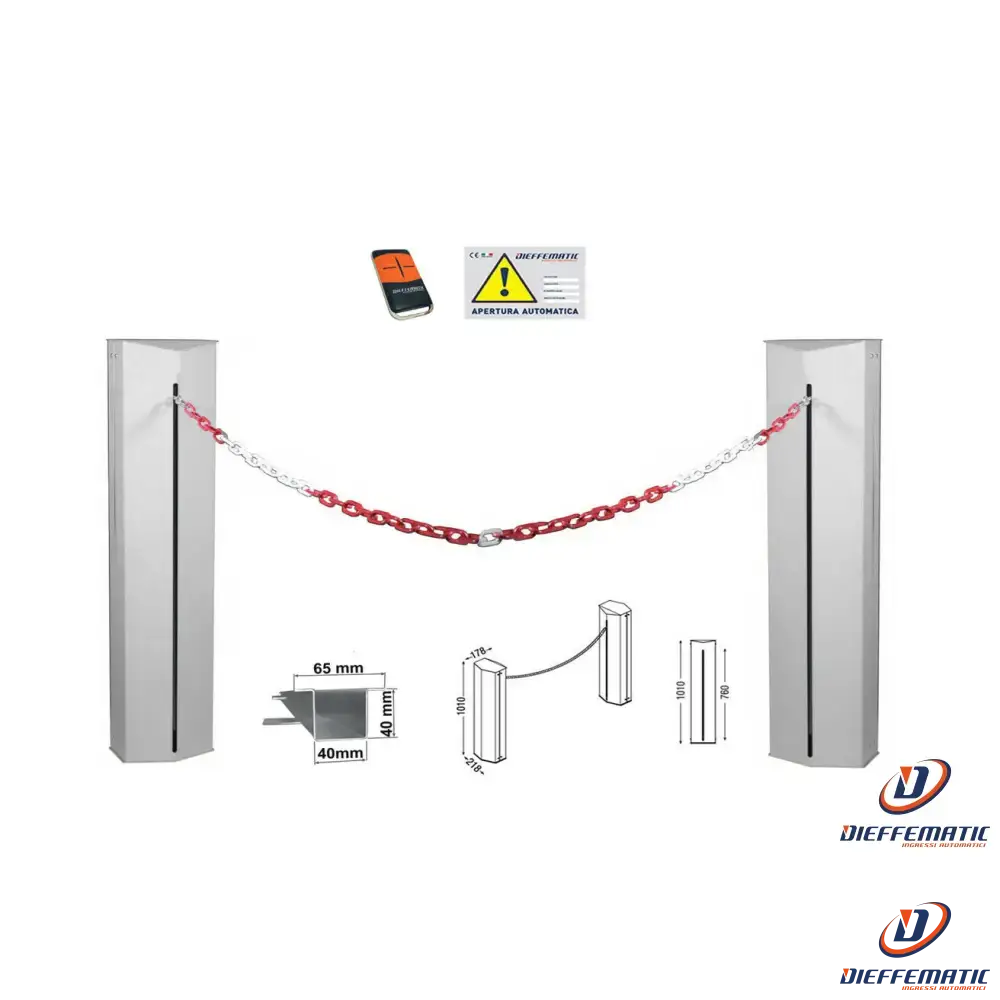

The chain barrier to easily delimit parking or carraes.
Chain barrier for passages up to 20 m.
(8 meters of chain and retractable floor guide including)
Unorganized control unit with slow and closing slowdowns, pillar height 1010 mm.
24 VDC motorhid, with encoder, pillar height 1010 mm.
The new painting will be of the "peeling" type, rather than smooth as the current.
The modification will allow an improvement in the aesthetics of the product
And it will ensure better robustness to small scratches and signs due to handling in the installation phase.
This type of paint will also improve the aging effect, keeping the original color longer.
The chain barrier to easily delimit small parking lots or carraes.
• Simple and quick installation.
• Intelligent: thanks to the detection of obstacles and automatic programming of the race.
• always ready: operation in the absence of current with rechargeable batteries that can be connected
to the control unit via the battery charger card, through a comfortable guided coupling connector.
• Galvanized and painted steel structure.
Click on the link for the instruction and brochure manual:
Mechanical installation manual
Composition of the kit:
Tecno CatMASTER'S DEGREE
Tecno CatSlave
Control unit withencoder
8mt steel chaintwo -tone white &red.
Ruetting joint.
Built -in guidein galvanized sheet metalL = 8mt.
Remote control 4 Rolling Code channels
Catharifrangive stickers
Technical features
Power supply (V) 230 Vac - 50Hz
(120vac - 60Hz)
Motor power supply (V) 24 VDC
Motor absorption (a) 1.0
Engine power (W) 60
Weight (kg) 25
Maximum chain weight (kg) 8.5
Recommended daily cycles (n °) 100
Maximum chain length (m) 20
Service (%) 50
Operating temperature (° C) -20 ° +50 °
Degree of protection (IP) 45
24 months warranty
