Description
Complete kit for SLIDING GATE automation
600 kg - 230V
Professional
**encoder unit can be installed (optional)**
Mod. KV6 230v
- Irreversible electromechanical gearmotor for automating sliding gates, with all-metal gears for reliable performance.
- Robust and safe, it has a painted die-cast aluminum body and an ABS protective casing.
- It features an innovative mechanical limit switch system that is easy to adjust and ensures highly repeatable positioning.
- Particularly suitable for use in locations where snow is frequent, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalized-key release system allows the gate leaf to be operated manually when mains power is unavailable.
- Control unit with radio receiver, housed in a dedicated enclosure with an Aerstop gasket to protect against moisture and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed slowdown.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

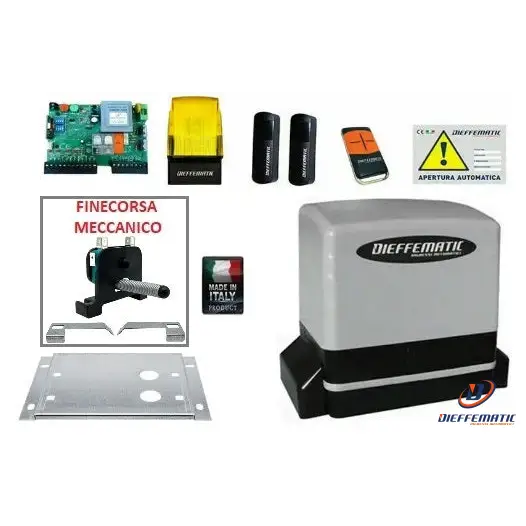

KIT CONTENTS:
- 1 Electromechanical gearmotor, 600 kg, 220V power supply with key release, dimensions H270 X W230 X D210 mm. Weight 8 kg.
- 1 Galvanized foundation plate
- 1 Control unit housed in the motor casing, with motor force adjustment trimmer and obstacle detection, opening and closing slowdown, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges
- 1 Single-channel radio receiver integrated into the control unit (433.9 MHz)
- 1 Antenna integrated into the control unit, range 20 metres (433.9 MHz)
- 1 4-channel rolling code remote control
- 1 Pair of wall-mounted photocells
- 1 230V flashing light
- 1 Warning sign
- 1 Set of installation accessories
- 1 Mechanical and electronic installation manual in ITALIAN
24-month warranty
