Description
Capacity 170kg

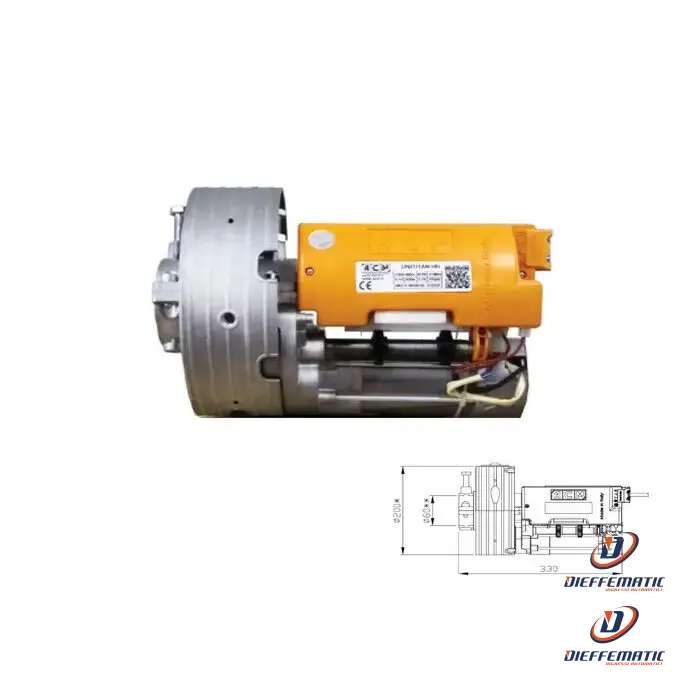

ACM UNI TITAN
Professional
The quality of the materials makes this motor lightweight, quiet and compact, ensuring excellent durability.
The TITAN series allows quick and easy motorisation of commercial and garage rolling shutters.
Features:
Power supply 230 Vac - 50 Hz
Extremely easy to install, even on existing shutters,
thanks to the design of the device, which separates into two parts that can be rejoined on the spring shaft.
Easy-to-adjust built-in limit switches.
The gearbox is reversible.
Die-cast aluminium housing, with steel-alloy mechanical components.
Permanent lithium grease lubrication
The motor is suitable for 60-48mm shafts. For 42-33 mm shafts, the RD42 42mm shaft adapter must be purchased separately.
Outer crown diameter 200 mm, 220mm adapter included.
CLICK THE LINK FOR THE MANUAL:
MECHANICAL INSTALLATION MANUAL
CONTENTS:
1 x Electromechanical actuator, die-cast aluminium housing, high-performance electric motor.
Power supply 220 V. 50 Hz. Weight 8.3 kg
1 x Installation accessories
1 x Mechanical and electronic installation instructions in ITALIAN
24-month warranty
