Description

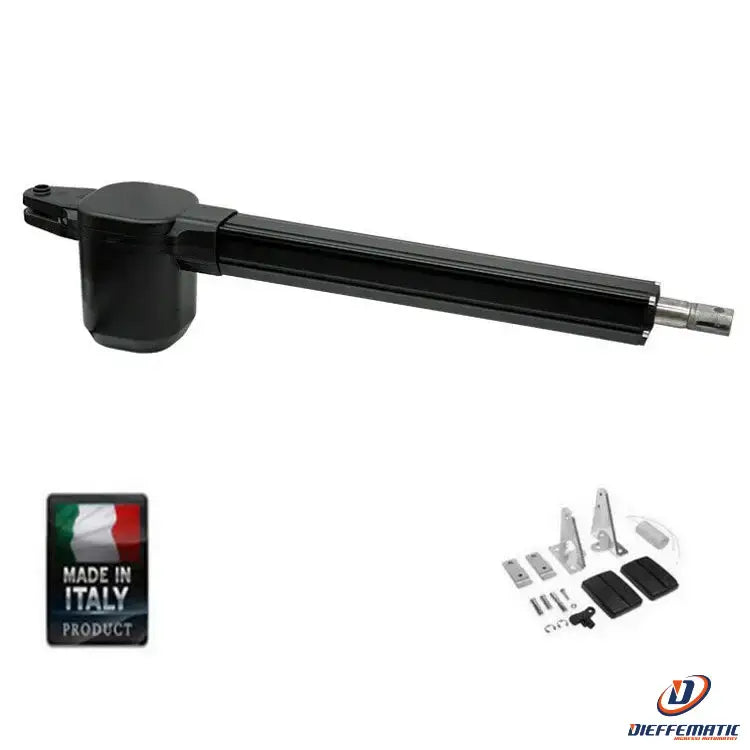

ACTUATOR for swing gate
Model BHE 230V 500 STROKE
SKU: 11021
230V
STROKE 500
With mechanical limit switches for opening and closing
Professional
**For gate leaves up to 3.00 m long and 200 kg**
Electromechanical linear actuator for communal use, all-metal construction, stainless steel rod.
Once correctly installed, BHE automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for gate leaves weighing no more than 200 kg and measuring no more than 3.00 metres in length. The aluminium body and bronze gears ensure a long service life.
The actuator keeps the gate leaf locked in both the closed and open positions without requiring an electric lock. It features a convenient triangular key release located on the motor unit.
CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MECHANICAL INSTALLATION MANUAL
BRACKET DIMENSIONS:
CONTENTS:
No. 1 electromechanical linear actuator for communal use, for outdoor use
Emergency release with key. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
No. 1 set of installation accessories
No. 1 mechanical and electronic installation manual in ITALIAN
24-month warranty
