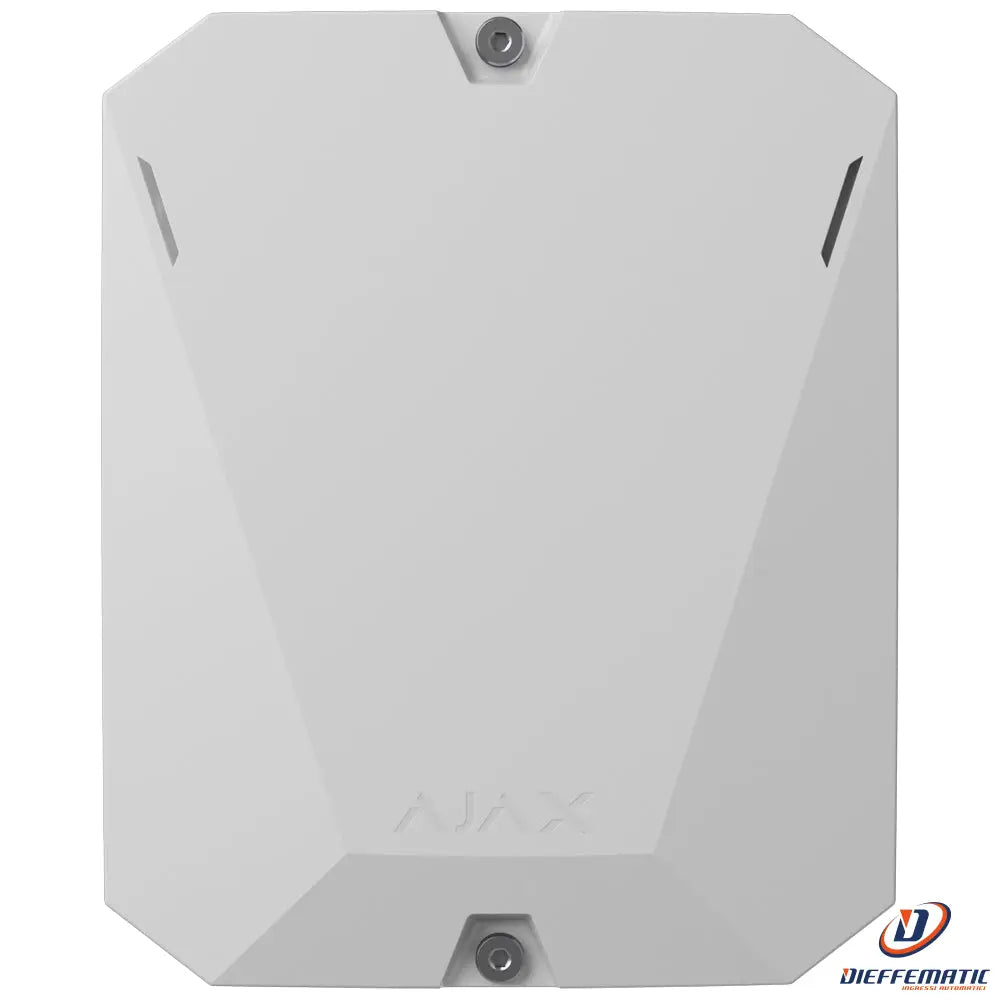

Ajaxviviendavacía Aj-Hubbp-W Grade 2 Wireless Alarm Control Panel

Grade 2 wireless alarm control panel

Mod. AJ-HUBBP-W

SKU: AJ-HUBBP-W

• Grade 2 wireless alarm control panel

• Dual SIM 4G / Empty homes or remote locations

• Main power supply via zinc-air battery

• Long backup battery life

• Lead-acid or lithium backup batteries

• Compatible with ExternalAntenna


DESCRIPTION:

Grade 2 certified wireless alarm control panel for installations without a permanent power supply. It is the ideal control panel for unoccupied homes or remote locations requiring protection. Hub BP offers extended autonomy thanks to long-lasting operation with internal and external batteries (for example, zinc-air batteries).

The various communication channels make this control panel highly versatile. Communication with the cloud takes place via 4G (LTE) with dual SIM. For radio communication with devices, Hub BP uses Jeweller and Wings (868 MHz), which enable photo verification with Ajax MotionCam devices. In locations with poor wireless coverage (mobile network, Jeweller, and Wings), the AJ-EXTERNALANTENNA-B external antenna can be used. Its 3-meter cable allows optimal positioning. For protection, the antenna features a cut detection system that immediately alerts the security company.

This Hub BP uses Ajax’s proprietary Malevich operating system, designed to optimize the performance of security panels. It offers greater security, reliability, and speed, with regular updates that ensure a high level of tamper resistance. It includes advanced features such as remote configuration, self-diagnostics, and real-time stability, protecting devices from cyberattacks and physical tampering. It also efficiently handles the simultaneous, instant transmission of alarm messages over the Internet. It is essential for maintaining the integrity and operation of the Ajax ecosystem


• Ajax

• Wireless control panel via Dual SIM 4G

• Bidirectional

• 868 MHz Jeweller protocol

• Optimised to protect vacant homes or remote locations without access to the power grid

• Internal antenna range in open space: 2000 m

• Compatible with the AJ-EXTERNALANTENNA-B external antenna for Jeweller, Wings and 4G (not included)

• 12 s supervision

• Opening tamper

• Anti-jamming

• Primary power supply via an external 4.2~16 V battery (e.g. zinc-air)

• Backup power via a long-life rechargeable lead-acid or LiFePO4 battery (not included)

• Supports up to 100 connected wireless devices

• Up to 50 users

• Compatible with photoelectric detectors and other alarm accessories in our catalogue

• Grade 2 certified

• Indoor use

• White


SPECIFICATIONS:

Brand
Ajax

RF frequency
868 MHz. Jeweller and Wings wireless protocols

Security level
Grade 2

Communication
Dual SIM 4G (LTE)

Firmware update
Available. Remote OTA (over-the-air) updates

External antenna compatibility
Available. 3 connectors for AJ-EXTERNALANTENNA (4G / Jeweller / Wings)

Internal security
Opening tamper

Internal siren
Not available

Maximum number of devices
100 (max. 10 sirens)

Video integration
Up to 36 Ajax NVRs / 224 third-party IP cameras via Ajax NVR / 492 Ajax IP cameras

Number of users
Up to 50 users

Primary power supply
4.2-16 V zinc-air battery (not included)

Backup battery
4.2-16 V rechargeable battery (not included)

Advanced battery-saving mode
Available

Enclosure material
ABS plastic

Operating temperature
-10°C ~ 40°C

Operating humidity
Up to 75%

Dimensions
196 (H) x 238 (W) x 100 (D) mm

Weight
1010 g

Colour
White


CONTENTS:

• Hub BP Jeweller

• Installation kit

• Installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-HUBBP

Compatibility table for Ajax devices and control panels

Compatibility of Ajax accessories with Hubs and ReXs

Ajax Spaces guide

24-month warranty
