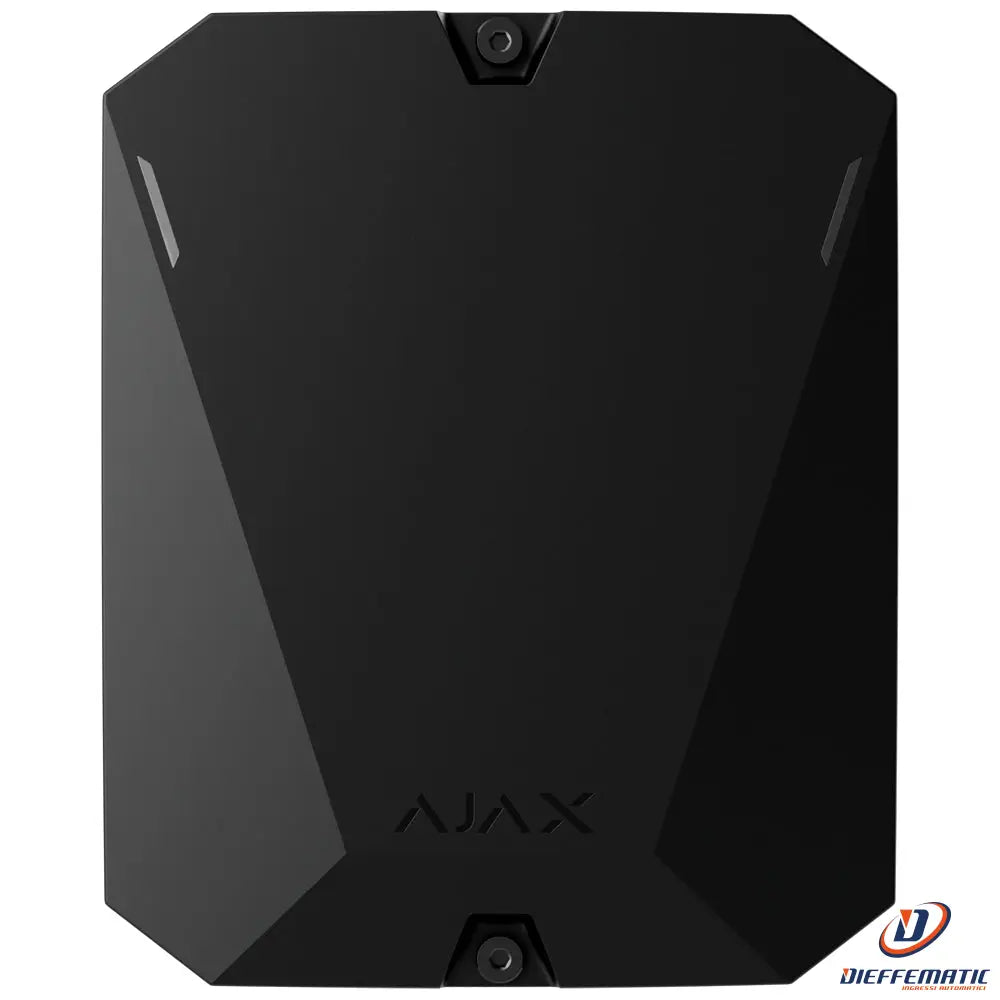

Ajaxviviendavacía Aj-Hubbp-B Grade 2 Wireless Alarm Control Panel

Grade 2 wireless alarm panel

Mod. AJ-HUBBP-B

SKU: AJ-HUBBP-B

• Grade 2 wireless alarm panel

• Dual SIM 4G / Empty properties or remote locations

• Main power supply via zinc-air battery

• Long backup battery life

• Lead-acid or lithium backup batteries

• Compatible with ExternalAntenna


DESCRIPTION:

Grade 2 certified wireless alarm panel for installations without a permanent power supply. It is the ideal control panel for unoccupied homes or remote locations that require protection. Hub BP offers excellent autonomy thanks to extended operation on internal and external batteries (for example, zinc-air batteries).

Multiple communication channels make this control panel highly versatile. It communicates with the cloud via 4G (LTE) with dual SIM. For radio communication with devices, Hub BP uses Jeweller and Wings (868 MHz), enabling photo verification with Ajax MotionCam devices. In locations with poor wireless coverage (mobile network, Jeweller, and Wings), the AJ-EXTERNALANTENNA-B external antenna can be used. Its 3-meter cable allows for optimal positioning. For protection, the antenna features a cable-cut detection system that immediately alerts the monitoring center.

This Hub BP uses Ajax’s proprietary Malevich operating system, designed to optimize the performance of security panels. It offers greater security, reliability, and speed, with regular updates that ensure a high level of tamper resistance. It includes advanced features such as remote configuration, self-diagnostics, and real-time stability, protecting devices from cyberattacks and physical tampering. It also efficiently handles the simultaneous, instant transmission of alarm messages over the Internet. It is essential for maintaining the integrity and operation of the Ajax ecosystem.


• Ajax

• Wireless control panel via Dual SIM 4G

• Bidirectional

• Jeweller protocol, 868 MHz

• Optimized to protect vacant homes or remote locations without access to mains power

• Internal antenna range in open space: 2000 m

• Compatible with AJ-EXTERNALANTENNA external antenna for Jeweller, Wings and 4G (not included)

• 12 s supervision

• Anti-opening tamper

• Anti-jamming

• Main power supplied by an external 4.2~16 V battery (e.g. zinc-air)

• Backup power supplied by a rechargeable lead-acid or LiFePO4 battery (not included) for long-lasting operation

• Supports up to 100 connected wireless devices

• Up to 50 users

• Compatible with motion detectors and other alarm accessories in our catalogue

• Grade 2 certified

• Indoor use

• Black


SPECIFICATIONS:

Brand
Ajax

RF frequency
868 MHz. Jeweller and Wings radio protocols

Security grade
Grade 2

Communication
Dual SIM 4G (LTE)

Firmware update
Available. Remote OTA (Over-the-air) updates

External antenna compatibility
Available. 3 connectors for AJ-EXTERNALANTENNA (4G / Jeweller / Wings)

Internal security
Anti-opening tamper

Internal siren
Not available

Maximum number of devices
100 (max. 10 sirens)

Video integration
Up to 36 Ajax NVRs / 224 third-party IP cameras via Ajax NVR / 492 Ajax IP cameras

Number of users
Up to 50 users

Main power supply
4.2-16 V zinc-air battery (not included)

Backup battery
4.2-16 V rechargeable battery (not included)

Advanced battery-saving mode
Available

Housing material
ABS plastic

Operating temperature
-10°C ~ 40°C

Operating humidity
Up to 75%

Dimensions
196 (H) x 238 (W) x 100 (D) mm

Weight
1010 g

Colour
Black


CONTENTS:

• Hub BP Jeweller

• Installation kit

• Installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-HUBBP

Compatibility table of Ajax devices with control panels

Compatibility of Ajax accessories with Hubs and ReXs

Ajax Spaces Guide

24-month warranty
