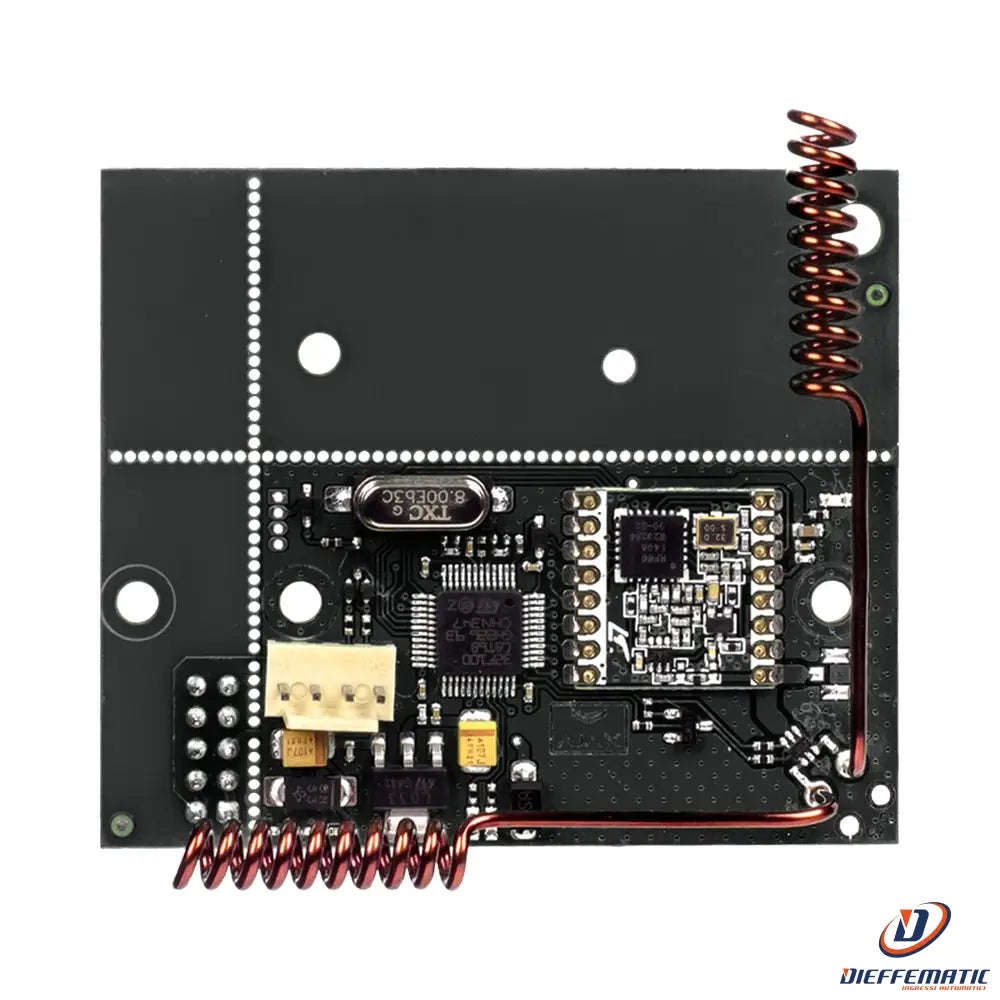

Ajax Aj-Uartbridge Integration Module

Integration module

Model AJ-UARTBRIDGE

SKU: AJ-UARTBRIDGE

• Integration module

• Ajax devices with smart home control panel

• Up to 85 Ajax devices

• Range up to 2 km

• Serial communication (UART interface)

• DC 5V power supply


DESCRIPTION:

The AJ-UARTBRIDGE device is a module for integrating Ajax devices (motion detectors, magnetic contacts, remote controls, etc.) with smart home systems via a UART interface. Up to 85 Ajax devices can be added wirelessly to this module using the 868 MHz Jeweller radio protocol. Communication with the third-party control panel takes place via the UART interface, through which information from Ajax devices is sent to the system.

Communication between the AJ-UARTBRIDGE module and Ajax devices has a range of up to 2 kilometers in open-field conditions.


SPECIFICATIONS:

Brand
Ajax

Module inputs
Up to 85 Ajax devices

Transmission range
Up to 2 km in open space

Transmission frequency
868 MHz Jeweller

Compatibility
MotionProtect, MotionProtect Plus, CombiProtect, DoorProtect, FireProtect, FireProtect Plus, LeaksProtect, SpaceControl and GlassProtect

Power supply
DC 5 V

Operating temperature
-10° C ~ +40° C

Dimensions
64 (W) x 55 (H) x 13 (D) mm


CONTENTS:

• Integration module

• Instruction manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

AJ-UARTBRIDGE - UART interface communication protocol

Compatibility table of Ajax devices with control panels

Safire Camera Integration Quick Guide (P2P + RTSP)

Step-by-step Ajax Hub setup

Ajax PRO Desktop

Ajax Spaces Guide

24-month warranty
