Description
Professional alarm kit
Mod. AJ-STARTERKITPLUS-CAM-W
SKU: AJ-STARTERKITPLUS-CAM-W
• Professional alarm kit
• Grade 2 certified
• Ethernet / Wi-Fi / dual SIM 4G communication
• Wireless 868 MHz Jeweller and Wings
• Ajax HUB 2 Plus, 1 PIRCAM
• 1 magnetic contact and 1 remote control
DESCRIPTION:
Professional AJAX wireless two-way communication intrusion alarm system.
Easy connection and high reliability are ensured by its advanced Jeweller protocol with high-security AES encryption. The exclusive intelligent, real-time monitoring system detects signal jamming by identifying a specific period of inactivity, while also reducing maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open space. It also includes features that simplify installation, such as the Smart-Bracket and easy connection of detectors to the alarm system.
Supports up to 200 wireless zones, with the option to group these devices into up to 25 different groups, which can be armed, partially armed, or disarmed. These Ajax wireless devices can be configured in various ways, such as as 24-hour zones or zones with entry or exit delays.
The AJ-HUB2PLUS-W panel has an AC 110-250 V power input and a rechargeable backup battery with a runtime of up to 15 hours. This control panel incorporates the Wings wireless protocol to receive images from the AJ-MOTIONCAM-W photo-verification detector.
Ethernet communication is the main advantage for remote access for both users and installers, as it enables connections through the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end users) and AJAX PRO: Tool for Engineers (professionals). These apps allow you to configure the entire system, manage users and their permissions, add devices, group them into zones, and change their configurations. The cloud is compatible with dynamic IP addresses and requires no port forwarding.
Ajax users will benefit from a range of advantages, receiving reliable, instant notifications on both desktop software and mobile apps. As an additional feature of the Ajax alarm system, up to 100 IP cameras or video recorder channels can be added through the mobile app to view live video streams.

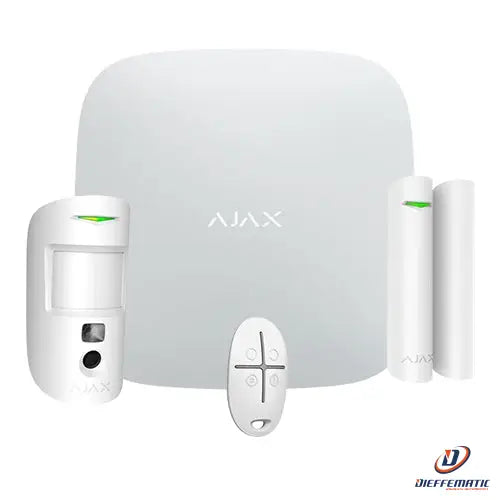

The kit includes the AJ-HUB2PLUS-W control panel, an AJ-MOTIONCAM-W detector with photo verification, an AJ-DOORPROTECT-W magnetic contact, and an AJ-SPACECONTROL-W remote control.
SPECIFICATIONS:
Control panel
Brand
Ajax
Security level
Grade 2
Model
AJ-HUB2PLUS-W
RF frequency
868 MHz. Jeweller wireless protocol
Internal security
Anti-opening tamper
Internal siren
Not available
Communication
Ethernet / Wi-Fi / Dual SIM 4G (LTE)
Maximum number of devices
200 (max. 10 sirens)
Video integration
Up to 100 IP cameras or video recorder channels
Number of users
Up to 200
Communication with ARC
Contact ID / SIA
Compatibility
NOT compatible with ocBridge and uartBridge
Housing material
ABS plastic
Power supply
AC 110~250 V, 50/60 Hz
Backup battery
Battery life up to 15 hours
Operating temperature
+5° C ~ 40° C
Dimensions
163 (L) x 163 (H) x 36 (H) mm
PIRCAM
Model
AJ-MOTIONCAM-W
Technology
Volumetric PIR with camera
Security level
Grade 2
PIR lens
24 zones and 6 floors
Detection range
12 m / H: 88.5° / V: 80° / Installation height 2.4 m
Frequency
868 MHz Jeweller and Wings (image transmission)
Transmission range
? 1700 m in open space
Pet immunity
? 20 kg, ? 50 cm
Anti-masking
Not available
Sensitivity
Adjustable. 3 levels (low, medium, and high)
Image resolution
Up to VGA (640 x 480)
Number of images
Up to 5 images per detection
Image transmission
Images sent and received in less than a minute
Infrared illumination
IR for night mode
LED indication
Alarm, tamper, signal
Battery
2 CR123A 3.0 V batteries (lifespan up to 4 years)
Compatibility
AJ-HUB2-W/B
Operating temperature
0° C ~ 40° C
Housing material
ABS plastic
Dimensions (without bracket)
135 (L) x 70 (W) x 60 (D) mm
Magnetic contact
Model
AJ-DOORPROTECT-W
Security level
Grade 2
Transmission range
? 2000 m in open space
Frequency
868 MHz
Battery
1 CR123A 3.0 V battery (approximate lifespan: 7 years)
Housing material
ABS plastic
Dimensions
90 mm (L) x 20 (Ø) mm
Remote control
Model
AJ-SPACECONTROL-W
Power supply
1 3 V CR2032 battery
Transmission range
? 1000 m in open space
Frequency
868 MHz
Battery
1 CR123A 3.0 V battery (approximate lifespan: 5 years)
Operating temperature
-20° C ~ 50° C
Housing material
ABS plastic
Dimensions
65 (L) x 37 (W) x 10 (D) mm
CONTENTS:
• AJ-HUB2PLUS-W control panel
• AJ-MOTIONCAM-W detector with photo verification
• AJ-DOORPROTECT-W magnetic door/window contact
• AJ-SPACECONTROL-W remote control
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Compatibility table of Ajax devices with control panels
Ajax Accessories Compatibility with Hubs and ReXs
Quick Guide to Safire Camera Integration (P2P + RTSP)
Step-by-step Ajax HUB setup
Ajax PRO Desktop
Ajax Spaces guide
24-month warranty
