Description
Professional alarm kit
Mod. AJ-STARTERKIT-CAM-B
SKU: AJ-STARTERKIT-CAM-B
• Professional alarm kit
• Grade 2 certified
• Ethernet communication and dual GPRS SIM
• Wireless 868 MHz Jeweller and Wings
• Ajax HUB 2, 1 PIRCAM
• 1 magnetic contact and 1 remote control
DESCRIPTION:
Professional AJAX anti-intrusion alarm system with two-way wireless communication.
Easy to connect and highly reliable thanks to its advanced Jeweller protocol with high-security AES encryption. The exclusive intelligent instant monitoring system detects signal jamming by identifying a specific period of inactivity and, in turn, reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open spaces. It also includes features that simplify installation, such as the Smart-Bracket and easy connection of detectors to the alarm system.
Supports up to 100 wireless zones, with the option to group these devices into up to 9 different groups, which can be armed, partially armed or disarmed. These Ajax wireless devices offer several possible configurations, such as 24-hour zones or zones with entry or exit delay.
The AJ-HUB2-B panel has an AC 110-250 V power input and a rechargeable backup battery with a runtime of up to 16 hours. This control panel incorporates the Wings radio protocol to receive images from the AJ-MOTIONCAM-B photo-verification detector.
Ethernet communication is the main advantage for remote access for both users and installers, as it allows connections via the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end users) and AJAX PRO: Tool for Engineers (professionals). These applications can be used to configure the entire system, manage users and their permissions, add devices, group them into zones and modify their settings. The cloud supports dynamic IP without requiring port forwarding.
Ajax users will enjoy numerous benefits, receiving reliable, instant notifications on both desktop software and mobile apps. As an additional feature of the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added via the mobile app to view live video streams.
The kit includes the AJ-HUB2-B control panel, an AJ-MOTIONCAM-B motion detector with photo verification, an AJ-DOORPROTECT-B magnetic contact, and an AJ-SPACECONTROL-B remote control.
SPECIFICATIONS:
Control panel
Brand
Ajax
Security level
Grade 2
Model
AJ-HUB2-B
RF frequency
868 MHz. Jeweller wireless protocol
Internal security
Anti-opening tamper
Internal siren
Not available
Communication
Ethernet / Dual 2G SIM (GPRS)
Maximum number of devices
100 (max. 10 sirens)
Video integration
Up to 25 IP cameras or video recorder channels
Number of users
Up to 50
Communication with ARC
Contact ID / SIA
Compatibility
NOT compatible with ocBridge and uartBridge
Housing material
ABS plastic
Power supply
AC 110~250 V, 50/60 Hz
Backup battery
Up to 16 hours of operation
Operating temperature
+5° C ~ 40° C
Dimensions
163 (L) x 163 (H) x 36 (H) mm
PIR camera
Model
AJ-MOTIONCAM-B
Technology
Volumetric PIR detector with camera
Security level
Grade 2
PIR lens
24 zones and 6 floors
Detection range
12 m / H: 88.5° / V: 80° / Installation height 2.4 m
Frequency
868 MHz Jeweller and Wings (image transmission)
Transmission distance
? 1700 m in open space
Pet immune
? 20 kg, ? 50 cm
Anti-masking
Not available
Sensitivity
Adjustable. 3 levels (low, medium, and high)
Image resolution
Up to VGA (640 x 480)
Number of images
Up to 5 images per detection
Image transmission
Sending and receiving images in under one minute
Infrared illumination
IR for night mode
LED indication
Alarm, tamper, signal
Battery
2 CR123A 3.0 V batteries (up to 4-year life)
Compatibility
AJ-HUB2-W/B
Operating temperature
0° C ~ 40° C
Housing material
ABS plastic
Dimensions (without bracket)
135 (L) x 70 (W) x 60 (D) mm
Magnetic contact
Model
AJ-DOORPROTECT-B
Security level
Grade 2
Transmission distance
? 2000 m in open space
Frequency
868 MHz
Battery
1 CR123A 3.0 V battery (approx. 7-year life)
Housing material
ABS plastic
Dimensions
90 mm (D) x 20 (Ø) mm
Remote control
Model
AJ-SPACECONTROL-B
Transmission distance
? 1000 m in open space
Frequency
868 MHz
Battery
1 CR2032 3.0 V battery (approx. 5-year life)
Operating temperature
-20° C ~ 50° C
Housing material
ABS plastic
Dimensions
65 (L) x 37 (W) x 10 (D) mm

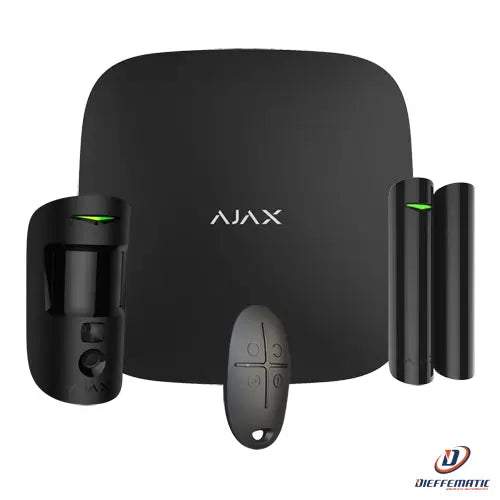

CONTENTS:
• AJ-HUB2-B control panel
• AJ-MOTIONCAM-B motion detector with photo verification
• AJ-DOORPROTECT-B magnetic door/window contact
• AJ-SPACECONTROL-B remote control
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Compatibility table of Ajax devices with control panels
Compatibility of Ajax accessories with Hubs and ReXs
Safire Camera Integration Quick Guide (P2P + RTSP)
Step-by-step Ajax HUB setup
Ajax PRO Desktop
Ajax Spaces Guide
24-month warranty
