Description
Professional alarm kit
Mod. AJ-STARTERKIT-CAM-4G-W
SKU: AJ-STARTERKIT-CAM-4G-W
• Professional alarm kit
• Grade 2 certified
• Ethernet and dual SIM 4G (LTE) communication
• Wireless 868 MHz Jeweller and Wings
• Ajax HUB 2, 1 PIRCAM
• 1 magnetic contact and 1 remote control
DESCRIPTION:
Professional AJAX wireless, bidirectional anti-intrusion alarm system.
Easy to connect and highly reliable thanks to its advanced Jeweller protocol with high-security AES encryption. The exclusive intelligent, real-time monitoring system detects signal jamming by identifying a specific period of inactivity. It also reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open space. It also includes features that simplify installation, such as the Smart-Bracket and easy connection of detectors to the alarm system.
Supports up to 100 wireless zones, allowing these devices to be grouped into up to 9 different groups, which can be armed, partially armed or disarmed. These Ajax wireless peripherals offer several possible configurations, such as a 24-hour zone or a zone with an entry or exit delay.
The AJ-HUB2-4G-W panel has an AC 110-250 V power input and a rechargeable backup battery with a runtime of up to 16 hours. This control panel incorporates the Wings wireless protocol to receive images from the AJ-MOTIONCAM-W photo-verification detector.
Ethernet and 4G connectivity offer the main advantage of remote access for both users and installers, who can connect via the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end users) and AJAX PRO : Tool for Engineers (professionals). These apps allow you to configure the entire system, manage users and their permissions, add devices, group them into zones and modify their settings. The cloud supports dynamic IP addresses without requiring port forwarding.
Ajax users enjoy numerous benefits, receiving reliable, instant notifications on both desktop software and mobile apps. As an additional feature of the Ajax alarm system, up to 25 IP cameras or video recorder channels can be added from the mobile app to view live video streams.
The kit includes the AJ-HUB2-4G-W control panel, an AJ-MOTIONCAM-W motion detector with photo verification, an AJ-DOORPROTECT-W magnetic contact, and an AJ-SPACECONTROL-W remote control.
SPECIFICATIONS:
Control Panel
Brand
Ajax
Security level
Grade 2
Model
AJ-HUB2-4G-W
RF frequency
868 MHz. Jeweller wireless protocol
Internal security
Anti-opening tamper
Internal siren
Not available
Communication
Ethernet / Dual SIM 4G (LTE)
Maximum number of devices
100 (max. 10 sirens)
Video integration
Up to 25 IP cameras or video recorder channels
Number of users
Up to 50
Communication with ARC
Contact ID / SIA
Compatibility
NOT compatible with ocBridge and uartBridge
Housing material
ABS plastic
Power supply
AC 110~250 V, 50/60 Hz
Backup battery
Up to 16 hours' operating time
Operating temperature
+5° C ~ 40° C
Dimensions
163 (L) x 163 (H) x 36 (H) mm
PIR camera
Model
AJ-MOTIONCAM-W
Technology
Volumetric PIR detector with camera
Security level
Grade 2
PIR lens
24 zones and 6 floors
Detection range
12 m / H: 88.5° / V: 80° / Installation height 2.4 m
Frequency
868 MHz Jeweller and Wings (image transmission)
Transmission range
? 1700 m in open space
Pet immune
? 20 kg, ? 50 cm
Anti-masking
Not available
Sensitivity
Adjustable. 3 levels (low, medium and high)
Image resolution
Up to VGA (640 x 480)
Number of images
Up to 5 images per detection
Image transmission
Sending and receiving images in less than a minute
Infrared illumination
IR for night mode
LED indication
Alarm, tamper, signal
Battery
2 CR123A 3.0 V batteries (up to 4 years' lifespan)
Compatibility
AJ-HUB2-W/B
Operating temperature
0° C ~ 40° C
Housing material
ABS plastic
Dimensions (without bracket)
135 (L) x 70 (W) x 60 (D) mm
Magnetic contact
Model
AJ-DOORPROTECT-W
Security level
Grade 2
Transmission range
? 2000 m in open space
Frequency
868 MHz
Battery
1 CR123A 3.0 V battery (approximate lifespan 7 years)
Housing material
ABS plastic
Dimensions
90 mm (L) x 20 (Ø) mm
Remote control
Model
AJ-SPACECONTROL-W
Transmission range
? 1000 m in open space
Frequency
868 MHz
Battery
1 CR2032 3.0 V battery (approximate lifespan 5 years)
Operating temperature
-20° C ~ 50° C
Housing material
ABS plastic
Dimensions
65 (L) x 37 (W) x 10 (D) mm

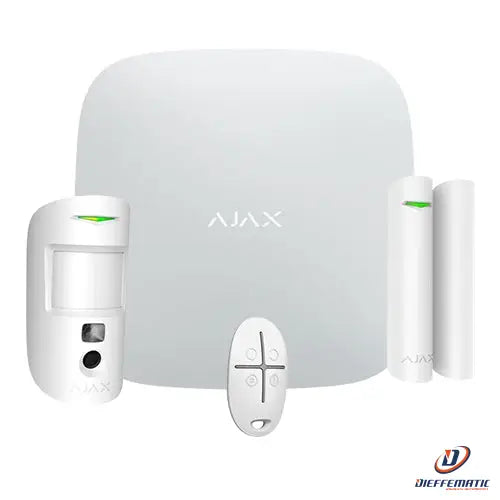

CONTENTS:
• AJ-HUB2-4G-W control panel
• AJ-MOTIONCAM-W motion detector with photo verification
• AJ-DOORPROTECT-W magnetic door/window contact
• AJ-SPACECONTROL-W remote control
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
Compatibility table for Ajax devices with control panels
Compatibility of Ajax accessories with Hubs and ReXs
Safire Camera Integration Quick Guide (P2P + RTSP)
Step-by-step Ajax HUB setup
Ajax PRO Desktop
Ajax Spaces guide
24-month warranty
