Shipping
Shipping in 5-10 business days
Description
Wireless expansion of wired zones

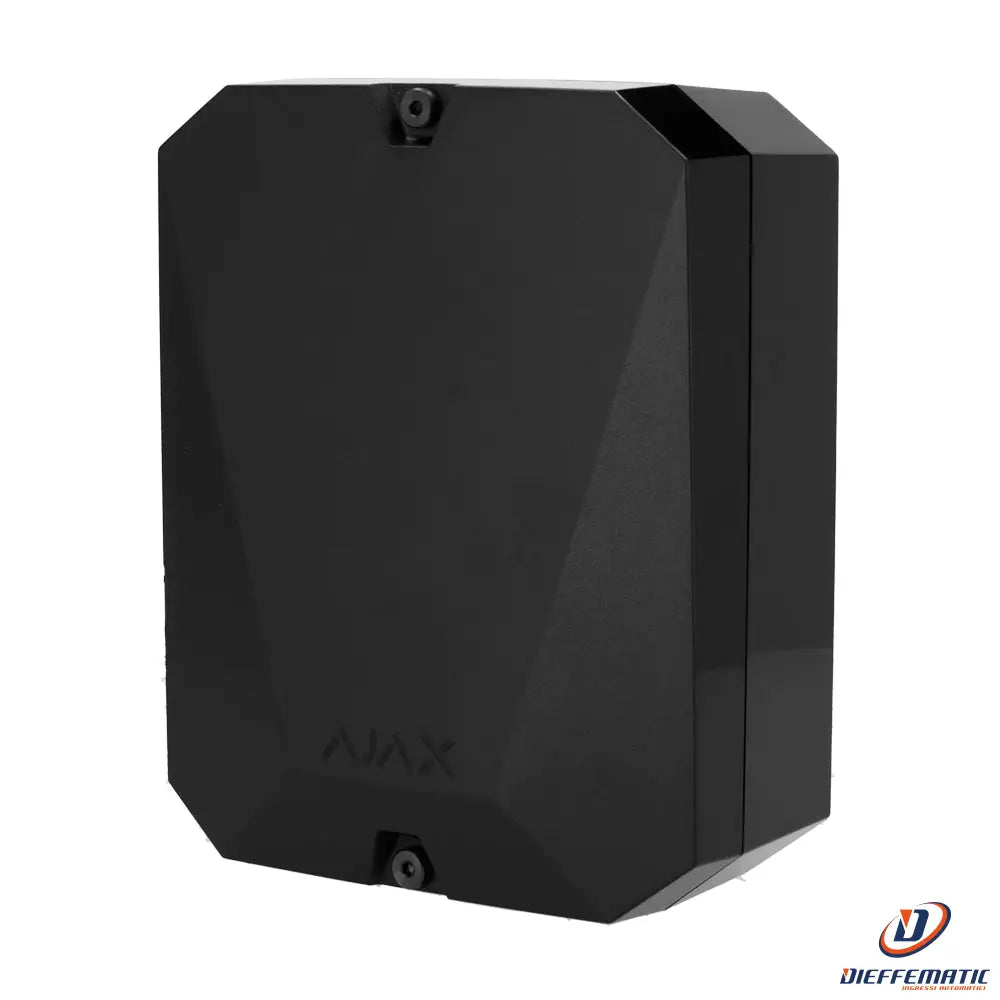

Mod. AJ-MULTITRANSMITTER-3EOL-B
SKU: AJ-MULTITRANSMITTER-3EOL-B
Wireless expansion of wired zones
• Wireless 868 MHz Jeweller
• Up to 18 wired alarm and tamper inputs
• Configurable NC, NO, EOL, 2EOL, 3EOL alarm
• Dual anti-opening tamper
• Dual 12 V / 1 A power output
DESCRIPTION:
• Ajax
Wireless expansion of wired zones
• Wireless 868 MHz Jeweller
• Two-way
• Internal antenna range of 2000 m in open space
• 18 wired alarm and tamper inputs
• NO, NC, EOL, 2EOL, 3EOL alarm inputs
• Jamming detection
• Anti-opening tamper
• 12 V / 1 A power output
• 220 VAC power supply and 4 or 7 Ah backup battery (not included)
• Compatible with third-party detectors with wired alarm output
• 3EOL function compatibility with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus
• Black
SPECIFICATIONS:
Brand
Ajax
Frequency
868 MHz Jeweller
Transmission range
? 2000 m in open space
Anti-jamming detection
Available
Wired inputs
Up to 18 (Intrusion, Fire, Medical emergency, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Custom)
Tamper input
NC: Normally Closed
Alarm inputs
NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
EOL end-of-line resistor
From 1 k? to 15 k? in increments of 100 ?
Cable length
Up to 400 metres
Anti-opening tamper
Front and rear
Power output
Two 12 V / 1 A outputs (total) for wired detectors
Compatibility
Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
3EOL function compatibility
Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
Power supply
AC 110~250 V, 50/60 Hz
Backup battery
12 V / 4 or 7 Ah battery (not included)
Advanced functions
KeyArm Zone
Operating temperature
-10 °C ~ 40 °C
Backup battery dimensions
150 (H) x 64 (W) x 94 (L) mm
Dimensions
238 (H) x 192 (W) x 100 (L) mm
Colour
Black
CONTENTS:
• Wireless Multitransmitter
• Instruction manual
• Mounting material
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
MAN-IT-MULTITRANSMITTER-3EOL
Compatibility table of Ajax devices with control panels
Quick Guide to Safire Camera Integration (P2P + RTSP)
Step-by-step Ajax HUB configuration
Ajax PRO Desktop
Ajax Spaces Guide
24-month warranty
