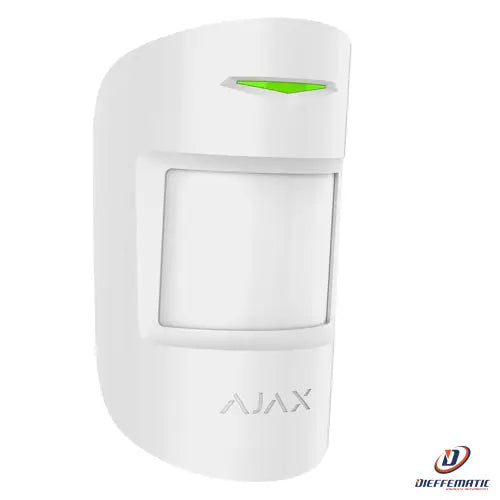

Ajax Aj-Motionprotect-W Indoor PIR Detector

Indoor PIR detector

Model AJ-MOTIONPROTECT-W

SKU: AJ-MOTIONPROTECT-W

PIR detector

• Pet immunity

• Grade 2 certified

• Bidirectional infrared PIR

• Wireless 868 MHz Jeweller

• Detection range up to 15 m


DESCRIPTION:

• Ajax

• Pet-immune volumetric PIR detector

• Bidirectional

• Grade 2 certified

• Wireless 868 MHz Jeweller

• Internal antenna range in open field: 1700 m

• Motion detection indicator

• Detection: Range 12 m (medium sensitivity), 15 m (high sensitivity) / H: 88.5° / V: 80°

• Anti-opening tamper

• Pet immunity: ? 20 kg, ? 50 cm

• Power supply: 1 CR123A 3.0 V battery (estimated battery life: 7 years)

• Indoor use

• Includes bracket

• White color


SPECIFICATIONS:

Brand
Ajax

Technology
Volumetric PIR

security level
Grade 2

PIR lens
24 zones and 6 floors

Detection range
12 m (medium sensitivity)

Maximum detection range
15 m (high sensitivity)

Detection range
12 m / H: 88.5° / V: 80° / Installation height 2.4 m

Frequency
868 MHz Jeweller

Transmission range
? 1700 m in open space

Pet immunity
? 20 kg, ? 50 cm

Anti-masking
Not available

Sensitivity
Adjustable. 3 levels (low, medium, and high)

LED indication
Alarm, tamper, signal

Battery
1 CR123A 3.0 V battery (approximate battery life: 7 years)

Operating temperature
0° C ~ 50° C

Housing material
ABS plastic

Dimensions (without bracket)
110 (H) x 65 (W) x 50 (D) mm

Color
White


CONTENTS:

Indoor PIR detector

• Instruction manual

• Mounting materials
