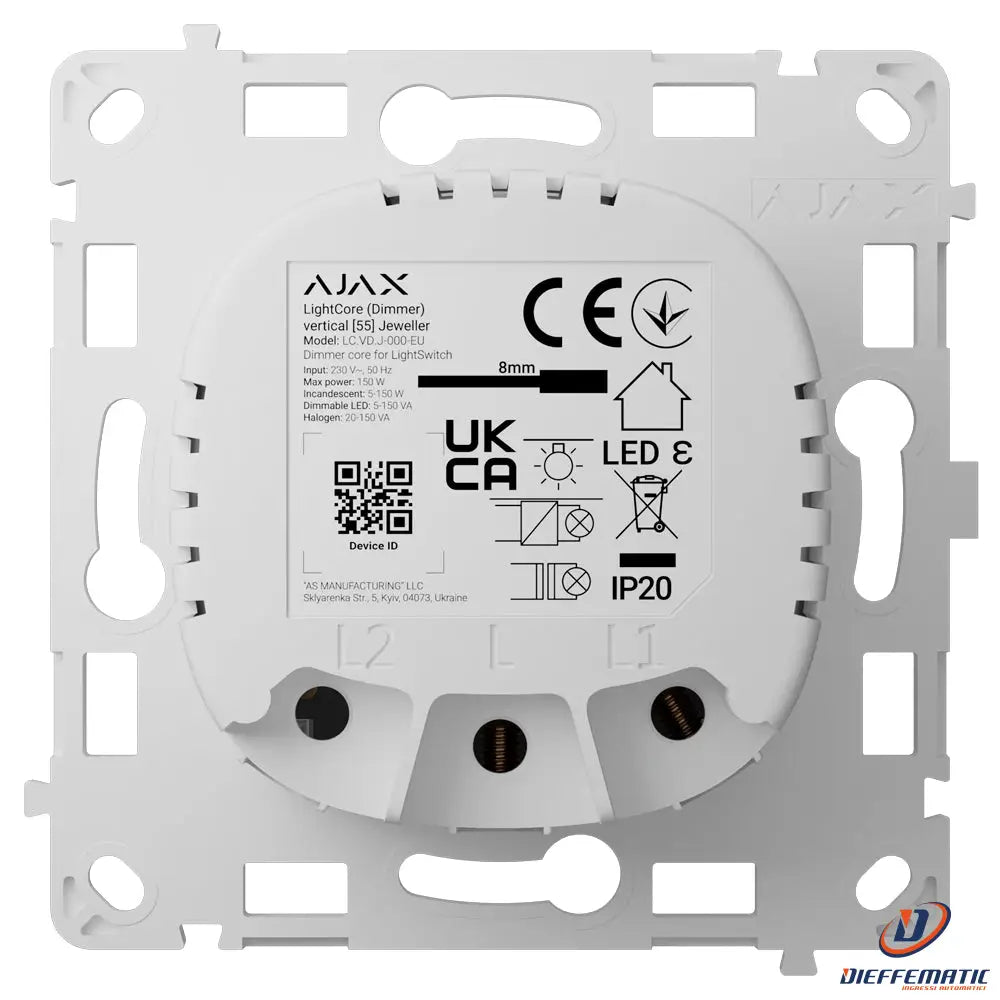

Ajax Aj-Lightcore-Dimmer-Vert Dimmable Smart Switch Relay

Dimmable smart switch relay

Mod. AJ-LIGHTCORE-DIMMER-VERT

SKU: AJ-LIGHTCORE-DIMMER-VERT

• Dimmable smart switch relay

• Wireless 868 MHz Jeweller

• Communication range up to 900 m

• 230 V AC 50 Hz power supply

• No neutral wire required

• Ajax - LightSwitch LightCore (Dimmer) Vertical


DESCRIPTION:

• Ajax

Vertical dimmable smart switch relay

• Bidirectional

• Wireless 868 MHz Jeweller

• Radio communication range 900 m

• 230 ~ V AC power supply

• No neutral wire required for operation

• Activated by moving your hand within 15 mm of the touch panel


SPECIFICATIONS:

Brand
Ajax - LightSwitch LightCore (Dimmer) Vertical

Function
Vertical dimmable smart switch relay

Bulb compatibility
Dimmable incandescent bulb 8-150 VA
Dimmable LED 8-150 VA
Dimmable halogen bulb 20-150 VA
Lower-power devices: Add AJ-BYPASS-DIMMER

Brightness
Memory of previous brightness level with anti-flicker

Transmission range
Up to 900 m in open space

Frequency
868 MHz Jeweller

Power supply input
AC 230 V / 50 Hz

Average consumption
250 mW

Switched device power
from 8 VA to 150 VA

Current and temperature protection
0.75 A / +60°C

Compatibility
Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid

Use
Indoor

Operating temperature
-10° C ~ 40° C

Dimensions
74.2 (L) x 72.6 (W) x 31.7 (H) mm

Weight
45 g

Terminals
1 terminal for the live power supply wire and 1 terminal for the power supply wire of a lighting device or another load (no neutral wire)


CONTENTS:

Vertical dimmable smart switch relay

• Installation kit

• Instructions for use

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

LightSwitch (Dimmer) User Manual IT

Ajax Spaces Guide

24-month warranty
