Description

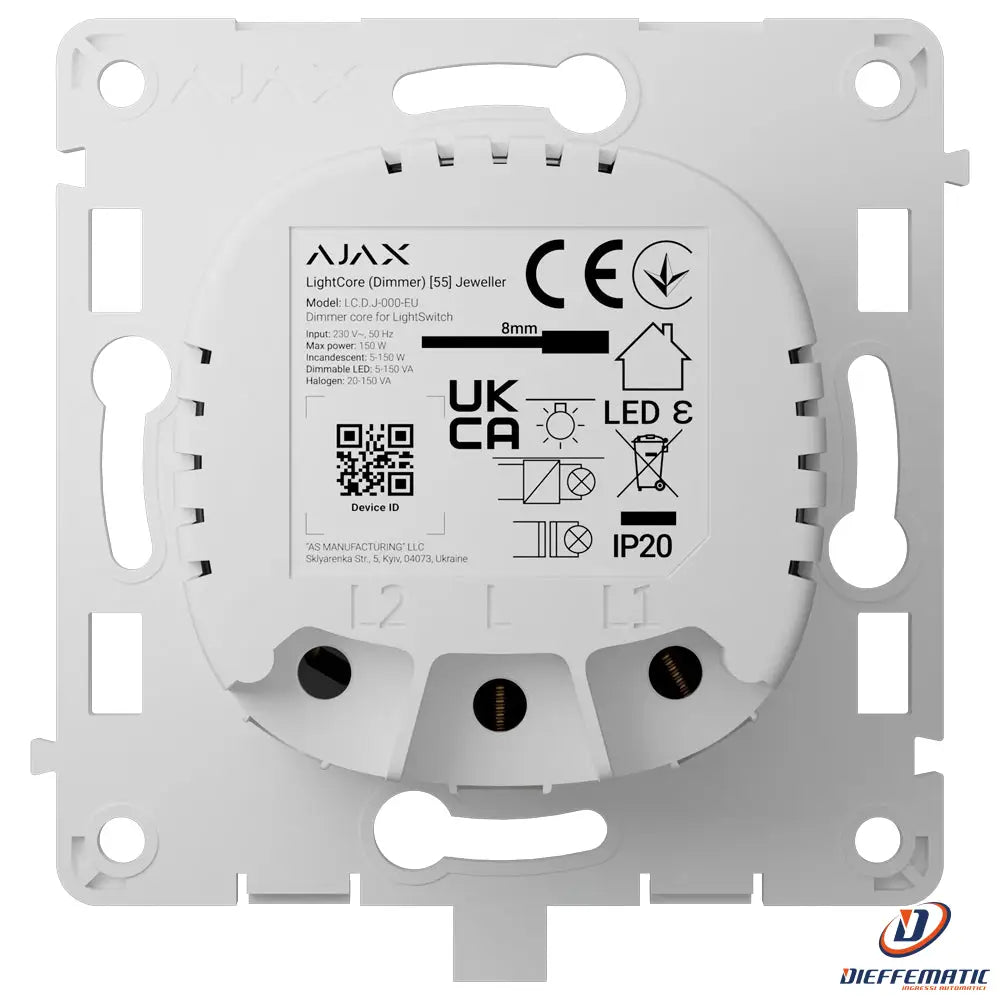

Dimmer for smart switch
Model AJ-LIGHTCORE-DIMMER
SKU: AJ-LIGHTCORE-DIMMER
• Dimmer for smart switch
• Wireless 868 MHz Jeweller
• Communication range up to 900 m
• 230 V AC 50 Hz power supply
• No neutral wire required
• Ajax - LightSwitch LightCore (Dimmer)
DESCRIPTION:
• Ajax
• Dimmer for smart switch
• Bidirectional
• Wireless 868 MHz Jeweller
• Wireless communication range: 900 m
• 230 ~ V AC power supply
• No neutral wire required for operation
• Activated by bringing a hand within 15 mm of the touch panel
SPECIFICATIONS:
Brand
Ajax - LightSwitch LightCore (Dimmer)
Function
Dimmer for smart switch
Bulb compatibility
Dimmable incandescent bulb 8-150 VA
Dimmable LED 8-150 VA
Dimmable halogen bulb 20-150 VA
Lower-power devices: Add AJ-BYPASS-DIMMER
Brightness
Memory of previous brightness level with anti-flicker
Transmission distance
Up to 900 m in open space
Frequency
868 MHz Jeweller
Power supply input
AC 230 V / 50 Hz
Average consumption
250 mW
Switched device power
from 8 VA to 150 VA
Current and temperature protection
0.75 A / +60°C
Compatibility
Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid
Use
Indoor
Operating temp.
-10° C ~ 40° C
Dimensions
76.3 (L) x 72.3 (W) x 29.2 (H) mm
Weight
46 g
Terminals
1 terminal for the live power cable and 1 terminal for the power cable of a lighting device or another load (no neutral wire)
CONTENTS:
• Dimmer for smart switch
• Installation kit
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
LightSwitch (Dimmer) User Manual EN
Ajax Spaces Guide
24-month warranty
