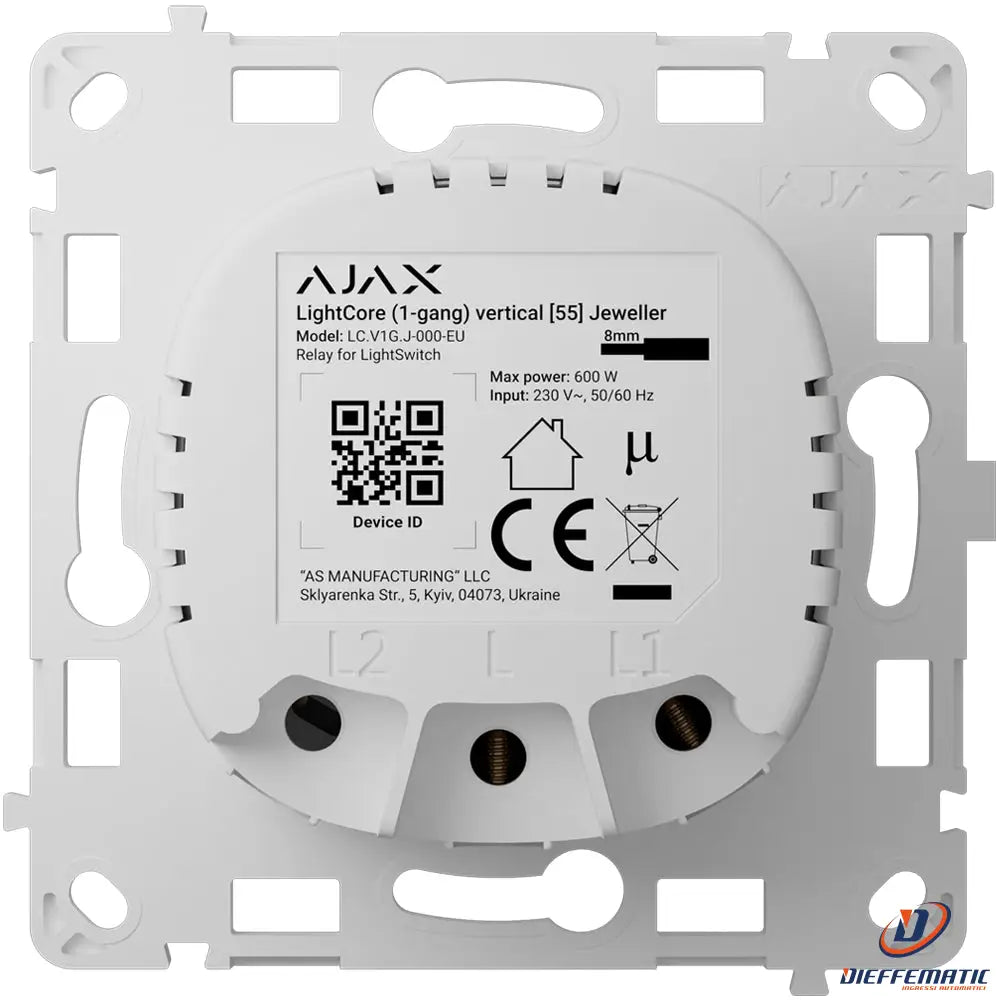

Ajax Aj-Lightcore-1G-Vert Relay for Vertical Single Smart Switch

Vertical single smart switch relay

Mod. AJ-LIGHTCORE-1G-VERT

SKU: AJ-LIGHTCORE-1G-VERT

• Vertical single smart switch relay

• Wireless 868 MHz Jeweller

• Communication range up to 1100 m

• 230 V AC 50 Hz power supply

• No neutral wire required

• Ajax - LightSwitch LightCore Vertical (1 Gang)


DESCRIPTION:

• Ajax

• Vertical single smart switch relay

• Bidirectional

• Wireless 868 MHz Jeweller

• 1100 m radio communication range

• 230 ~ V AC power supply

• Does not require a neutral wire to operate

• Activated by bringing your hand within 15 mm of the touch panel


SPECIFICATIONS:

Brand
Ajax - LightSwitch LightCore Vertical (1 Gang)

Function
Vertical single smart switch relay

Transmission distance
Up to 1100 m in open space

Frequency
868 MHz Jeweller

Power supply input
AC 230 V / 50 Hz

Average consumption
200 mW

Switched device power
from 5W to 600 W

Low-power devices (< 5W)
Capacitor kit installation

Current and temperature protection
2.6 A / +60°C

Compatibility
Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid

Use
Indoor

Operating temperature
-10° C ~ 40° C

Dimensions
76.3 (L) x 72.3 (W) x 29.2 (D) mm

Weight
48.34 g

Terminals
1 terminal for the phase power supply wire and 1 terminal for the power supply wire of a lighting device or another load (without a neutral wire)


CONTENTS:

• Vertical single smart switch relay

• Installation kit (includes a capacitor)

• User instructions

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-LightSwitch Jeweller

Ajax Spaces Guide

24-month warranty
