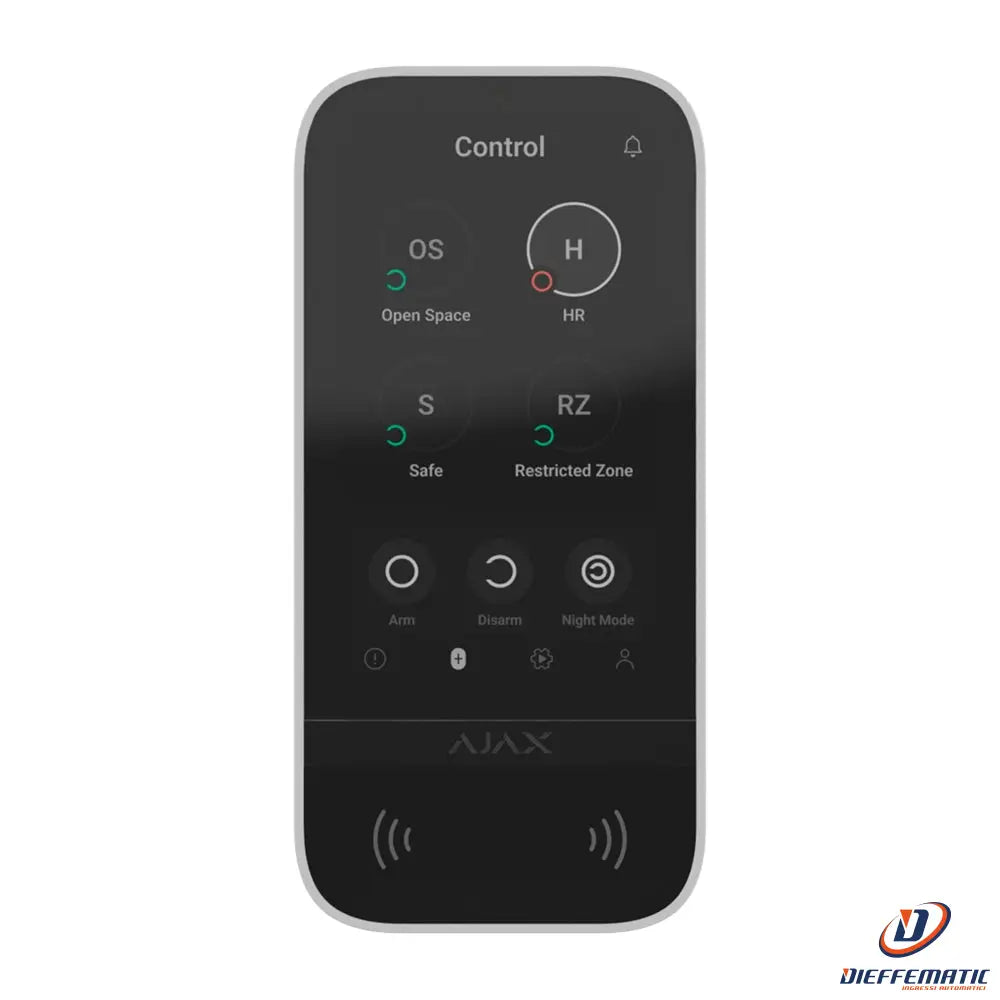

Ajax Aj-Keypadtouchscreen-W Keypad with IPS Touchscreen and RFID Reader

Keypad with IPS touchscreen and RFID reader

Model AJ-KEYPADTOUCHSCREEN-W

SKU: AJ-KEYPADTOUCHSCREEN-W

• Keypad with IPS touchscreen and RFID reader

• Arm/disarm the entire system or groups

• Automation scenario control

• Authentication: codes, RFID reader or Bluetooth

• Power supply: 6 AA 1.5 V batteries or 12VDC

• Grade 2 certified


DESCRIPTION:

• Ajax

Keypad with IPS touchscreen and Ajax RFID card/tag reader

• Grade 2 certified

• Bidirectional

• Wireless 868 MHz Jeweller

• Internal antenna range in open space up to 1700 m

• Anti-opening tamper and screw

• Enables arming/disarming of the entire system or groups, and control of automation scenarios

• Authentication via codes, RFID reader or Bluetooth

• Fault notifications and audible alerts for alarms or events

• LED indicator to display system status

• Power supply: 6 AA 1.5V lithium batteries or 12VDC

• Indoor use

• Includes mounting bracket

• White


SPECIFICATIONS:

Brand
Ajax

Security level
Grade 2

Frequency
868 MHz Jeweller

Transmission range
? 1700 m in open space

Functions
- Arm/disarm the entire system
- Arm/disarm groups
- Automation scenario control (up to 6)

Authentication control
- Codes (keypad or user)
- RFID reader for Ajax key fobs and cards
- Mobile phone via Bluetooth

RFID technology
Mifare DESFire EV1, EV2 (ISO14443-A 13,56 MHz)

Power supply
2 options:
- 6 AA 1.5V lithium batteries with an approximate lifespan of 1.5 years.
- 12 VDC external power supply + batteries

External power supply operating voltage
10.5-14 VDC, up to 0.4 A

Panic button
Configurable:
- Panic
- Fire (silence alarm)
- Emergency assistance

Notifications
Sound notifications for:
- Delays
- Door opening
- Alarms
Instant fault notifications

Tamper protection
- Tamper
- Mounting screw
- Automatic lock in the event of unauthorized access

LED indicator
To indicate the status of the security mode

Screen
5-inch touchscreen IPS

Screen resolution
480 x 854 px

Interface mode
Day and night

Compatibility with control panels and range extenders
Compatible with Ajax Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), and ReX 2

Firmware update
Available. Remote OTA (over-the-air) updates

Available languages
English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.

Dimensions
172 (L) x 82 (W) x 26 (D) mm

Operating temperature
-10° C ~ 40° C

Weight
327 g

Housing material
ABS plastic

Color
White


CONTENTS:

• Wireless keypad

• Instruction manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-KEYPADTOUCHSCREEN

Compatibility table of Ajax devices with control panels

Quick Guide to Integrating Safire Cameras (P2P + RTSP)

Step-by-step Ajax Hub setup

Ajax PRO Desktop

Ajax Spaces Guide

24-month warranty
