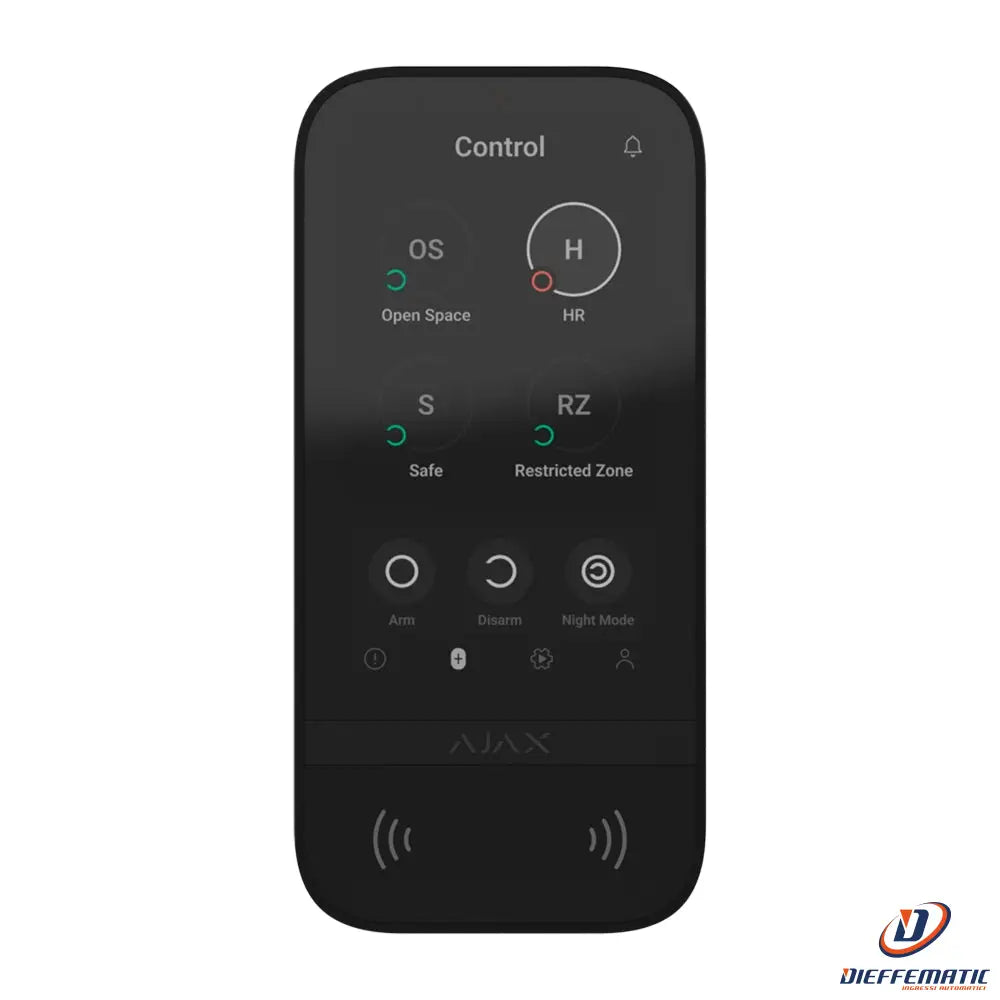

Ajax Aj-Keypadtouchscreen-B Keypad with IPS Touchscreen and RFID Reader

Keypad with IPS touchscreen and RFID reader

Model AJ-KEYPADTOUCHSCREEN-B

SKU: AJ-KEYPADTOUCHSCREEN-B

• Keypad with IPS touchscreen and RFID reader

• Full or group arming/disarming

• Automation scenario control

• Authentication: codes, RFID reader, or Bluetooth

• Powered by 6 AA 1.5 V batteries or 12VDC

• Grade 2 certified


DESCRIPTION:

• Ajax

Keypad with IPS touchscreen and Ajax RFID card/tag reader

• Grade 2 certified

• Bidirectional

• Wireless 868 MHz Jeweller

• Internal antenna range in open space up to 1700 m

• Anti-opening tamper and screw

• Supports full or group arming/disarming and automation scenario control

• Authentication control via codes, RFID reader, or Bluetooth

• Fault notifications and audible alerts for alarms or events

• LED indicator displays system status

• Powered by 6 AA 1.5V lithium batteries or 12VDC

• Indoor use

• Includes bracket

• Black


SPECIFICATIONS:

Brand
Ajax

Security grade
Grade 2

Frequency
868 MHz Jeweller

Transmission range
? 1700 m in open space

Functions
- Full system arming/disarming
- Group arming/disarming
- Automation scenario control (up to 6)

Authentication control
- Codes (keypad or user)
- RFID reader for Ajax key fobs and cards
- Mobile phone via Bluetooth

RFID technology
Mifare DESFire EV1, EV2 (ISO14443-A 13,56 MHz)

Power supply
2 options:
- 6 AA 1.5V lithium batteries with an approximate service life of 1.5 years.
- 12 VDC external power supply + batteries

External power supply operating voltage
10.5-14 VDC, up to 0.4 A

Panic button
Configurable:
- Panic
- Fire (silence alarm)
- Urgent assistance

Notifications
Audible notifications for:
- Delays
- Door opening
- Alarms
Instant fault notifications

Anti-sabotage
- Tamper
- Fixing screw
- Automatic lock in the event of unauthorised access

LED indicator
To indicate the security mode status

Screen
5-inch IPS touchscreen

Screen resolution
480 x 854 px

Interface mode
Day and night

Compatibility with control panels and range extenders
Compatible with Ajax Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G) and ReX 2

Firmware update
Available. Remote OTA (over-the-air) updates

Available languages
English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.

Dimensions
172 (L) x 82 (W) x 26 (D) mm

Operating temperature
-10° C ~ 40° C

Weight
327 g

Housing material
ABS plastic

Colour
Black


CONTENTS:

• Wireless keypad

• Instruction manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-KEYPADTOUCHSCREEN

Compatibility table of Ajax devices with control panels

Safire Camera Integration Quick Guide (P2P + RTSP)

Step-by-step Ajax HUB setup

Ajax PRO Desktop

Ajax Spaces Guide

24-month warranty
