Description

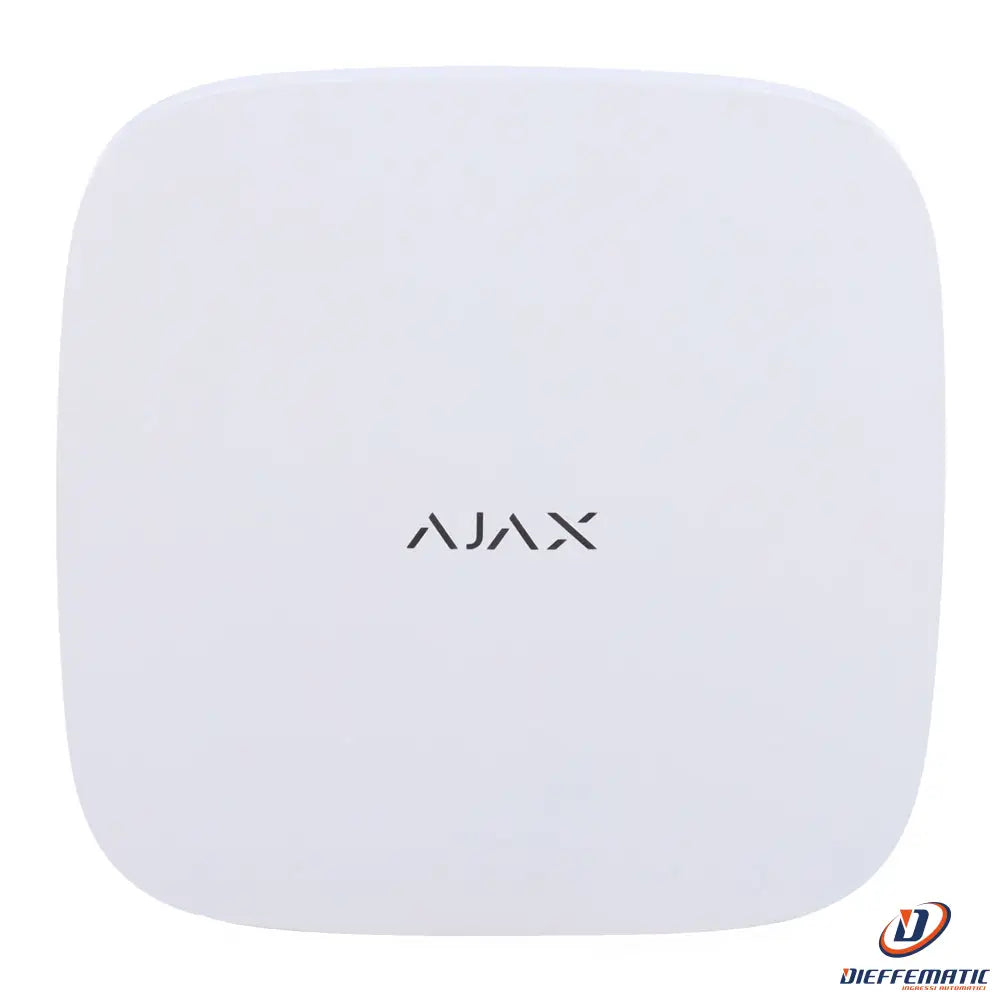

Grade 2 professional alarm control panel
Model AJ-HUB2-W
SKU: AJ-HUB2-W
• Grade 2 professional alarm control panel
• Ethernet and dual-SIM GPRS communication
• 868 MHz Jeweller and Wings wireless communication
• Up to 100 wireless devices
• 25 IP cameras or video recorder channels
• Mobile app and PC software
DESCRIPTION:
Wireless alarm system for professional residential and commercial installations. Communication via Ethernet and/or GPRS with dual SIM. Two-way communication with supervised detectors and accessories is carried out by radio frequency using the proprietary Jeweller protocol in the 868 MHz band, achieving Grade 2 certification.
The wireless connection is highly reliable thanks to the advanced Jeweller protocol with high-security AES encryption. Its exclusive, intelligent real-time monitoring system detects signal jamming by identifying a specific period of inactivity. It also reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open space. It also includes features that make installation easier, such as the Smart-Bracket and simple pairing of detectors with the alarm system.
It supports up to 100 wireless zones, allowing devices to be grouped into up to 9 different groups. Each group can be armed, partially armed, or disarmed. These Ajax wireless peripherals offer various configuration options, such as 24-hour zones and entry or exit delay zones.
The AJ-HUB2-W control panel has an AC 110-250 V power input and a rechargeable backup battery with a runtime of up to 16 hours.
Its main advantage for remote access is triple communication via Ethernet and dual GPRS SIM, for both users and installers. It allows connection through the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end users) and AJAX PRO: Tool for Engineers (professionals). These apps let you configure the entire system, manage users and their permissions, add devices, group them by zones, and modify their settings. The cloud is compatible with dynamic IP addresses without requiring port forwarding.
Ajax users benefit from reliable, instant notifications on both desktop software and mobile apps.
As an additional component of the Ajax alarm system, you can add up to 25 IP cameras or NVR channels via the mobile app to view live video streams.
SPECIFICATIONS:
Brand
AJAX
RF frequency
868 MHz. Jeweller and Wings radio protocol
Security level
Grade 2
Internal security
Anti-opening tamper
Internal siren
Not available
Communication
Ethernet / Dual 2G SIM (GPRS)
Maximum number of devices
100 (max. 10 sirens)
Video integration
Up to 25 IP cameras or NVR channels
Number of users
Up to 50
ARC communication
Contact ID / SIA
Compatibility
NOT compatible with ocBridge and uartBridge
Firmware update
Available. Remote OTA (over-the-air) updates
Housing material
ABS plastic
Power supply
AC 110~250 V, 50/60 Hz
Backup battery
Battery life up to 16 hours
Operating temperature
+5° C ~ 40° C
Dimensions
163 (W) x 163 (H) x 36 (H) mm
Color
White
CONTENTS:
• Control panel
• Power cable
• Ethernet cable
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
MAN-IT-HUB2
Compatibility table of Ajax devices with control panels
Compatibility of Ajax accessories with Hubs and ReXs
Ajax Spaces Guide
24-month warranty
