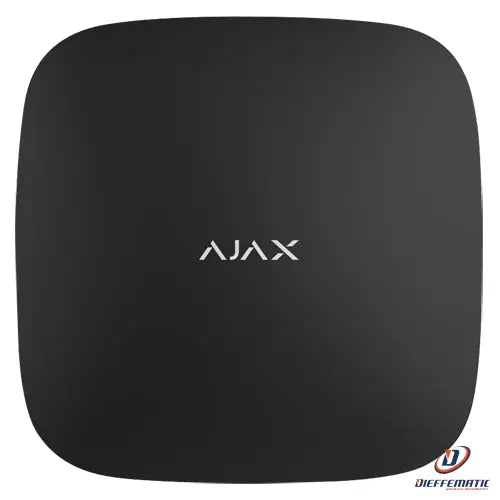

Ajax Aj-Hub2-B Grade 2 Professional Alarm Control Panel

Grade 2 professional alarm control panel

Mod. AJ-HUB2-B

SKU: AJ-HUB2-B

• Grade 2 professional alarm control panel

• Ethernet communication and dual-SIM GPRS

• Wireless 868 MHz Jeweller and Wings

• Up to 100 wireless devices

• 25 IP cameras or video recorder channels

• Mobile app and PC software


DESCRIPTION:

Wireless alarm system for professional residential and commercial installations. Communication via Ethernet and/or GPRS with dual SIM. Two-way communication with supervised detectors and accessories is carried out by radio frequency using the proprietary Jeweller protocol in the 868 MHz band, achieving Grade 2 certification.

The wireless connection is highly reliable thanks to the advanced Jeweller protocol with high-security AES encryption. Its unique, intelligent real-time monitoring system detects signal jamming by identifying a specific period of inactivity. It also reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open areas. It also includes features that simplify installation, such as the Smart-Bracket and easy connection of detectors to the alarm system.

It supports up to 100 wireless zones, allowing these devices to be grouped into up to 9 different groups. You can then arm, partially arm or disarm each group. These Ajax wireless peripherals can be configured in various ways, such as as a 24-hour zone or a zone with an entry or exit delay.

The AJ-HUB2-B panel has an AC 110-250 V power input and a rechargeable backup battery with a runtime of up to 16 hours.

Its main advantage for remote access, for both users and installers, is triple communication via Ethernet and dual GPRS SIM cards. This enables connections through the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end users) and AJAX PRO: Tool for Engineers (professionals). These apps can be used to configure the entire system, manage users and their permissions, add devices, group them into zones and modify their settings. The cloud supports dynamic IP addresses without requiring port forwarding.

Ajax users benefit from multiple advantages, receiving reliable, instant notifications on both desktop software and mobile apps.

As an add-on to the Ajax alarm system, up to 25 IP cameras or DVR channels can be added via the mobile app to view live video streams.


SPECIFICATIONS:

Brand
AJAX

RF frequency
868 MHz. Jeweller and Wings radio protocol

Security level
Grade 2

Internal security
Anti-opening tamper

Internal siren
Not available

Communication
Ethernet / Dual SIM 2G (GPRS)

Maximum number of devices
100 (max. 10 sirens)

Video integration
Up to 25 IP cameras or DVR channels

Number of users
Up to 50

ARC communication
Contact ID / SIA

Compatibility
NOT compatible with ocBridge and uartBridge

Firmware update
Available. Remote OTA (Over-the-air) updates

Housing material
ABS plastic

Power supply
AC 110~250 V, 50/60 Hz

Backup battery
Battery life up to 16 hours

Operating temperature
+5° C ~ 40° C

Dimensions
163 (W) x 163 (H) x 36 (H) mm

Colour
Black


CONTENTS:

• Control panel

• Power cable

• Ethernet cable

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

MAN-IT-HUB2

Compatibility table for Ajax devices and control panels

Compatibility of Ajax accessories with Hubs and ReXs

Ajax Spaces Guide

24-month warranty
