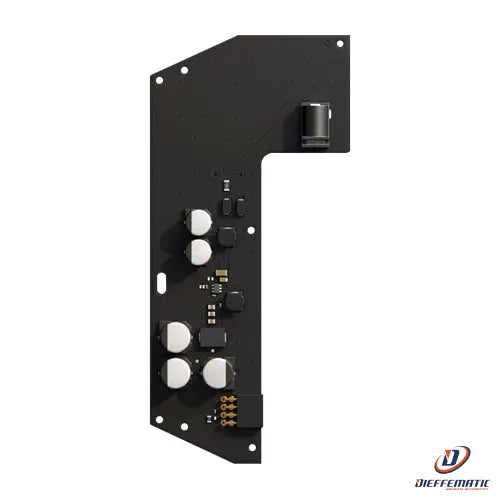

Ajax Aj-Dc12V-Pcb1 12 Vdc Power Supply Module

12 VDC power supply module

Mod. AJ-DC12V-PCB1

SKU: AJ-DC12V-PCB1

• 12 VDC power supply module

• Compatible with Ajax Hub, Hub Plus and ReX

• Input voltage 8~20 VDC

• Average consumption per hour 95 mA

• CON280 connector included


DESCRIPTION:

• Ajax

• 12 VDC power supply module for Ajax Hub, Hub Plus and ReX

• Input voltage 8~20 VDC

• Maximum required current 1 A

• Average consumption per hour 95 mA

• Easy installation after replacement in the panel board


SPECIFICATIONS:

Brand
Ajax

Compatibility
Ajax Hub, Hub Plus and ReX

Input voltage
8~20 VDC

Required current
1 A maximum

Output current
1.5 A

Average hourly consumption
95 mA

Dimensions
138 (H) x 64 (W) x 13 (L) mm


CONTENTS:

• 12 VDC power supply module for Ajax Hub, Hub Plus and ReX

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Compatibility table of Ajax devices with control panels

Quick Guide to Integrating Safire Cameras (P2P + RTSP)

Step-by-step Ajax HUB configuration

Ajax PRO Desktop

Ajax Spaces Guide

24-month warranty
