Description

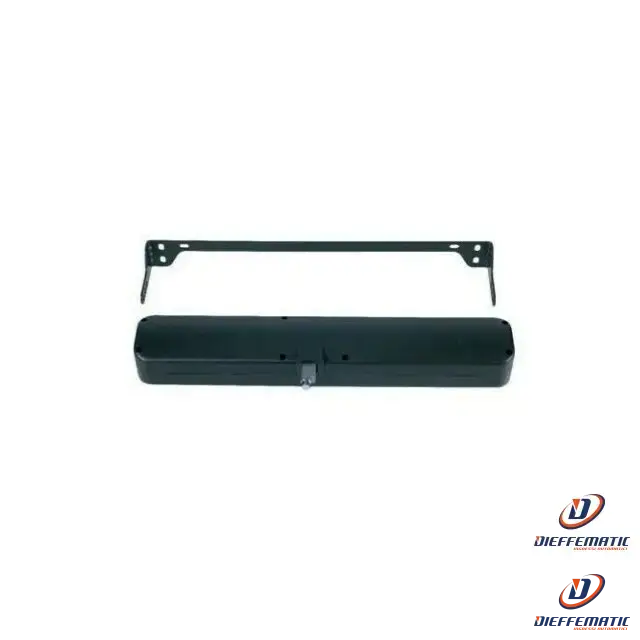

Window actuator
Micro KIT model
SKU: 2700810
Linear electric actuator with articulated chain movement contained inside the casing. Operation with 230V AC 50Hz power supply voltage.
Complies with the reference European Directives. Equipped with an electronic opening and closing limit switch system. Stroke selectable by magnet.
Can be connected in parallel. Available colors: black (N) - gray (G) - white (B).
230V AC 50Hz
Applicable to any type of overlap and height of the window thanks to the single tilting bracket which allows 6 different application positions.
Actuator body in Black - Gray - White plastic
KIT Brackets for application on top-hung and bottom-hung windows
VDE certified
Applications:
Top-hung windows
Top-hung windows
Pivot windows
Kit contents: Actuator + single tilting bracket + bracket for top-hung application + bracket for bottom-hung application with accessories
STROKE: max 400 mm
PUSH/TRACTION: max 250 N
POWER: 135W
PROTECTION DEGREE: IP 20
MIN. SPEED: approx. 20 mm/s
Black colour
SUPPORT BRACKET: Black
24 months warranty
