Description

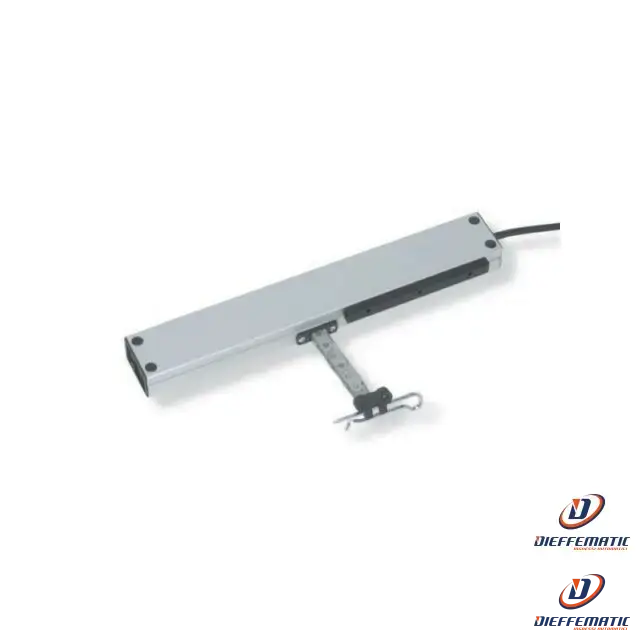

Actuator for windows and skylights
Micro S model
SKU: 2700567 REPLACED BY 2713806
Electric linear actuator with articulated chain contained inside the casing. Operation with 230V AC 50Hz or 24V DC power supply voltage.
Complies with the relevant European Directives. Equipped with an electronic limit switch system in opening and absorption in closing. Can be connected in parallel.
Available colors: silver anodized (A) - black anodized (N) - RAL 9003 (B).
230V AC 50Hz
Actuator body in Anodized Silver - Anodized Black - White RAL 9003 aluminium
Double link chain
Applications:
Top-hung windows
Top-hung windows
Pivot windows
Skylights
STROKE: 250 mm
PUSH/PULL: 200 N
POWER: 30W
PROTECTION DEGREE: IP 20
MIN. SPEED: approx. 10mm/s
Black colour
24 month warranty
