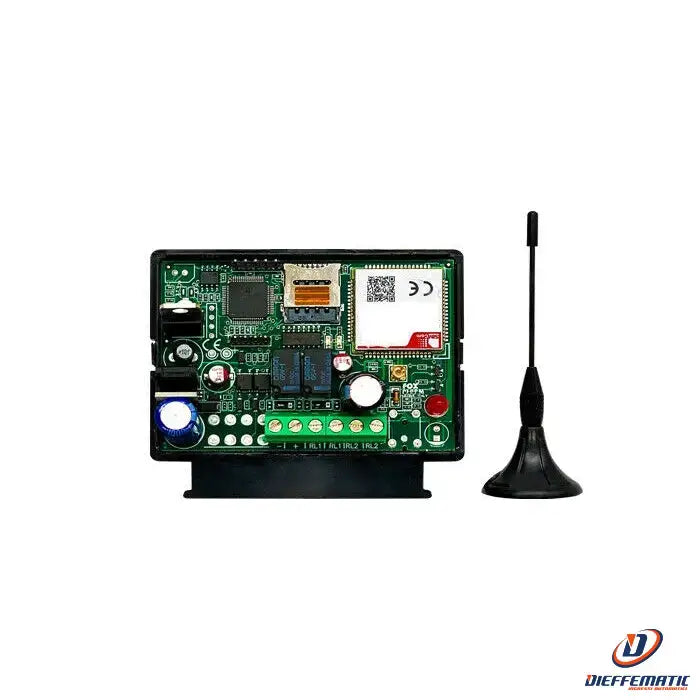

UNIVERSAL GSM MODULE DGSM-2A
2 RELAY OUTPUTS + 2 CONFIGURABLE INPUTS
GUARANTEED COMPATIBILITY WITH THE FOLLOWING NETWORK OPERATORS:
TIM – WIND – VODAFONE
Professional universal GSM module designed for remote control of gates, garage doors, automation systems, alarm systems, boilers and many other applications.
Thanks to its 2 relay outputs with volt-free contacts and 2 configurable inputs, the module makes it quick and easy to set up control and signalling systems over the GSM network.
Configuration is conveniently carried out using simple SMS commands, with no dedicated software required.
Mod. GSM-C
SKU: 1434/2
KEY FEATURES
Universal GSM module for automation systems, alarms and remote controls.
Universal 12/24 V power supply, for both AC and DC.
2 relay outputs with volt-free contacts, independently configurable.
Relay outputs with a maximum rating of 30 Vdc / 0.5 A.
Outputs configurable as timed or bistable.
2 configurable alarm inputs for connection to volt-free contacts.
Inputs configurable as NO (normally open) or NC (normally closed).
Gate opener function via phone call.
Alarm function with SMS notification and alert call.
Configuration of inputs, outputs and authorised numbers via SMS.
LEDs dedicated to displaying input status.
Red and green LEDs indicate the module's operating status.
Automatic periodic restart function (keep-alive) to prevent possible SIM/module lockups.
Antenna supplied separately.
GATE OPENER FUNCTION
The module can be used as a GSM gate opener.
When it receives a call/ring from a phone number previously stored in the SIM card's address book, the module activates output RL1.
The factory configuration provides:
RL1: pulse operation
Pulse duration: 3 seconds
The control can therefore be used to operate, for example, automatic gates, garage doors, electric locks and other compatible automation systems.
ALARM FUNCTION
The two inputs can be connected to devices equipped with a volt-free contact, such as:
sensors;
magnetic contacts;
pressure switches;
safety devices;
alarm systems;
contacts from automation systems;
other devices with a contact output.
When an input configured as an alarm is triggered, the module can:
send an alarm SMS to the enabled numbers;
make an immediate alert call.
Factory input configuration
IN1: normally open (NO)
IN2: normally closed (NC)
Input debounce: 1 second
The inputs can be configured using specific SMS commands.
CONFIGURABLE RELAY OUTPUTS
The module has 2 relay outputs, which can be used to control external devices via volt-free contacts.
The outputs can be configured for the intended application by selecting one of the following operating modes:
pulse/timed;
latching.
Factory configuration
RL1: pulse, 3-second duration
RL2: latching
Maximum relay contact rating: 30 Vdc / 0.5 A.
CONFIGURATION VIA SMS
The module is easy to configure using SMS commands.
The following can be managed and configured:
authorised telephone numbers;
IN1 and IN2 inputs;
input operating mode;
RL1 and RL2 outputs;
pulse or latching mode;
output timing;
control and alarm functions.
This solution allows the module to be adapted to numerous requirements without using software or a dedicated programmer.
APPLICATIONS
The DGSM-2A GSM module is suitable for numerous applications, including:
GSM gate opener
Opening and control of automatic gates
Remote control of gates and roller shutters
Remote automation
Alarm systems
Alarm notifications via SMS
Remote control of electrical devices
Boiler control
Industrial and residential automation
Monitoring of contacts and devices
Home automation and remote control applications
TECHNICAL SPECIFICATIONS
Technology: GSM/GPRS Quad-Band
GSM bands: 850 / 900 / 1800 / 1900 MHz
Compliance: GSM 2/2+
GSM class: Class 4: 2 W @ 850/900 MHz – Class 1: 1 W @ 1800/1900 MHz
Power supply: 12–24 Vac/Vdc ±10%
Current consumption at 12 Vdc: Max. 200 mA
Current consumption at 24 Vdc: Max. 100 mA
Inputs: 2 configurable inputs for volt-free contacts
IN1: Factory default: NO, 1 s debounce
IN2: Factory default: NC, 1 s debounce
Outputs: 2 relays with common contact
Relay rating: Max. 30 Vdc / 0.5 A
RL1: Factory default: pulse, 3 s
RL2: Factory default: latching
Operating temperature: -10 °C / +50 °C
Protection rating: IP20
Dimensions: 105 × 95 × 32 mm
COMPATIBLE ANTENNAS
Antennas are not included and must be purchased separately.
Available:
GSM01A – 90° whip antenna
GSM11 25 – antenna with bracket and 2.5 m cable
CONTENTS AND DOCUMENTATION
DGSM-2A GSM module
For correct installation and configuration, consult the manufacturer's instruction manual.
MANUFACTURER'S INSTRUCTION MANUAL
IMPORTANT
The SIM card used must be compatible with the GSM network supported by the device. Before installation, check that the telephone operator's service is available in the area of use.
