Description
Mini Magnetic Contact for Window or Frame Alarm, 5 Pieces, NC Reed Switch in Vacuum-Sealed Glass Capsule, 10 mm Operating Gap, Max. Voltage 100 V, Current 1 A, Housings with Mounting Holes, IP65, 4 Wires
Mod. ST-10MCMCFEPB
SKU: ST-10MCMCFEPB

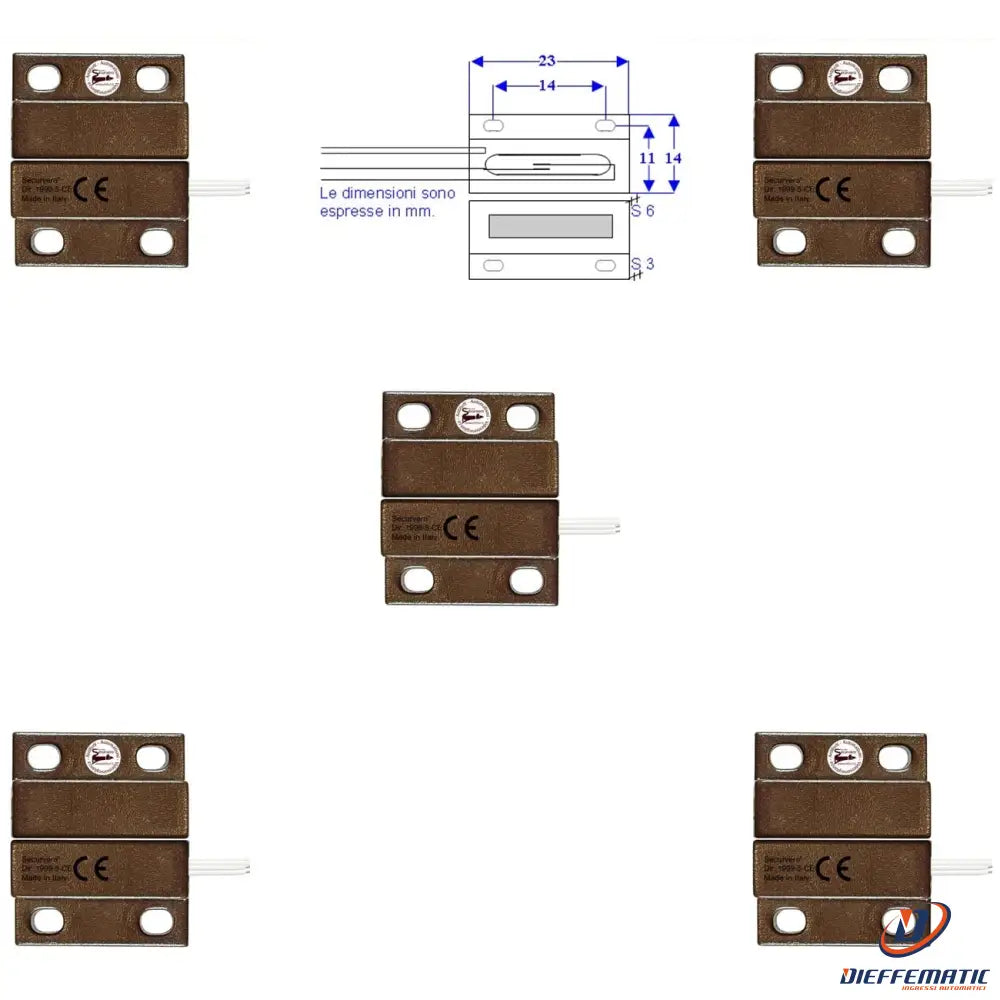

ST-10M Miniature ultra-flat brown NC magnetic contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic range 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with 4 wires contains a vacuum-sealed glass reed switch connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 unbroken tamper wires. The other part contains a permanent magnet. Particularly suitable for anti-theft protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part with the wires on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be completely closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular shape with mounting holes. Dimensions of the 2 pieces when installed: L14XH23XS6XS3 mm. Weight 8 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
05 ST-10M Brown Magnetic Microcontact with Vacuum-Sealed Glass Reed Switch, Max. Current 100 V 1 A, IP 65 Protection, 4 Wires, 2 N.C., 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
