Description
Brown Magnetic Burglar Alarm Sensor for Frames, 5 Pieces, Mini NC Reed Contact in Vacuum-Sealed Ampoule, 10 mm Pull-In Range, Max. Voltage 100 V, Current 1 A, Mounting Holes, IP65 Protection, 4 Wires
Mod. ST-10MCMCFEPA
SKU: ST-10MCMCFEPA

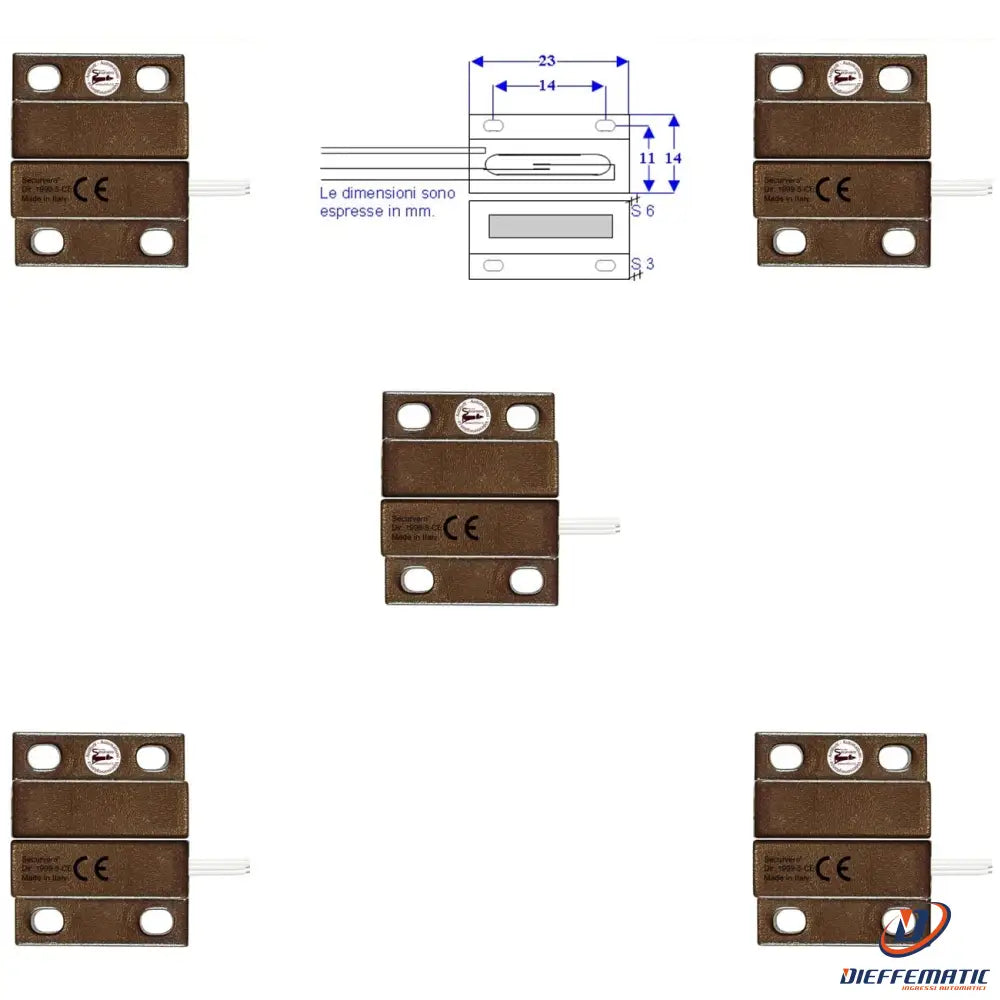

ST-10M Miniature Ultra-Flat Brown NC Magnetic Contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic field 10 mm. Consists of 2 identical-shaped parts, each with two mounting holes. The part with the 4 wires contains a reed contact in a vacuum-sealed glass ampoule, connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 uninterrupted Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part with the wires must be installed on the fixed part of the frame, while the magnet is installed opposite it on the moving part (door). The protected frames must be completely closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular in shape with mounting holes. Installed dimensions of the 2 parts: L14XH23XS6XS3 mm. Weight 8 g. Assembled and tested at the Securvera facility in Rome. Statutory 24-month warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
05 ST-10M Brown Magnetic Microcontact with Vacuum-Sealed Glass Ampoule, Max. Current 100 V 1 A, IP 65 Protection, 4 Wires, 2 N.C., 2 Tamper
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Warranty Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
