Shipping
Shipping in 5-10 business days
Description
NC Micro Magnetic Contact 5 White Pieces for Window and Door Alarm Maximum Voltage 100 V Current 1 A Housings with Mounting Holes Vacuum-Sealed Reed Switch 10 mm Magnetic Sensitivity IP65 4 Wires
Model ST-100CMCFEPD
SKU: ST-100CMCFEPD

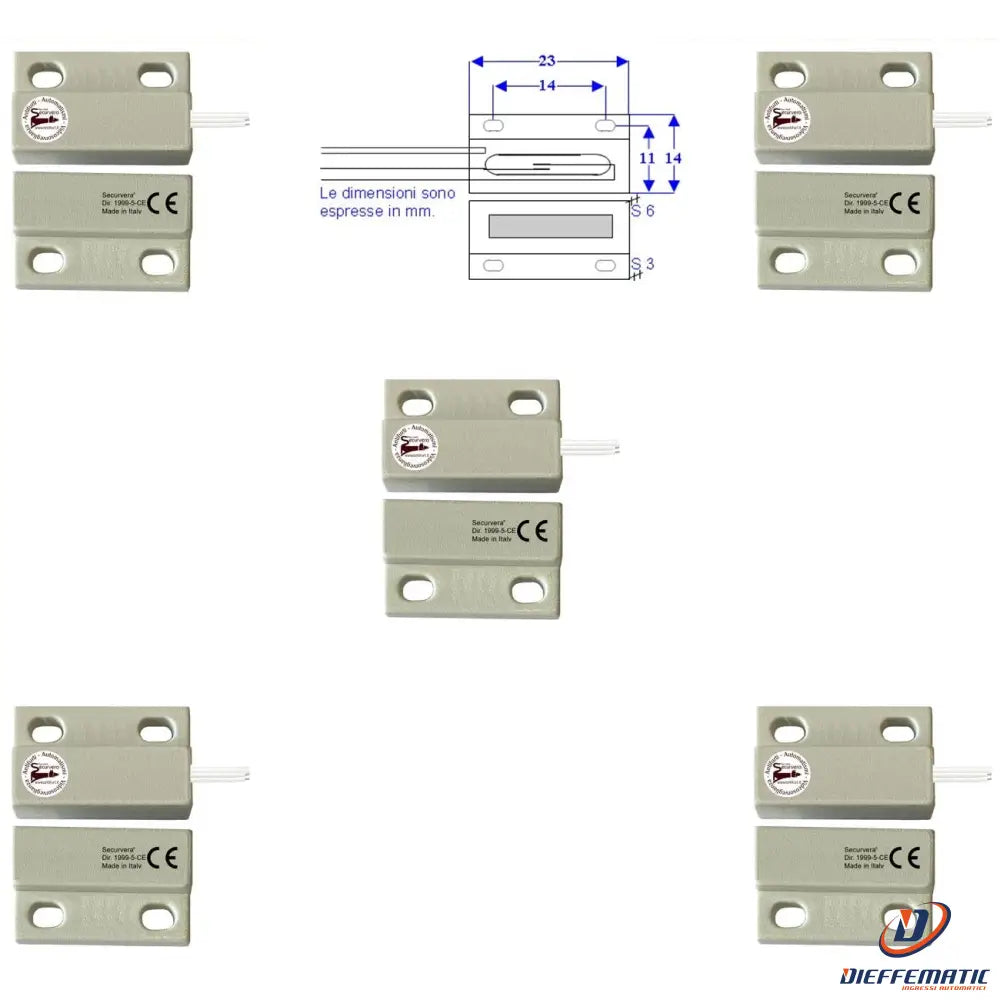

ST-100 Miniature ultra-flat NC magnetic contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic range 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a reed switch in a vacuum-sealed glass capsule, connected to 2 stripped wires; when the magnet is nearby, the contacts are in the NC position. 2 unbroken tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of frames in general, provided they are non-ferrous, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part with the wires on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be fully closed. Operating temperature from -25 to +70°. IP 65. Made of ABS plastic, rectangular shape with mounting holes. Installed dimensions of the 2 pieces: L14XH23XS6XS3 mm. Weight 8 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed for 24 months by law against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continually updated.
LIST OF COMPONENTS FOR SALE:
05 ST-100 RED Magnetic Sensor Contact in a Vacuum-Sealed Glass Reed Switch Maximum Current 100 V 1 A IP 65 Protection 4 Wires 2 N.C. 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
eb: 235844880390
