Description
Dual-Technology Curtain Sensor, Dual PIR and Microwave, Motion Sensors, 5 Pieces, Range 8/12 m, Detects Intruders in Indoor/Outdoor Window Areas, Sends Alarm, 12 V 10 mA Power Supply, White ABS Cover and Bracket, IP31
Model SV-DTFMOCFEPE
SKU: SV-DTFMOCFEPE

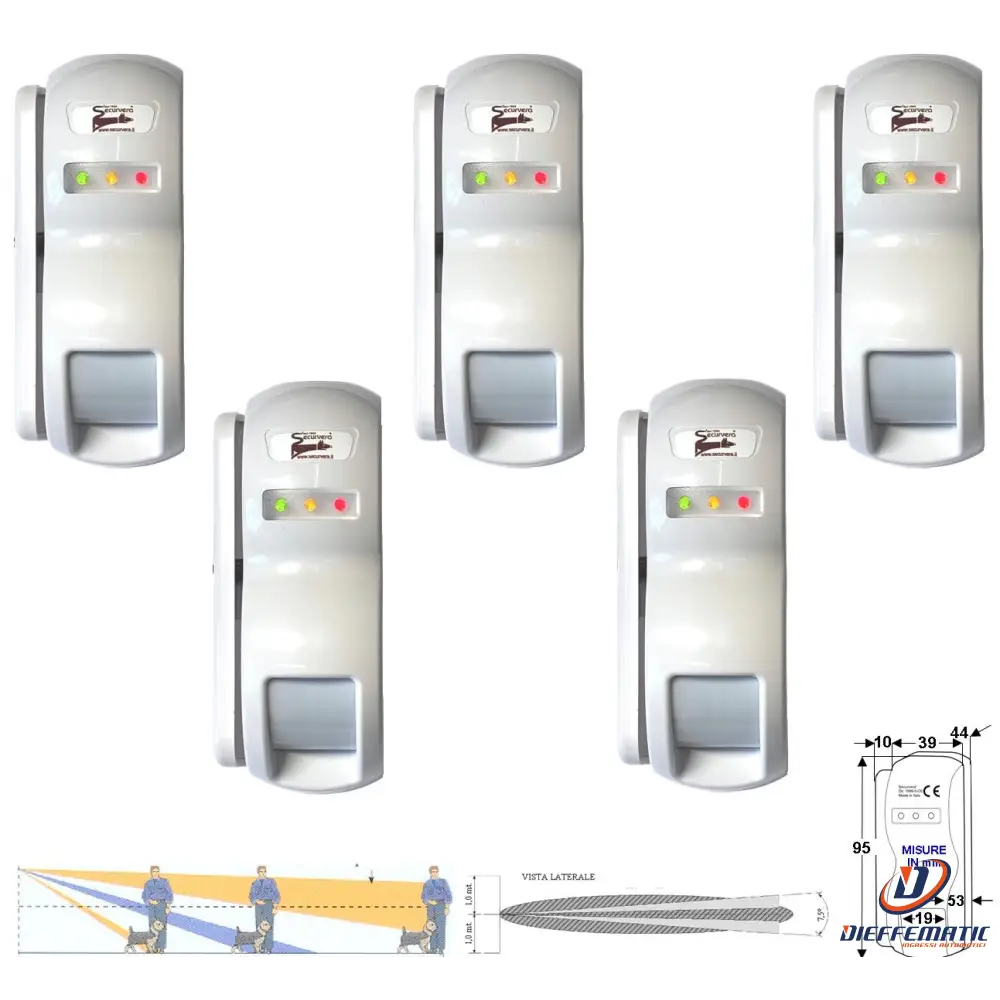

SV-DTF dual-technology indoor/outdoor curtain sensor. Range: 12 metres indoors, 8 metres outdoors. Dual pyroelectric sensor, generating a single infrared beam. Curtain-pattern microwave with waveguide. The two sensors are synchronized over a 7.5° opening. Sensitivity adjustment for each individual sensor. Separate relay outputs: alarm, anti-masking and tamper. Functions: infrared, microwave and alarm, indicated by individual LEDs that can be disabled. Suitable for detecting intruders and protecting window frames between shutters and windows, and balconies sheltered by overhangs. Avoid installation in direct sunlight in the morning and afternoon. Wall-mounted installation, 2.10 metres above the floor. White ABS housing. IP31 protection rating. Dimensions H116xW49xD53 mm. Weight 90 g. Product selected at the Securvera facility in Rome. Guaranteed in accordance with the law against manufacturing defects and faults. Complies with European directives: EMC 2004/108/CE EN 50130-4: 1995 + A1: 1998 +A2: 2003 EN55022: 2006 ce0700 Class II CEE89/336 and 93/686 D.L. 04/12/1992 n. 47
LIST OF COMPONENTS FOR SALE:
05 SV-DTF Dual-Technology Indoor/Outdoor Curtain Sensor, Range 8/12 m, White, for Balconies, Adjustable Sensitivity, 12 V Power Supply
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Lifetime Coverage Against Manufacturing Defects for Qualified Installations
01 SV-IST Detailed Installation Instructions; Current Regulations and Individual Manuals Must Be Followed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE
MANUFACTURER'S MANUAL
24-month warranty
