Description
Five-zone motion detector, dual-technology curtain detector with dual PIR and microwave, range 8/12 m, indoor/outdoor sensor detects intruders and sends an alarm. 12 V power supply, 10 mA consumption, white ABS cover and bracket, IP31.
Model SV-DTFMOCFEPA
SKU: SV-DTFMOCFEPA

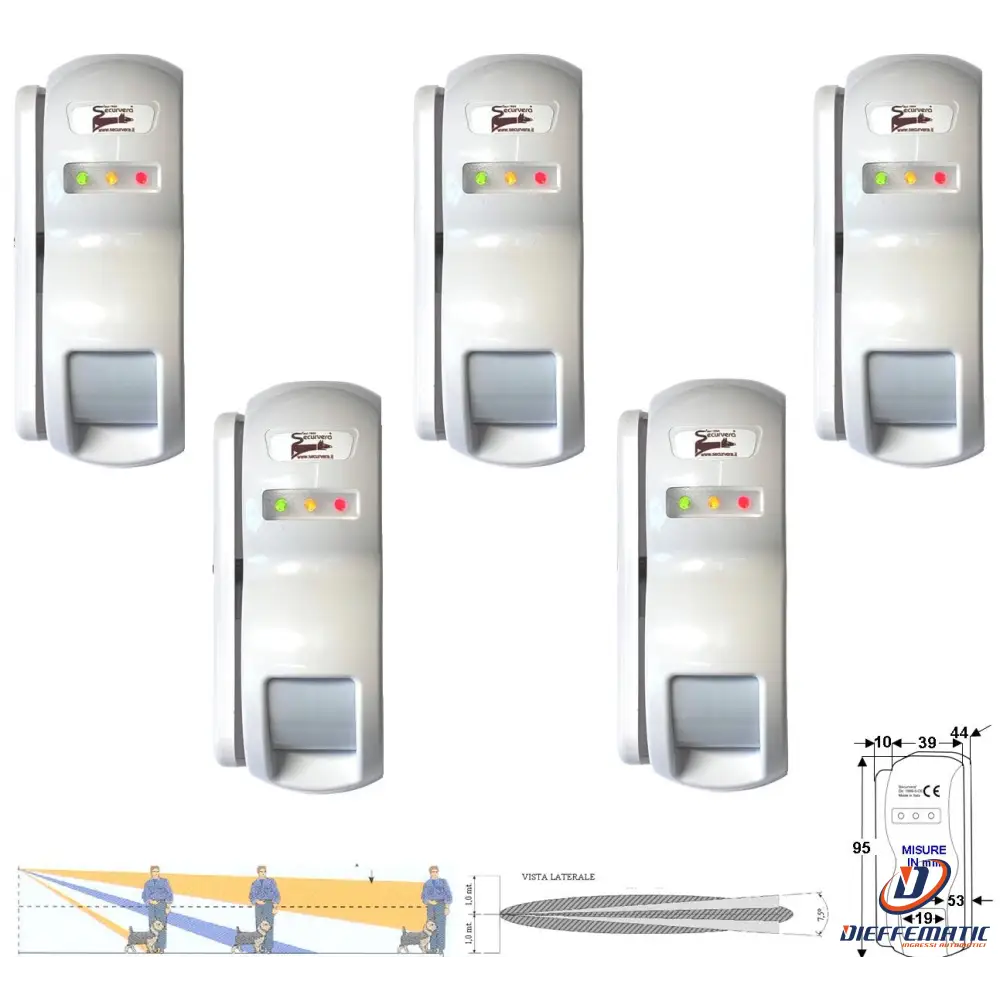

SV-DTF dual-technology indoor/outdoor curtain detector. Range: 12 metres indoors, 8 metres outdoors. Dual pyroelectric sensor, generating a single infrared beam. Curtain-pattern microwave with waveguide. The two sensors are synchronized over a 7.5° opening. Sensitivity adjustment for each individual sensor. Separate relay outputs: alarm, anti-masking and tamper. Functions: infrared, microwave and alarm, each indicated by an individual LED that can be disabled. Suitable for detecting intruders and protecting window and door frames between shutters and windows, and balconies sheltered by overhangs. Avoid installation in direct sunlight in the morning and afternoon. Wall installation at a height of 2.10 metres from the floor. White ABS housing. IP31 protection. Dimensions: H116 x W49 x D53 mm. Weight: 90 g. Product selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with European directives: EMC 2004/108/EC EN 50130-4: 1995 + A1: 1998 + A2: 2003 EN55022: 2006 ce0700 Class II CEE89/336 and 93/686 D.L. 04/12/1992 No. 47
COMPONENTS FOR SALE:
05 SV-DTF Dual-Technology Indoor/Outdoor Curtain Detector, Range 8/12 m, White, for Balconies, Adjustable Sensitivity, 12 V Power Supply
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Lifetime Coverage Against Manufacturing Defects When Professionally Installed
01 SV-IST Detailed Installation Instructions; Current Regulations and Individual Manuals Must Be Followed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY PRACTICAL GUIDE
MANUFACTURER’S MANUAL
24-month warranty
