Description

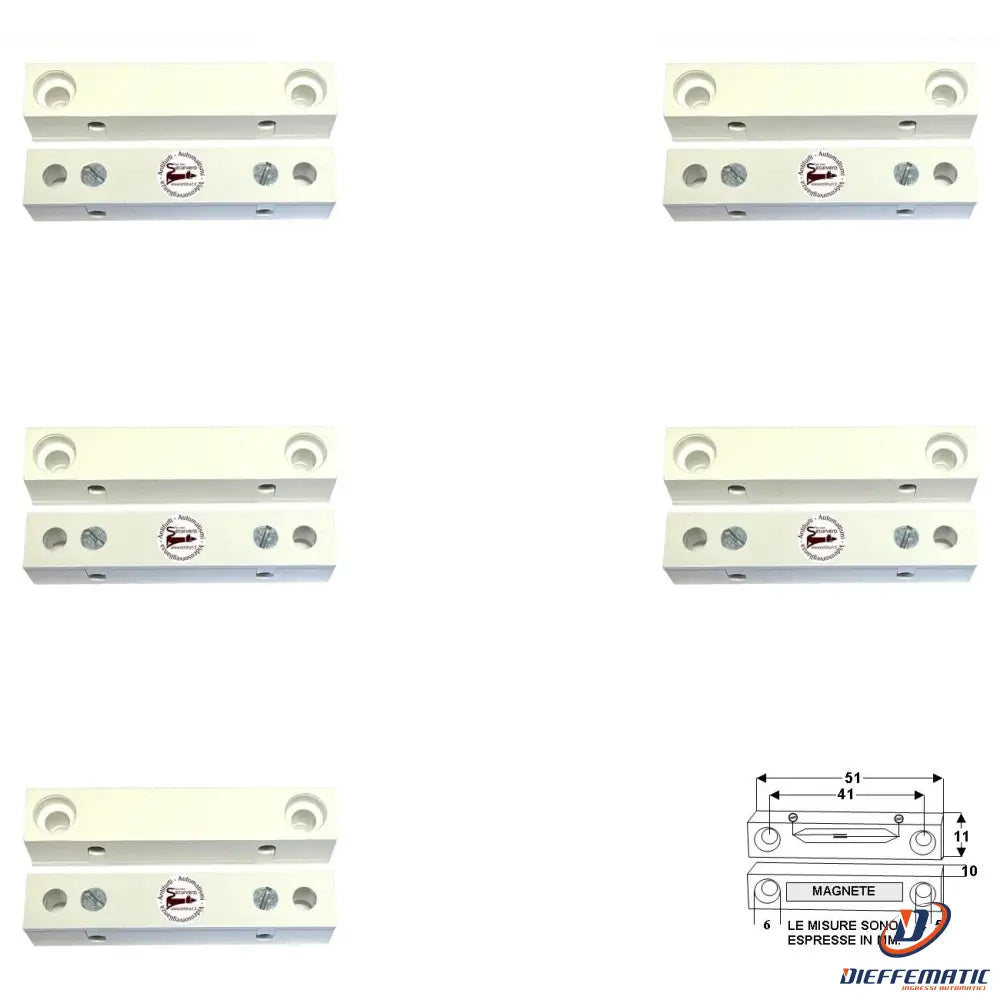

Door Protection, 5-Piece Outdoor Magnetic Contact, Reed Alarm Sensor, NC Output, 2 Terminals, Magnetic Sensitivity 13 mm, Max. Switching Voltage 30 V 0.5 A, Resistive Load, White ABS Cover, IP40
Mod. ST-41BCMEP5SC
SKU: ST-41BCMEP5SC
ST-41B NC magnetic contact with vacuum-sealed glass reed switch. With mounting holes. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic gap 13 mm. Consists of 2 parts of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, normally open (NO). Bringing the magnet close causes the contacts to close to the normally closed (NC) position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the part with the terminals, must be installed on the fixed part of the frame, while the magnet must be positioned opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2. Connection: 2 terminals. Compliant with CEI 79-2 Grade 1. White rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of non-ferrous frames. Dimensions L51XH11XS10 mm. Weight 12 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed for 24 months as required by law against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
05 ST-41B ABS Magnetic Contact, Brick-Shaped, REED, Vacuum-Sealed, Max. Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
