Description
Outdoor ABS Magnetic Contact, 5 Pieces for Window and Door Alarm, NC Vacuum-Sealed Reed Switch, 13 mm Magnetic Sensitivity, Max. Voltage 100 V, 1 Ah Resistive Load, IP65 Protection, 4 Wires: 2 NC and 2 Tamper
Mod. ST-400CSMBFTE
SKU: ST-400CSMBFTE

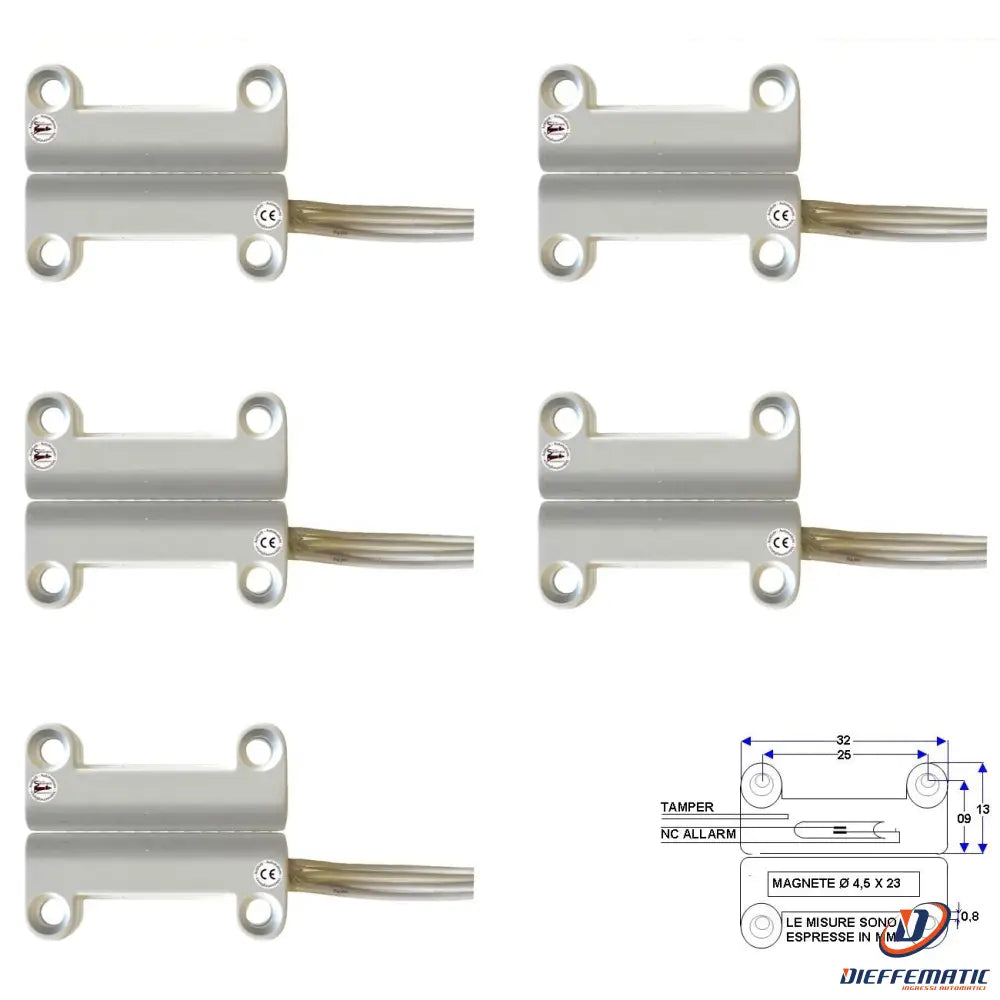

ST-400 outdoor NC magnetic contact in brick-shaped ABS housing. Maximum switching current 1 A at 30 V resistive load. Magnetic gap: 13 mm. Consists of 2 parts with the same shape. The part with the wires contains a vacuum-sealed glass Reed switch, normally open. Bringing the magnet close causes the contacts to close to the NC position. The 2 remaining wires are NC for the tamper connection. The other part contains a permanent magnet. Surface-mounted outdoor installation. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the part with the wires, must be installed on the fixed part of the frame, while the magnet must be aligned with it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2 Level 1. IP 65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L32XH25XS8 mm. Weight 11 gr. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continually updated
LIST OF COMPONENTS FOR SALE:
05 ST-400 Vacuum-sealed RED Reed Switch in Brick-shaped ABS Magnetic Contact, Max. Current 30 V 1 A, IP 65 Protection, 4 Wires: 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Observed: Connections, Polarity, Power Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
