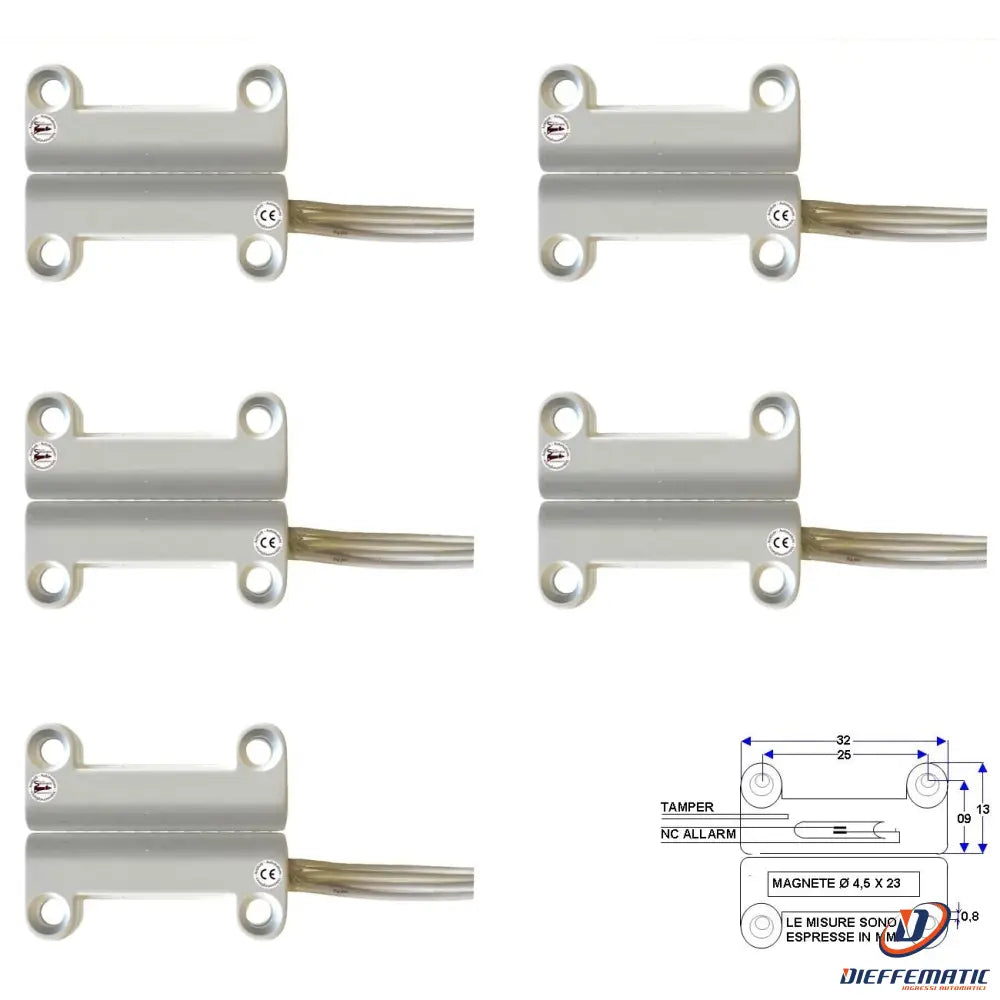

Outdoor Brick-Shaped Magnetic Contact, 5 Pieces for Window and Door Alarm Systems, NC Vacuum-Sealed Reed Contact, Magnetic Sensitivity 13 mm, Max. Voltage 100 V, 1 Ah Resistive Load, IP65, 4 Wires, 2 NC and 2 Tamper
Mod. ST-400CSMBFTD
SKU: ST-400CSMBFTD
ST-400 outdoor NC magnetic contact, brick-shaped, ABS. Maximum switching current 1 A at 30 V resistive load. Magnetic gap: 13 mm. Consists of 2 parts of the same shape. The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close to the NC position. The 2 remaining wires are NC for tamper connection. The other part contains a permanent magnet. Surface-mounted outdoor installation. Particularly suitable for protecting window and door frames in general, provided they are non-ferrous, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the one with the wires, must be installed on the fixed part of the frame, while the magnet is positioned opposite on the moving part (door). The protected frames must be completely closed. Complies with CEI 79/2 Grade 1. IP 65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L32XH25XS8 mm. Weight 11 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
05 ST-400 Brick-Shaped RED Vacuum-Sealed ABS Magnetic Contact, Max. Current 30 V 1 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
