Description
Outdoor Magnetic Detector 5 Pieces for Burglar Alarm Frame Protection NC Vacuum-Sealed Reed Contact 13 mm Magnetic Sensitivity Max Voltage 100 V 1 Ah Resistive Load IP65 Protection 4 Wires, 2 NC and 2 Tamper
Mod. ST-400CSMBFTC
SKU: ST-400CSMBFTC

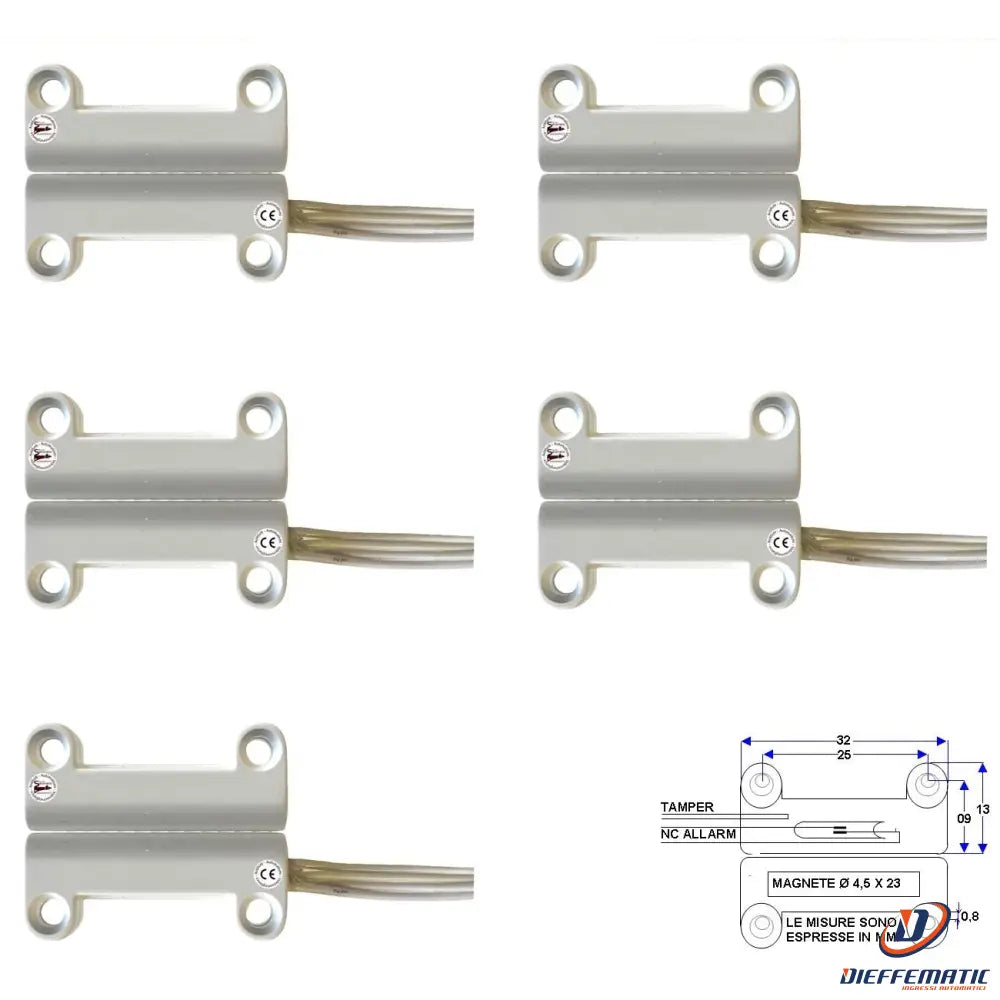

ST-400 Outdoor NC magnetic contact in brick-shaped ABS housing. Maximum current 1 A at 30 V resistive load. Magnetic range 13 mm. Consists of 2 pieces of the same shape. The wired part contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close closes the contacts to the NC position. The 2 remaining wires are NC for connecting the tamper. The other part contains a permanent magnet. Surface-mounted outdoor installation. Particularly suitable for protecting frames in general, provided they are non-ferrous, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the one with the wires, must be installed on the fixed part of the frame, while the magnet is positioned opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2 Level 1. IP 65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L32XH25XS8 mm. Weight 11 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
05 ST-400 Brick-Shaped ABS Magnetic Contact RED Vacuum-Sealed Max Current 30 V 1 A IP 65 Protection 4 Wires 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
