Shipping
Shipping in 5-10 business days
Description
Outdoor Magnetic Contact, 5 Pieces, Burglar Alarm for Doors and Windows, Vacuum-Sealed NC Reed Contact, 13 mm Magnetic Sensitivity, Max. Voltage 100 V, 1 Ah Resistive Load, IP65 Protection, 4 Wires, 2 NC and 2 Tamper Wires
Mod. ST-400CSMBFTA
SKU: ST-400CSMBFTA

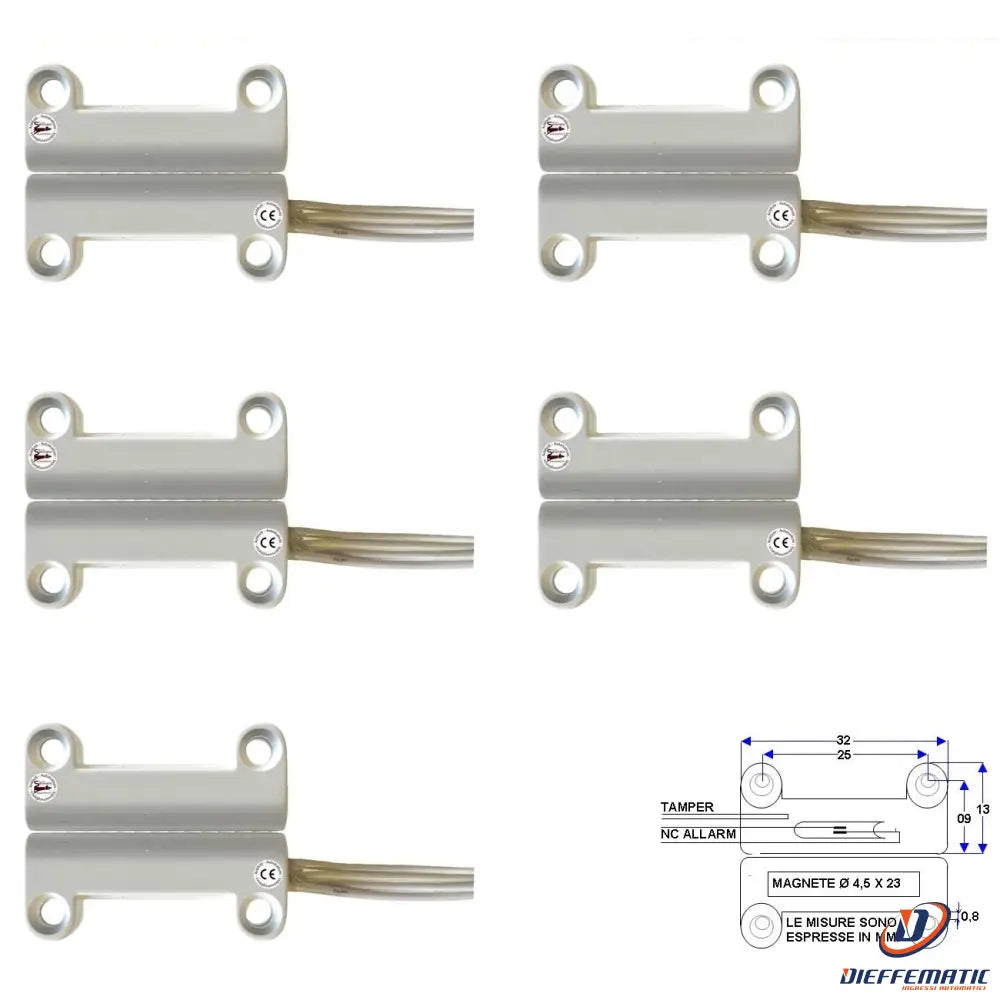

ST-400 Outdoor NC magnetic contact in brick-shaped ABS. Maximum current 1 A at 30 V resistive load. Magnetic gap: 13 mm. Consists of 2 pieces of the same shape. The part with the wires contains a vacuum-sealed glass-reed contact, in the NO position. Bringing the magnet close causes the contacts to close in the NC position. The 2 remaining wires are NC for the tamper connection. The other part contains a permanent magnet. Surface-mounted outdoor installation. Particularly suitable for protecting frames in general, provided they are non-ferrous, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, that is, the part with the wires, must be installed on the fixed part of the frame, while the magnet is installed opposite it on the moving part (door). The protected frames must be completely closed. Complies with CEI 79/2 Level 1. Protection rating IP 65. Operating temperature from -25 to +70° C. Installed dimensions L32XH25XS8 mm. Weight 11 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed as required by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
05 ST-400 Outdoor Brick-Shaped RED Vacuum-Sealed ABS Magnetic Contact, Max. Current 30 V 1 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
eb: 375816884889
