Shipping
Shipping in 5-10 business days
Description

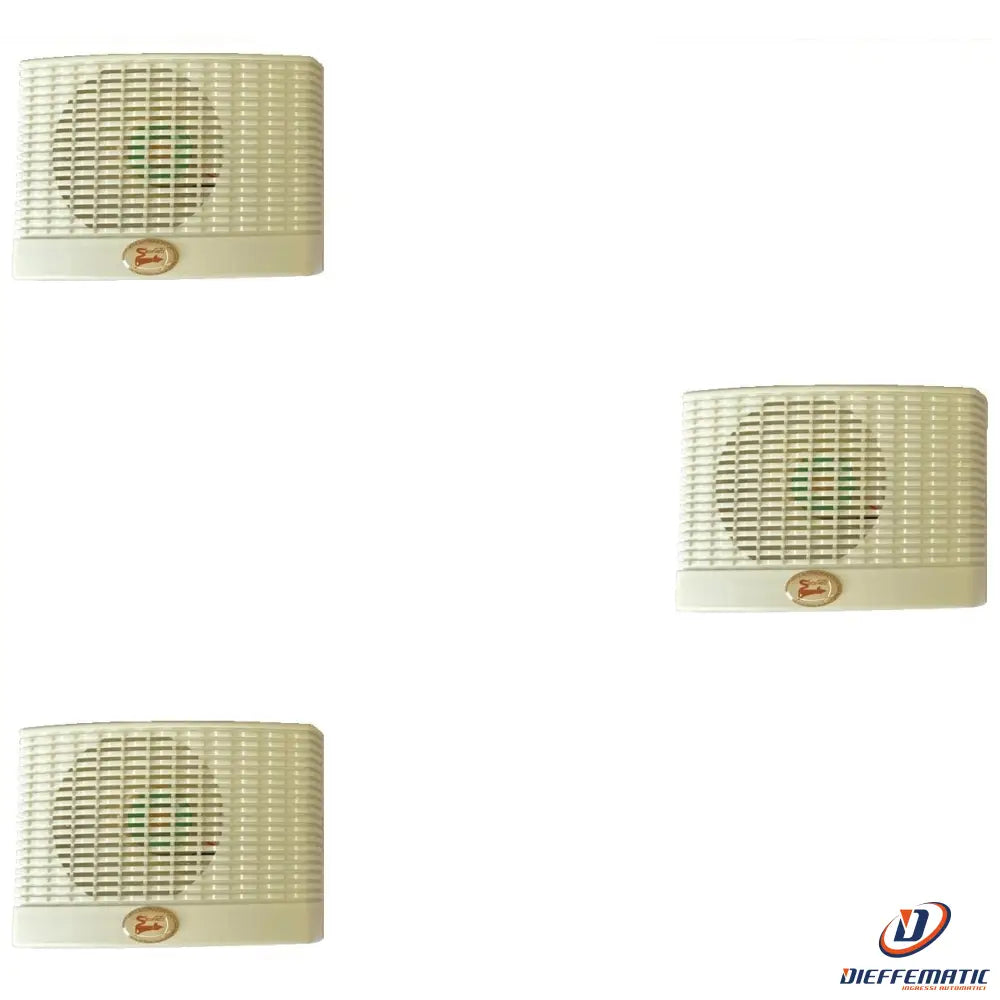

Indoor Wall-Mounted Burglar Alarm Siren, 3-Piece, Piezoelectric Sounder, 115 dB, Polarized Terminals, 12 V DC Power Supply, Current Consumption 200 mA, Two-Tone A/B 1500 +/- 4000 Hz, ABS Housing IP32
Model SS-610SEPTSPA
SKU: SS-610SEPTSPA
SS-610 Two-tone siren with high-output piezoelectric transducer. Sound pressure 115 dB at one metre. Two-tone melody, frequency A/B 1500 +/- 4000 Hz. Tamper-proof circuit against opening and removal from the wall. Useful as an indoor alarm deterrent. Connection via polarized terminals. Supply voltage from 9 to 15 V DC. Nominal voltage 12 V. Current consumption 200 mA. Operating temperature from -10° to +70°C. Indoor wall mounting. ABS plastic housing with mounting holes. Overall dimensions L101XH139XP40 mm. Weight 180 g. Assembled product selected at the Securvera facility in Rome. Guaranteed in accordance with the law for 24 months against manufacturing defects and faults. Complies with Directive 1999/5/EC (R&TTE). Complies with the following European standards and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU
LIST OF COMPONENTS FOR SALE:
03 SS-610 High-Output Two-Tone Piezoelectric Indoor Wall Siren, Sound Pressure 115 dB, 12 V DC Power Supply, Current Consumption 200 mA
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Power Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER’S MANUAL
24-month warranty
eb: 226466277544
