Description
Mini Flush-Mount Brass Magnetic Contact, 3-Piece Anti-Theft Sensor for Windows and Fixtures, NC Vacuum-Sealed Reed Contact, 10 mm Operating Range, Max Voltage 30 V, 1 A Resistive Load, IP65, 4 Wires: 2 NC and 2 Tamper
Mod. ST-105TCMOCOE
SKU: ST-105TCMOCOE

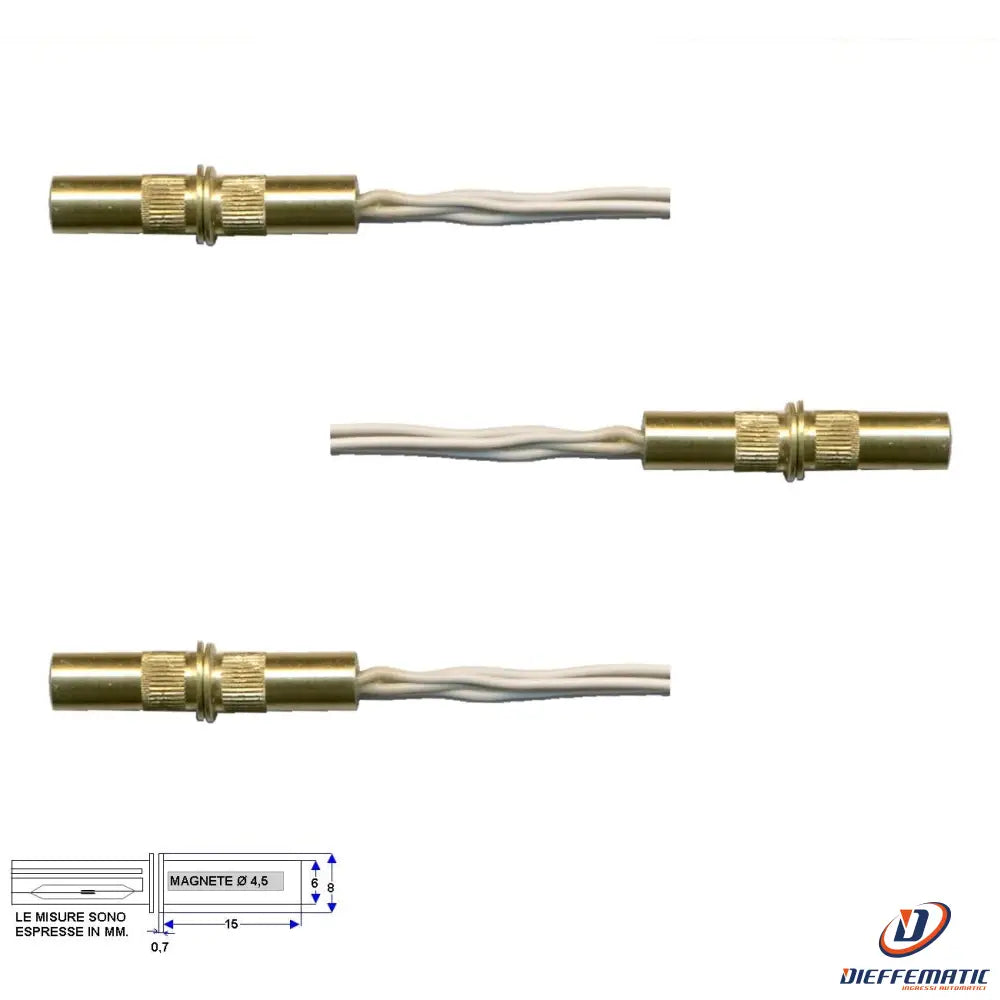

ST-105 NC brass cylindrical nail-type magnetic reed contact. Maximum current 1 A at 30 V resistive load. Magnetic range 10 mm. Consists of 2 pieces of the same shape. Cylindrical brass housing (nail type). The part with the wires contains a vacuum-sealed glass reed switch in the NO position. The magnet's approach closes the contacts to the NC position. The 2 remaining wires are NC for connecting the tamper. The other part contains a permanent magnet. Flush-mount installation. Particularly suitable for protecting non-ferrous fixtures in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, that is, the part with the wires, must be installed on the fixed part of the fixture (frame), while the magnet must be positioned opposite it on the moving part (door). The protected fixtures must be completely closed. Compliant with CEI 79-2 Level 1. IP65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L30XD6 head D8 mm. Weight 7 g. Assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
03 ST-105 Brass Cylindrical RED Vacuum-Sealed Magnetic Reed Contact Max Current 30 V 1 A P. IP65 Four Wires 2 NC. 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The following must be observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
