Brass Flush-Mount Magnetic Contact for Window and Fixture Alarm Systems, 3 Pieces, Vacuum-Sealed NC Reed Contact, 10 mm Magnetic Sensitivity, Max. Voltage 30 V, Resistive Load 1 A, IP65, 4 Wires: NC and Tamper
Model ST-105TCMOCOB
SKU: ST-105TCMOCOB

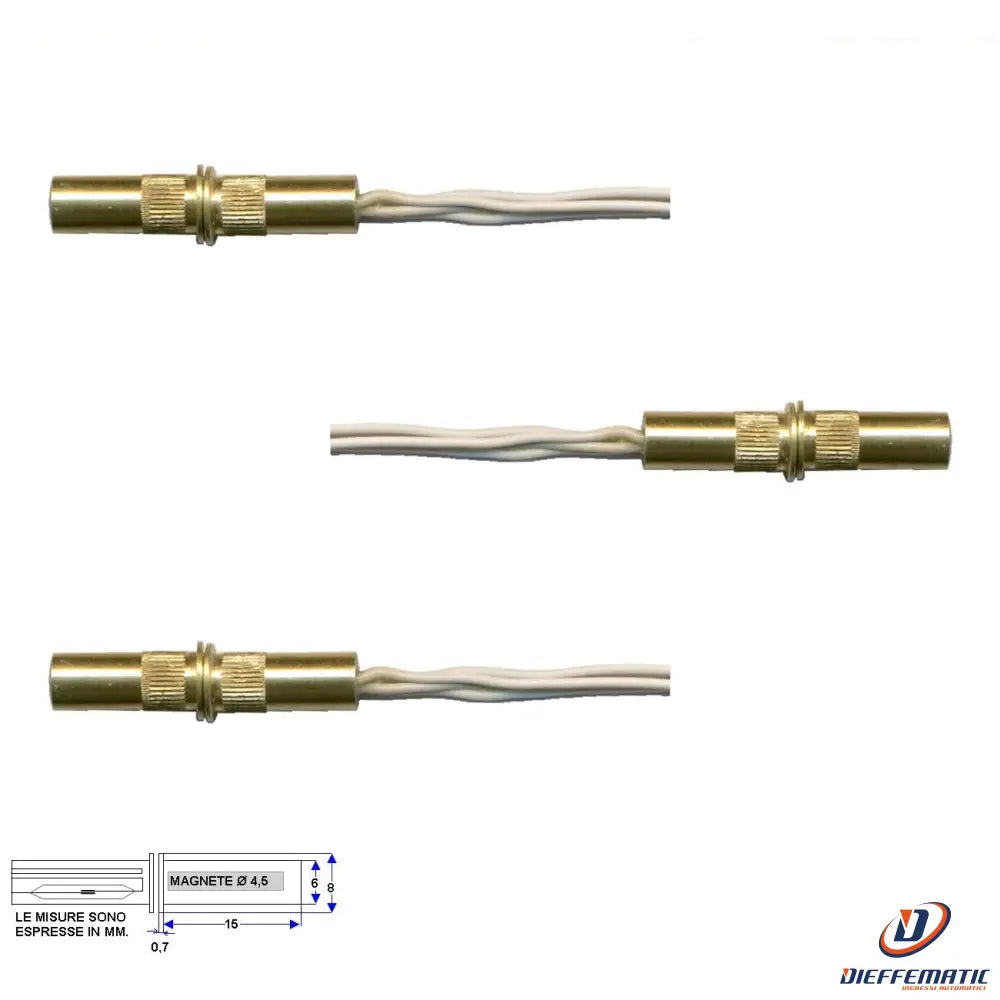

ST-105 NC magnetic contact in brass, cylindrical nail-shaped design. Maximum switching current 1 A at 30 V, resistive load. Magnetic gap: 10 mm. Consists of 2 pieces of the same shape. Cylindrical brass housing (nail-shaped). The wired section contains a vacuum-sealed glass reed switch, normally open. Bringing the magnet close closes the contacts to the NC position. The 2 remaining wires are NC for connecting the tamper circuit. The other section contains a permanent magnet. Flush-mounted installation. Particularly suitable for protecting general non-ferrous fixtures, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact section, i.e. the part with the wires, on the fixed part of the fixture (frame), and the magnet opposite it on the moving part (door). Protected fixtures must be fully closed. Compliant with CEI 79-2 Level 1. IP65 protection rating. Operating temperature from -25 to +70° C. Installed dimensions: L30XD6, head D8 mm. Weight: 7 g. Assembled and inspected at the Securvera facility in Rome. Covered by a 24-month statutory warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 + 93/68; Legislative Decree 04/12/1992 No. 476. ErP 2009/125/EC; "RoHS" 2015/863/EU; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/EU; Low Voltage 2014/35/EU and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
03 ST-105 Cylindrical Brass Magnetic Reed Contact, Vacuum-Sealed, Max. Current 30 V 1 A, IP65, Four Wires, 2 NC, 2 Tamper Wires
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified installation in accordance with Ministerial Decree 37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
