Description
Brown Mini Magnetic Burglar Sensor for Frames, 3 Pieces, NC Reed Switch in Vacuum-Sealed Capsule, Magnetic Sensitivity 10mm, Max. Voltage 100 V, Current 1 A, Mounting Holes, IP65 Protection, 4 Wires
Mod. ST-10MTMCFEPD
SKU: ST-10MTMCFEPD

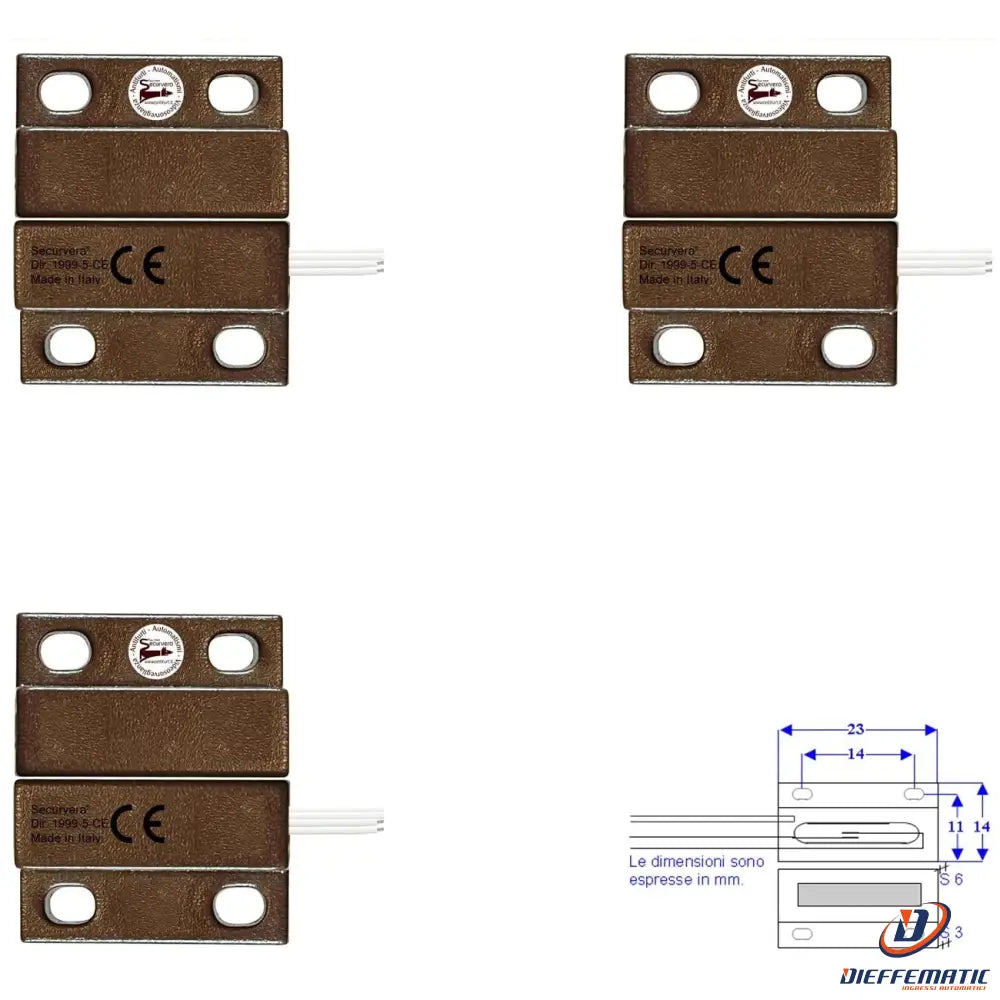

ST-10M Miniature Ultra-Flat Brown NC Magnetic Contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic gap 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a reed switch in a vacuum-sealed glass capsule, connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 continuous Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part with the wires should be installed on the fixed part of the frame, while the magnet should be positioned opposite it on the moving part (door). The protected frames must be fully closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular in shape with mounting holes. Installed dimensions of the 2 pieces: L14XH23XS6XS3 mm. Weight 8 g. Product assembled and inspected at the Securvera facility in Rome. Covered by a 24-month warranty as required by law against manufacturing defects and faults. Complies with the European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
03 ST-10M Brown Magnetic Microcontact with Vacuum-Sealed Glass Capsule, Max. Current 100 V 1 A, IP 65 Protection, 4 Wires, 2 N.C., 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements, Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
