Description
Mini Magnetic Contact for Window or Frame Alarm, NC Reed Switch, 3 Pieces in Vacuum-Sealed Capsule, Attraction Range 10 mm, Max. Voltage 100 V, Current 1 A, Housings with Mounting Holes, IP65, 4 Wires
Mod. ST-10MTMCFEPB
SKU: ST-10MTMCFEPB

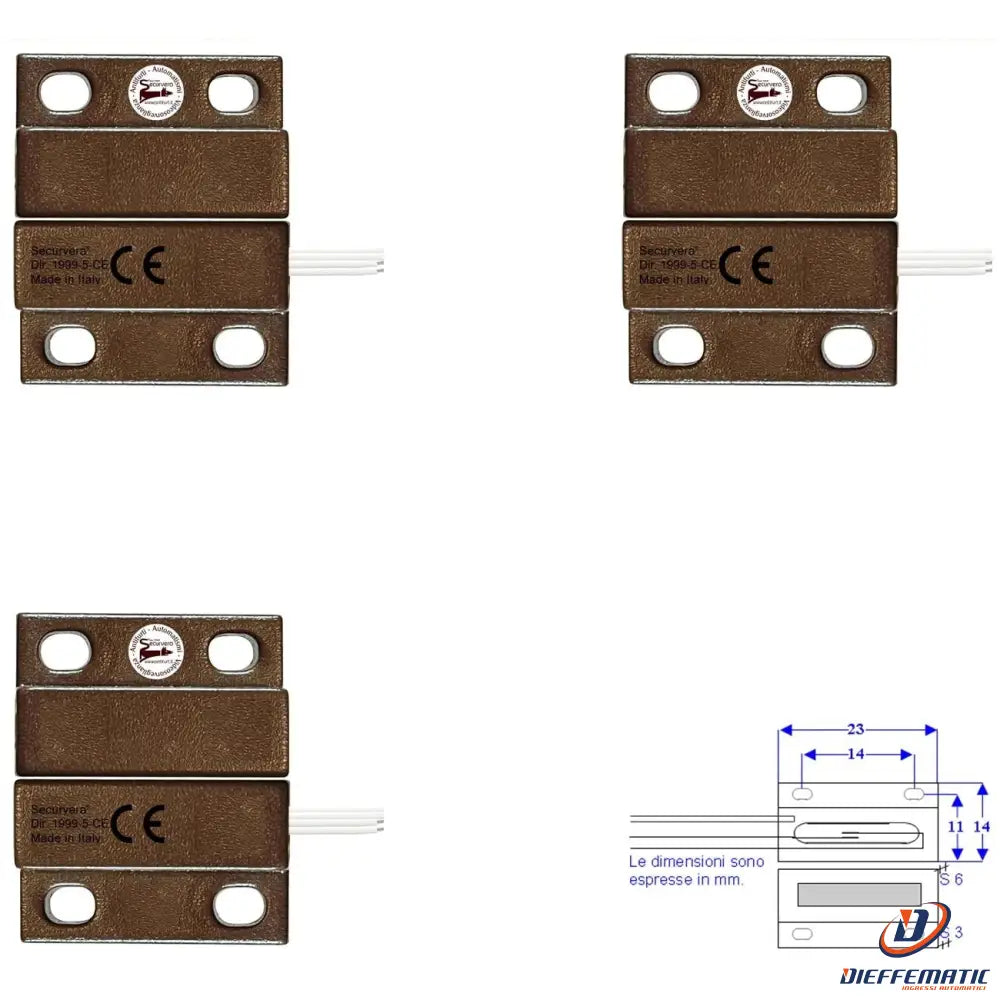

ST-10M Ultra-flat miniature brown NC magnetic contact. Maximum switching voltage 100 Vdc. Current 1 Ah. Magnetic range 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a reed switch in a vacuum-sealed glass capsule connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 uninterrupted Tamper wires. The other part contains a permanent magnet. Particularly suitable for anti-theft protection of frames in general, provided they are non-ferrous, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part with the wires must be installed on the fixed part of the frame (frame), while the magnet must be positioned opposite on the moving part (door). The protected frames must be fully closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular shape with mounting holes. Installed dimensions of the 2 pieces L14XH23XS6XS3 mm. Weight 8 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
03 ST-10M Brown Magnetic Reed Switch in Vacuum-Sealed Glass Capsule, Max. Current 100 V 1 A, IP 65 Protection, 4 Wires, 2 N.C., 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
