Description

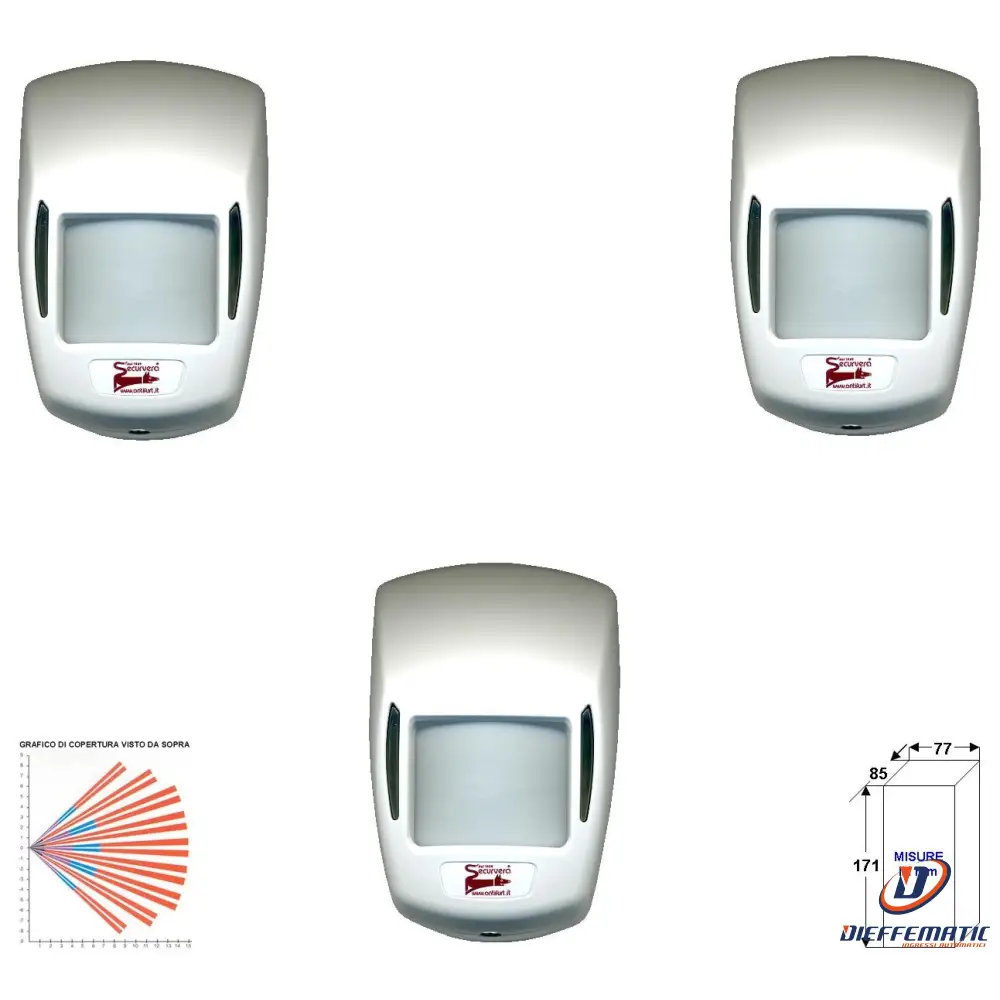

3-Piece Wide-Angle Dual-Technology Motion Sensor for Intruder Alarm, Indoor, 15 m Range, Detects Intruders Within 90 Degrees, 12 V Power Supply, 10 mA Current Consumption, Infrared, 18-Beam Lens, White, ABS Swivel Bracket
Model SV-DTMRM3DTGB
SKU: SV-DTMRM3DTGB
SV-DTM Dual-technology (microwave and infrared) volumetric motion detector. Adjustable range up to 15 m. Indicators via 3 LEDs: yellow for microwave, green for infrared, red for alarm memory. 4 function-programming DIP switches: alert (sensor masking or fault), attempted masking, OR alarm from one sensor after 5 movements, AND alarm from both sensors, LEDs enabled and disabled. Alarm inhibition and memory while positive voltage is present. Outputs: NC alarm relay, NC tamper, masking or fault alert. Its reliability makes it indispensable and secure for industrial sites, banks, jewellery shops, pharmacies, churches, showrooms, and environments with draughts, suspended objects, movable walls, and mirrors. 12 V power supply. Current consumption: 40 mA. Plastic housing. Dimensions H95XL68XP46 mm. Weight: 77 g + 8 g swivel bracket. Product selected at the Securvera plant in Rome. Guaranteed by law against manufacturing defects and faults. Complies with European directives: EMC 2004/108/CE EN 50130-4: 1995 + A1: 1998 +A2: 2003 EN55022: 2006 ce0700 Class II CEE89/336 and 93/686 D.L. 04/12/1992 n. 47
LIST OF COMPONENTS FOR SALE:
03 SV-DTM Indoor Wide-Angle Dual-Technology Motion Sensor, Infrared, 12-Metre Range, 12V Power Supply
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Qualified Installation Covered for Life Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Applicable Regulations and Individual Manuals
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE
MANUFACTURER'S MANUAL
24-month warranty
