Description
Wide-Angle Dual-Technology Motion Detector, 3 Sensors, for Intruder Alarm Systems, 15 m Indoor Range, Detects Intruders Within 90 Degrees, 12 V Power Supply, 10 mA Current Draw, Infrared, 18-Beam Lens, White, ABS Swivel Joint
Model SV-DTMRM3DTGA
SKU: SV-DTMRM3DTGA

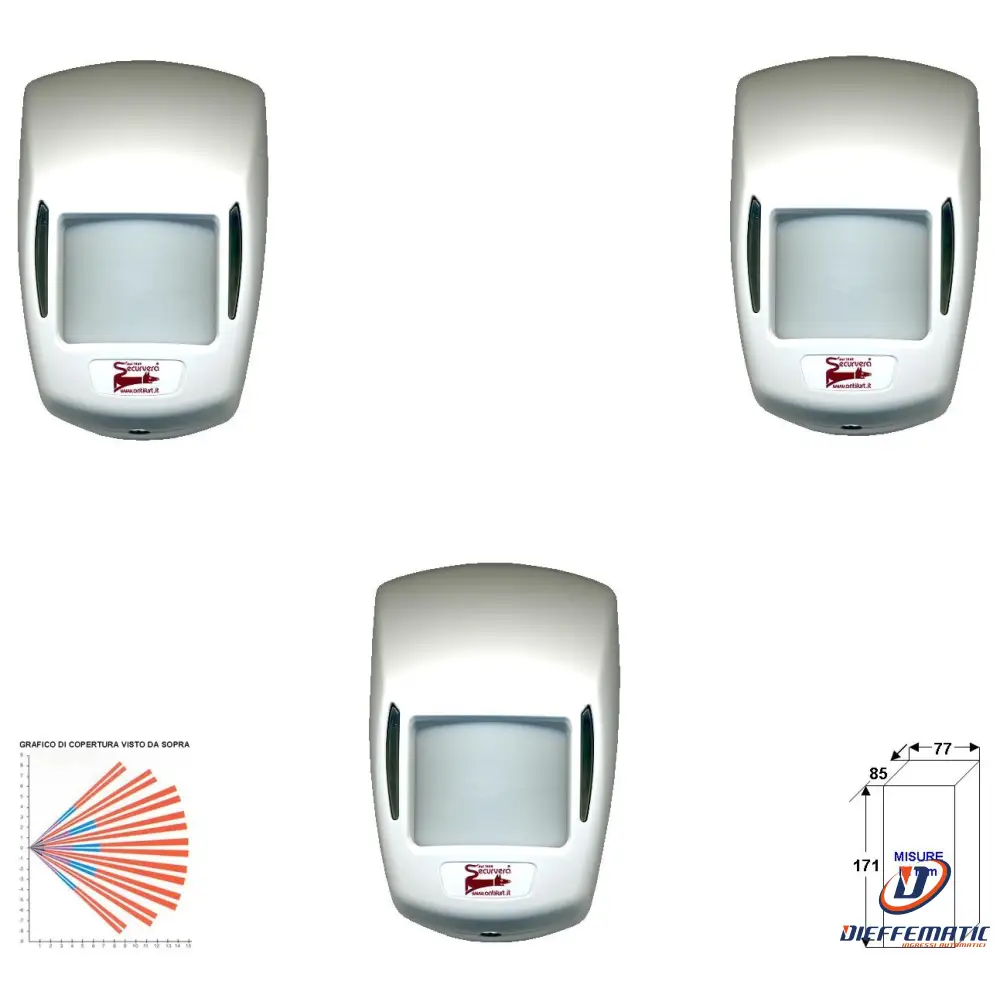

SV-DTM Dual-technology (microwave and infrared) volumetric motion detector. Adjustable range up to 15 m. Indicators via 3 LEDs: yellow for microwave, green for infrared, red for alarm memory. 4 function-programming DIP switches: warning (sensor masking or fault), attempted masking, OR alarm from one sensor after 5 movements, AND alarm from both sensors, LEDs enabled or disabled. Inhibition and alarm memory with positive voltage present. Outputs: NC alarm relay, NC tamper, masking or fault warning. Its reliability makes it essential and safe for protection in industrial facilities, banks, jewelry stores, pharmacies, churches, showrooms, and environments with drafts, suspended objects, movable walls, or mirrors. 12 V power supply. Current draw: 40 mA. Plastic housing. Dimensions H95xW68xD46 mm. Weight 77 g + 8 g swivel joint. Product selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with European directives: EMC 2004/108/CE EN 50130-4: 1995 + A1: 1998 +A2: 2003 EN55022: 2006 ce0700 Class II CEE89/336 and 93/686 D.L. 04/12/1992 n. 47
COMPONENTS FOR SALE:
03 SV-DTM Dual-Technology Wide-Angle Indoor Motion Sensor, Infrared, 12-Meter Range, 12V Power Supply
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Lifetime Coverage Against Manufacturing Defects When Professionally Installed
01 SV-IST Detailed Installation Instructions; Must Be Complied With: Current Regulations and Individual Manuals
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE
MANUFACTURER'S MANUAL
24-month warranty
