Description
Outdoor ABS Magnetic Detector, 3-Piece, Mounting Flanges, Sealed Reed Switch, Magnetic Sensitivity 13 mm, Maximum Voltage 30 V 0.5 A, Resistive Load, 4-Wire Output, 2 NC and 2 Tamper, IP65 Protection, ABS Cover
Mod. ST-405TCMABTB
SKU: ST-405TCMABTB
ST-405 NC magnetic contact with sealed reed switch in a glass capsule, with perforated mounting flanges. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic gap 13 mm. Consists of 2 parts of the same shape. The part with the wires contains a reed switch in a sealed glass capsule, in the NO position. Bringing the magnet closer closes the contacts to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the one with the wires, must be installed on the fixed part of the frame, while the magnet must be aligned with it on the moving part (door). The protected frames must be completely closed. Complies with CEI79/2 directive. Made of ABS plastic. IP 65 protection. Wired connection. Compliant with CEI 79-2 Level 1. Rectangular plastic housing with perforated flanges. Suitable for monitoring the opening of (non-ferrous) frames. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the selected facility at the Securvera facility in Rome. Guaranteed as required by law against manufacturing defects and faults. Product assembled and inspected at the Securvera facility in Rome. Guaranteed as required by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:

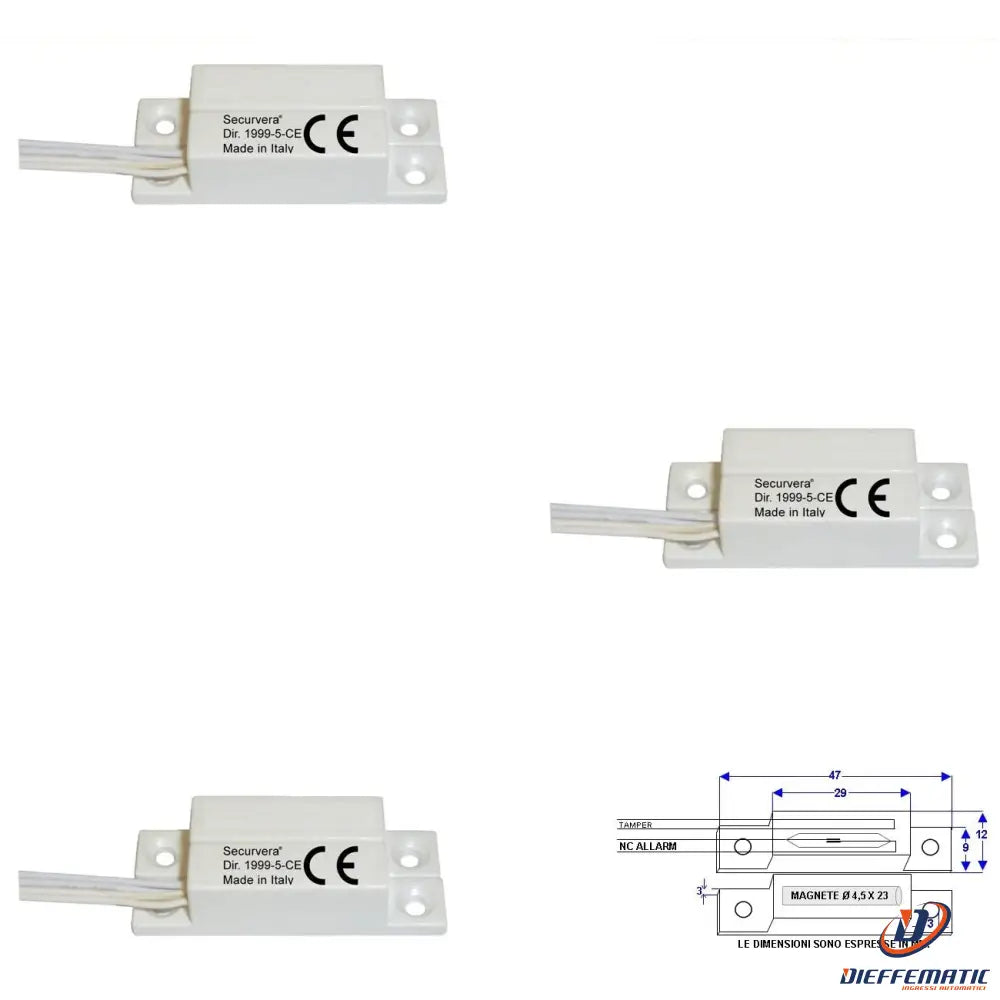

03 ST-405 ABS Brick-Shaped Magnetic Contact with Sealed Reed Switch Maximum Current 30 V 0.5 A IP 65 Protection 4 Wires 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
