Description
Outdoor Magnetic Sensors, 5 Pieces, Magnetic Sensitivity 13 mm, NC Reed Contact, Vacuum-sealed, Max. Voltage 30 V, 0.5 A Resistive Load, 4 Wires: 2 NC and 2 Tamper Contacts, with ABS Perforated Mounting Tabs, IP6
Mod. ST-405CMABCTD
SKU: ST-405CMABCTD

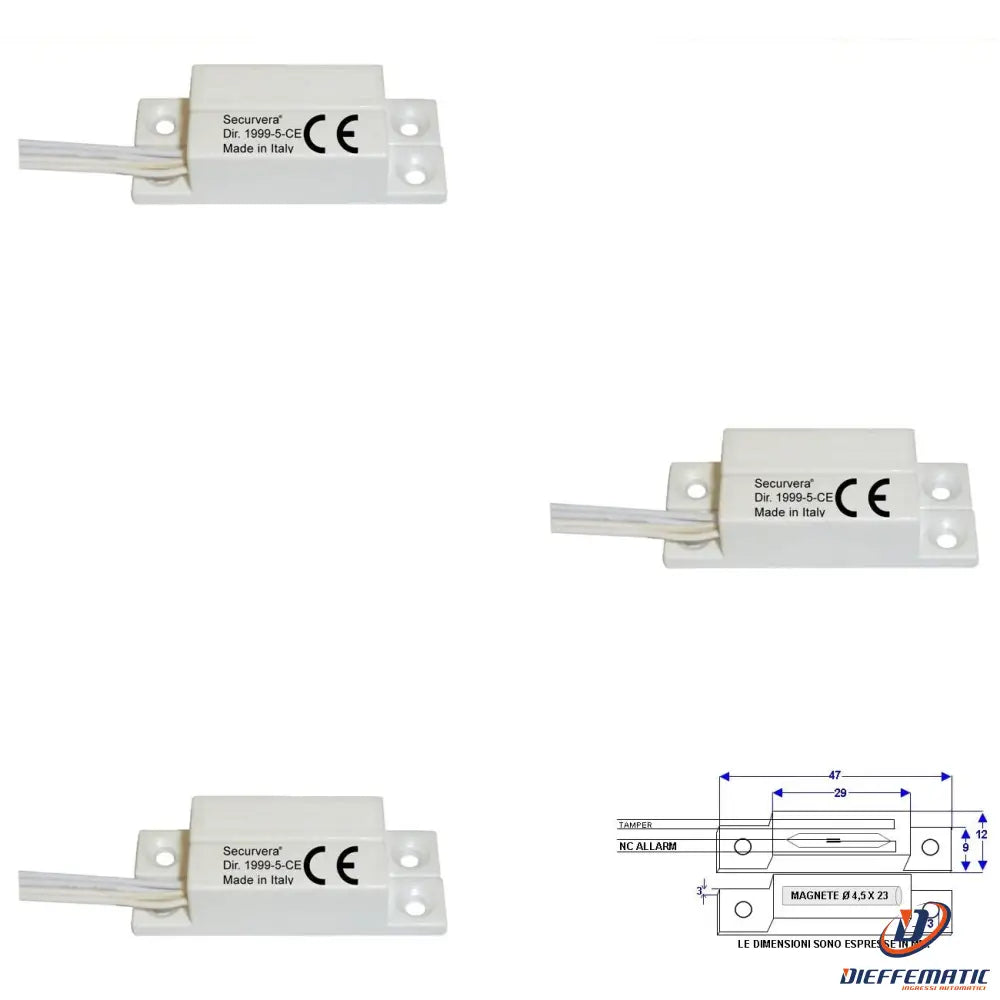

ST-405 NC magnetic contact with a vacuum-sealed glass capsule and perforated mounting tabs. Maximum current: 500 mA at 30 V. Maximum power: 10 W. Magnetic field: 13 mm. Consists of 2 pieces of the same shape. The part with the wires contains a reed contact in a vacuum-sealed glass capsule, in the NO position. Bringing the magnet closer causes the contacts to close in the NC position. The other part contains a permanent magnet. Operating temperature: -25 to +70°. Particularly suitable for protecting non-ferrous window and door frames, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the part with the wires, on the fixed part of the frame, and the magnet opposite it on the movable part (door). The protected frames must be completely closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wire connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated tabs. Suitable for monitoring the opening of non-ferrous frames. Installed dimensions L46XH23XS8 mm. Weight: 12 g. Product assembled at the selected facility at the Securvera plant in Rome. Guaranteed by law against manufacturing defects and faults. Product assembled and selected at the Securvera plant in Rome. Covered by a 24-month warranty as required by law against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
05 ST-405 Brick-shaped ABS Magnetic Contact, RED Vacuum-sealed, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires: 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Assembly Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
