Description
Outdoor Magnetic Contact, 5 Pieces, with Mounting Tabs, Vacuum-Sealed Reed Switch, Magnetic Sensitivity 13 mm, Max. Voltage 30 V, 0.5 A Resistive Load, 4-Wire Output, 2 NC and 2 Tamper, ABS Cover, IP65 Protection
Model ST-405CMABCTB
SKU: ST-405CMABCTB

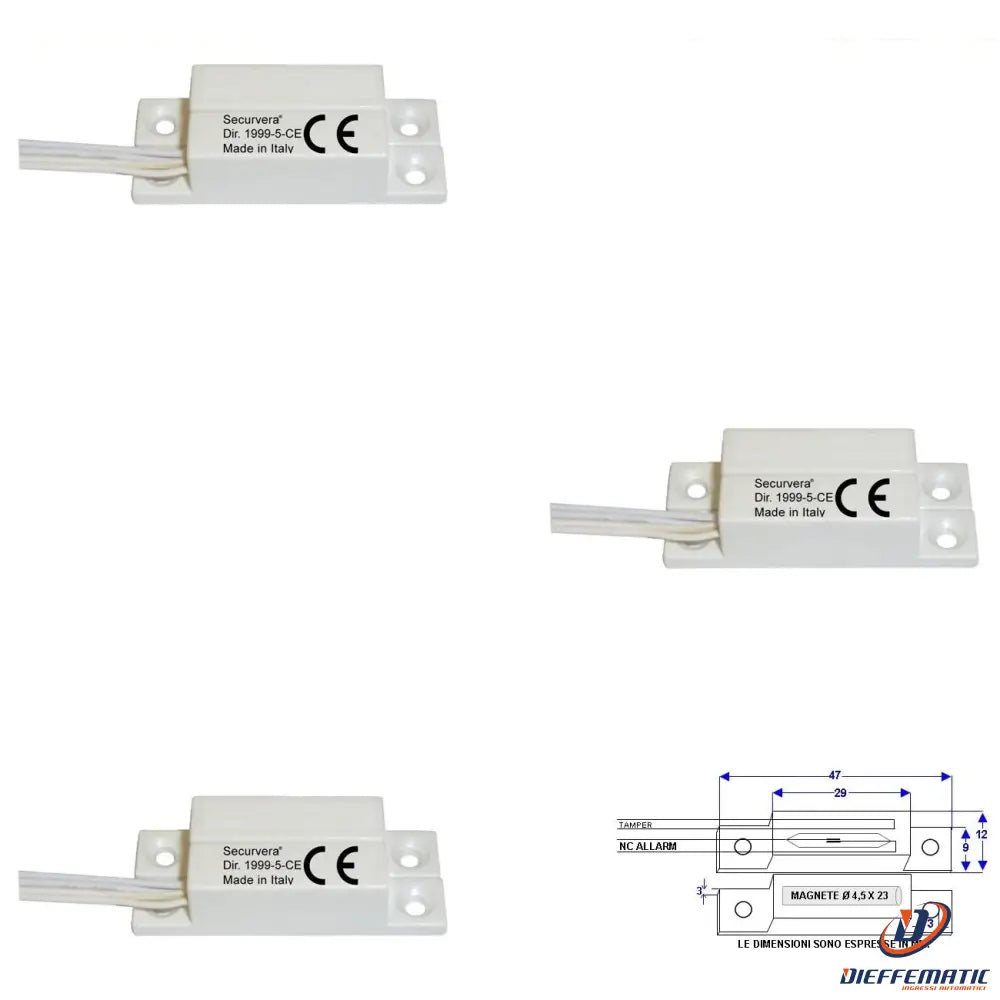

ST-405 NC magnetic contact with vacuum-sealed glass reed switch and perforated mounting tabs. Maximum current 500 mA at 30 V. Maximum power 10 W. Magnetic field range 13 mm. Comprises 2 parts of the same shape. The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close into the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the one with the wires, on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wired connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated tabs. Suitable for monitoring the opening of non-ferrous frames. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the facility selected by Securvera in Rome. Guaranteed by law against manufacturing defects and faults. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continually updated
LIST OF COMPONENTS FOR SALE:
05 ST-405 RED Vacuum-Sealed Reed Magnetic Contact in Brick Shape, ABS, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
