Description
Three-Piece Door Protection, Outdoor Magnetic Contact, Reed Alarm Sensor, NC Output, 13 mm Magnetic Sensitivity, Max Switching Voltage 30 V 0.5 Ah, Resistive Load, 2 Terminals, White ABS Cover, IP40
Mod. ST-41BCMEP3SC
SKU: ST-41BCMEP3SC

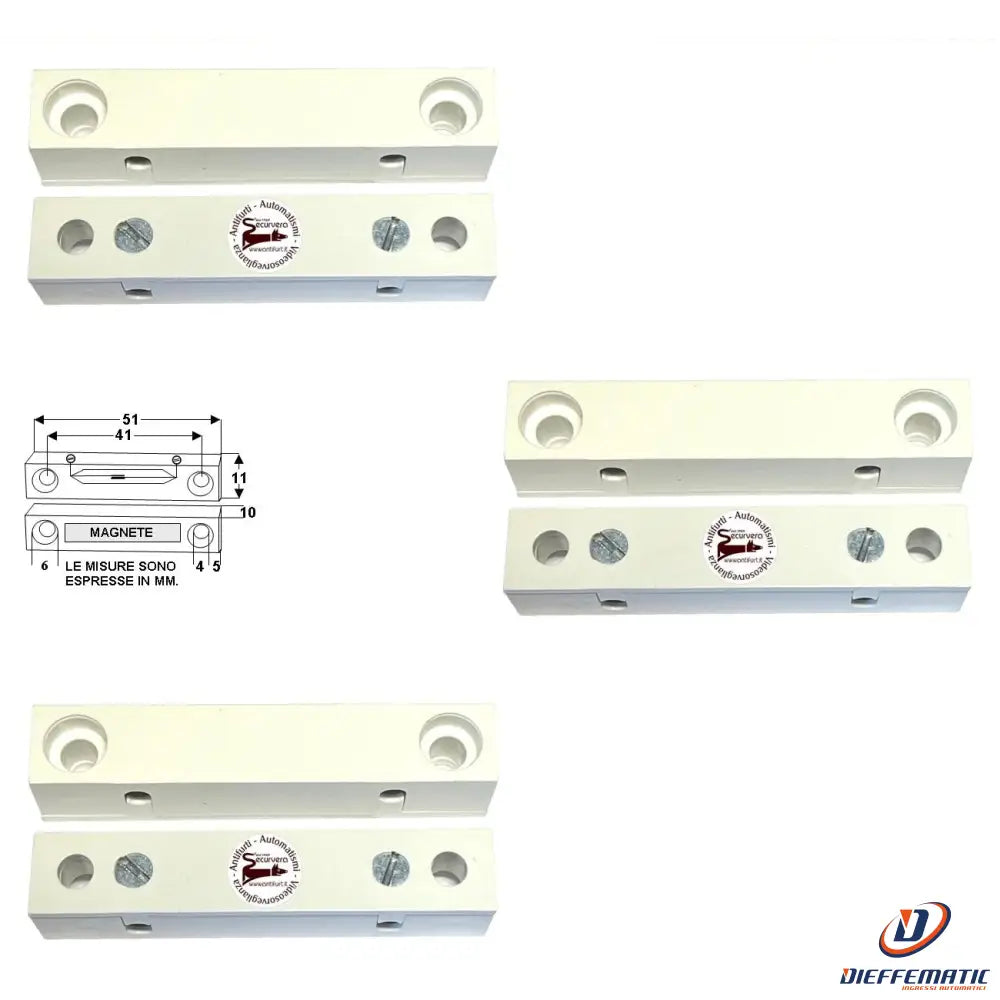

ST-41B NC magnetic contact with vacuum-sealed glass reed switch. With mounting holes. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic gap 13 mm. Consists of 2 pieces of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous fixtures in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the one with the terminals, must be installed on the fixed part of the fixture (frame), while the magnet is positioned opposite on the moving part (door). The protected fixtures must be fully closed. Complies with CEI 79/2. Connection: 2 terminals. Complies with CEI 79-2 Level 1. White rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of (non-ferrous) fixtures. Dimensions L51XH11XS10 mm. Weight 12 g. Product assembled and selected at the Securvera plant in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
03 ST-41B ABS Brick-Shaped Magnetic Contact RED Vacuum-Sealed Max Current 30 V 0.5 A IP41 Protection NC Contact. 2 Terminals
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, lifetime warranty against manufacturing defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
