Shipping
shipping in 10 working days
Description
2 REMOTE SIGNALS OPTICAL AND AUDIO ALARM OUTSIDE THE DOOR FIRE BUSY END OF WORK END OF ACTION SOS MOVEMENT - SF-LRSRFPCOSC
Mod. SF-LRSRFPCOSC
SKU: SF-LRSRFPCOSC

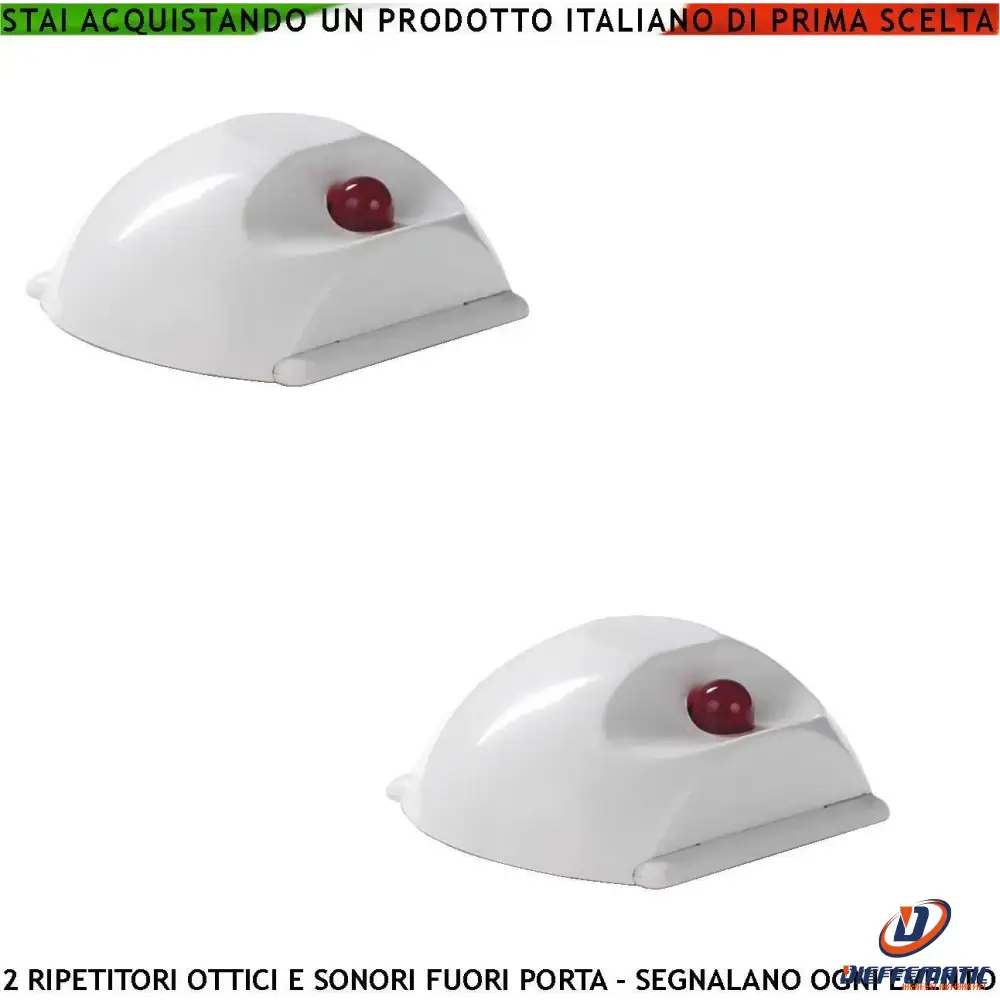

SF-LRSRFPCOSC Optical and acoustic repeaters for remote status or event indicators. Particularly suitable for conventional sensors to which it must be directly connected powered by the same Loop and signals the alarm state of the detector (for example in a corridor to quickly identify which room is alarmed. This device allows repeating the state and signaling of any requested state or automatic; room occupied; bathroom or toilet occupied or in SOS. Alarm status of refrigerators, ovens, liquid leaks, open doors, and many other applications. The functions are individually programmable: LED or buzzer exclusion, fixed or intermittent function. Container White ABS. Power supply from Loop or directly 12/28Vdc. Average absorption 22mA. Acoustic power 50 dB. LED visibility: 360°. Operating temperature: -5° C. +70° C. Maximum relative humidity 93% no condensation. Degree of IP41 protection. Dimensions: 79x63x23mm. Certified EN54-2, EN54-4 CPD. Guaranteed by law against defects and manufacturing defects. Product assembled and selected in the Securvera Roma factory
LIST OF CE COMPONENT(S) FOR THE EXPANSION OR CONSTRUCTION OF A FIRE ALARM SYSTEM IN ACCORDANCE WITH THE LAW:
02 SF-LRS Optical and Sound Event Repeater LED + Buzzer 50 dB Power supply 12 and 28 Vdc Absorption 22 mA to be connected to the OC output detector
01 SV-GAR Guarantee Certificate; Securvera Manufacturer's Warranty As per Law: 24 Months; Qualified Installation Compliant with DM37/2008 for life
01 SV-IST Detailed Instructions for Assembly. Current fire regulations on risk assessment must be respected
Securvera Registered Trademark 663069: Fire Prevention Automations Entrance Control Sensors Alarm Wire and Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Fire Fighting System Kit Thermal Power Station SOS Extinguishing Intervention
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal Live Existence Control Line Isolator Sensors
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility other brands: Badenie Smoke Flame Temperature Detectors Conventional Systems
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SF-LRSRFPCOSC Conventional Fixed Threshold Temperature Detector
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
