Description
Brown Magnetic Microcontact 2 Pieces Door and Window Alarm NC Burglar Alarm Reed Contact in Vacuum-Sealed Capsule Magnetic Field 10 mm Max Voltage 100 V Current 1 A With Mounting Holes IP65 4 Wires
Model ST-10MDMCFEPE
SKU: ST-10MDMCFEPE

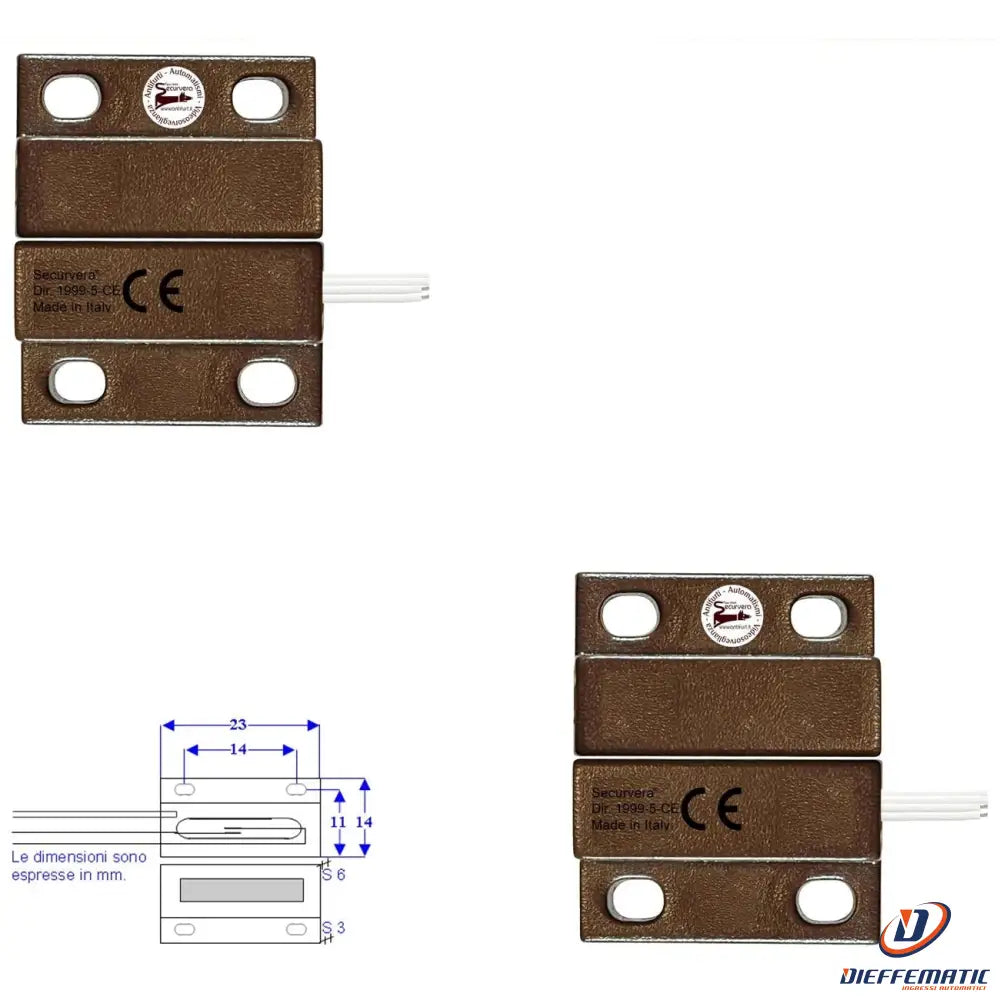

ST-10M Miniature Ultra-Flat Brown NC Magnetic Contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic field 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a reed contact in a vacuum-sealed glass capsule, connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 uninterrupted Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of all types of non-ferrous frames, doors, windows, parts counters, limit switches for moving machinery, and more. The contact part with the wires must be installed on the fixed part of the frame (frame), while the magnet must be positioned opposite it on the moving part (door). Protected frames must be fully closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular shape with mounting holes. Installed dimensions of the 2 pieces L14XH23XS6XS3 mm. Weight 8 g. Product assembled and inspected at the Securvera facility in Rome. Warranted in accordance with the law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
02 ST-10M Brown Magnetic Microcontact with Vacuum-Sealed Glass Capsule Max Current 100 V 1 A IP 65 Protection 4 Wires 2 N.C. 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
