Brown Micro Magnetic Contact for Frame Alarm, NC Reed Sensor, 2 Pieces in Vacuum-Sealed Capsule, Magnetic Range 10 mm, Max Voltage 100 V, Current 1 A, Cover with Mounting Holes, IP65, 4 Wires
Mod. ST-10MDMCFEPC
SKU: ST-10MDMCFEPC

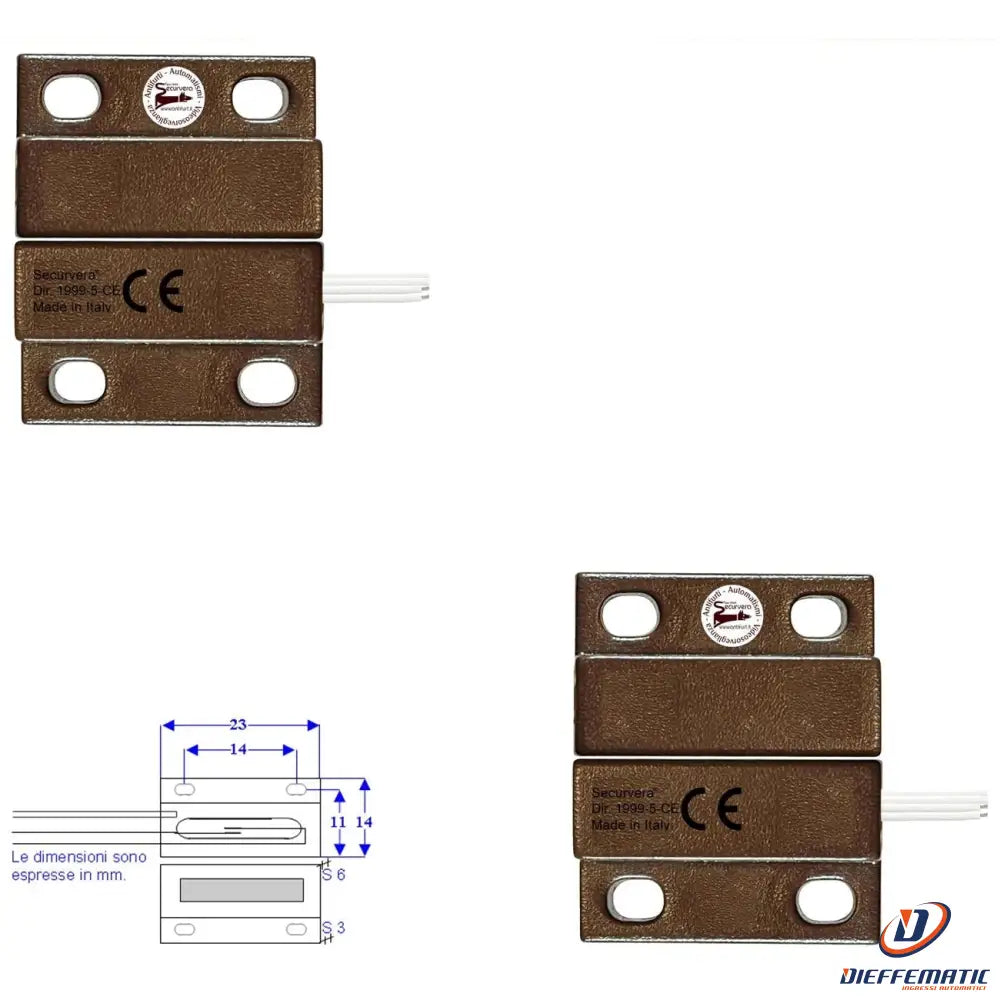

ST-10M Miniature ultra-flat brown NC magnetic contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic range 10 mm. Consisting of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a reed contact in a vacuum-sealed glass capsule connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 unbroken Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part with the wires should be installed on the fixed part of the frame, while the magnet should be aligned with it on the moving part (door). The protected frames must be fully closed. Operating temperature from -25 to +70°. IP 65. Made of brown ABS plastic, rectangular shape with mounting holes. Installed dimensions of the 2 pieces: L14XH23XS6XS3 mm. Weight 8 gr. Assembled and selected at the Securvera plant in Rome. Covered by a 24-month statutory warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
COMPONENTS FOR SALE:
02 ST-10M Brown Magnetic Microcontact with Vacuum-Sealed Glass Capsule Max Current 100 V 1 A IP 65 Protection 4 Wires 2 N.C. 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
