Description
White Mini NC Magnetic Contact 2-Piece Alarm Sensor for Frames Max. Voltage 100 V Current 1 A Housings with Mounting Holes Reed Contact in Vacuum-Sealed Capsule Magnetic Sensitivity 10 mm IP65 4 Wires
Mod. ST-100DMCFEPD
SKU: ST-100DMCFEPD

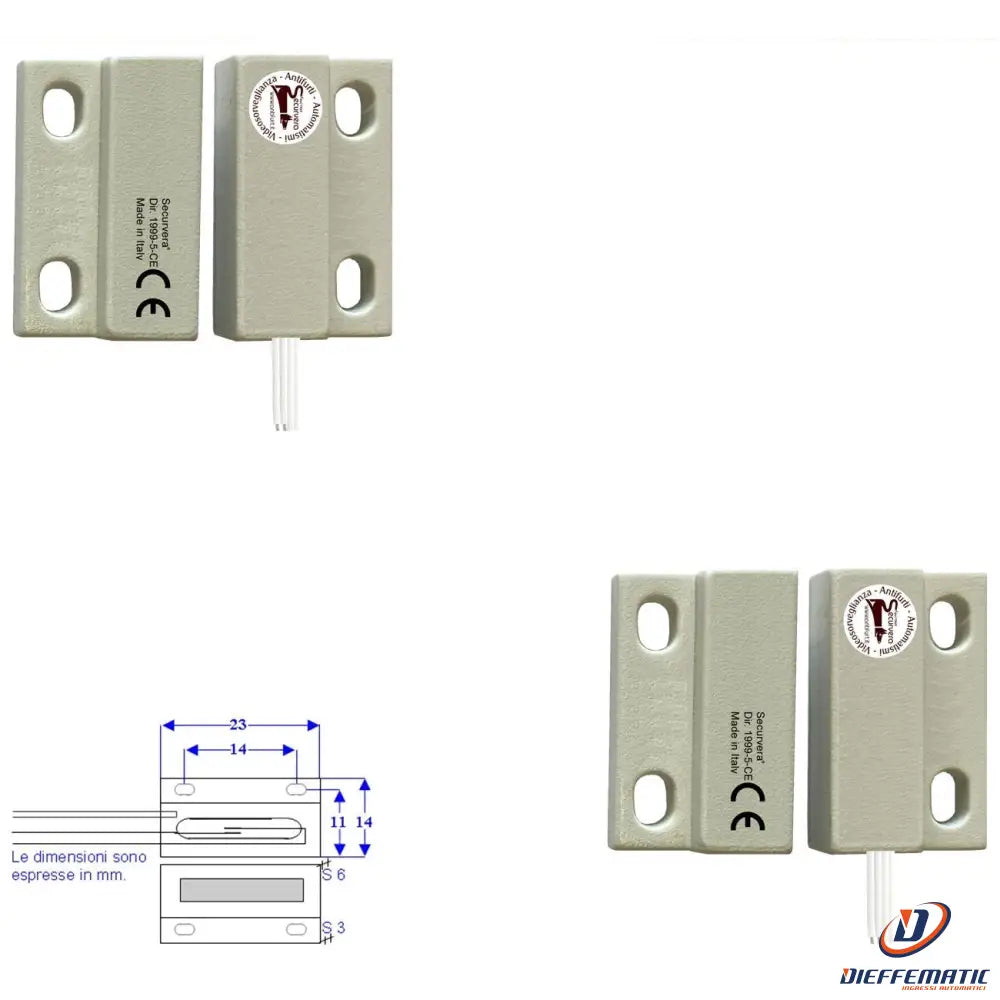

ST-100 Miniature, ultra-flat NC magnetic contact. Maximum switching voltage 100 V DC. Current 1 Ah. Magnetic range 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with 4 wires contains a reed contact in a vacuum-sealed glass capsule, connected to 2 stripped wires; when the magnet is nearby, the contacts are in the NC position. 2 unbroken Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machines, and more. Install the contact part with the wires on the fixed part of the frame, while the magnet is positioned opposite it on the moving part (door). The protected frames must be completely closed. Operating temperature from -25 to +70°. IP 65. Made of ABS plastic, rectangular shape with mounting holes. Installed dimensions of both pieces L14XH23XS6XS3 mm. Weight 8 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed as required by law for 24 months against manufacturing defects and faults. Complies with the European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
02 ST-100 RED Magnetic Sensor Contact in Vacuum-Sealed Glass Capsule Max. Current 100 V 1 A IP 65 Protection 4 Wires 2 N.C. 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements, D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
