Description
12 V Power Supply Distributor Divided into 2 Groups, with 6 Fuse-Protected Outputs, Individual Failure and General Fault Indication via Volt-Free Relay Contacts. Useful Protection for Peripherals
Mod. SS-FAEMD2GSFE
SKU: SS-FAEMD2GSFE

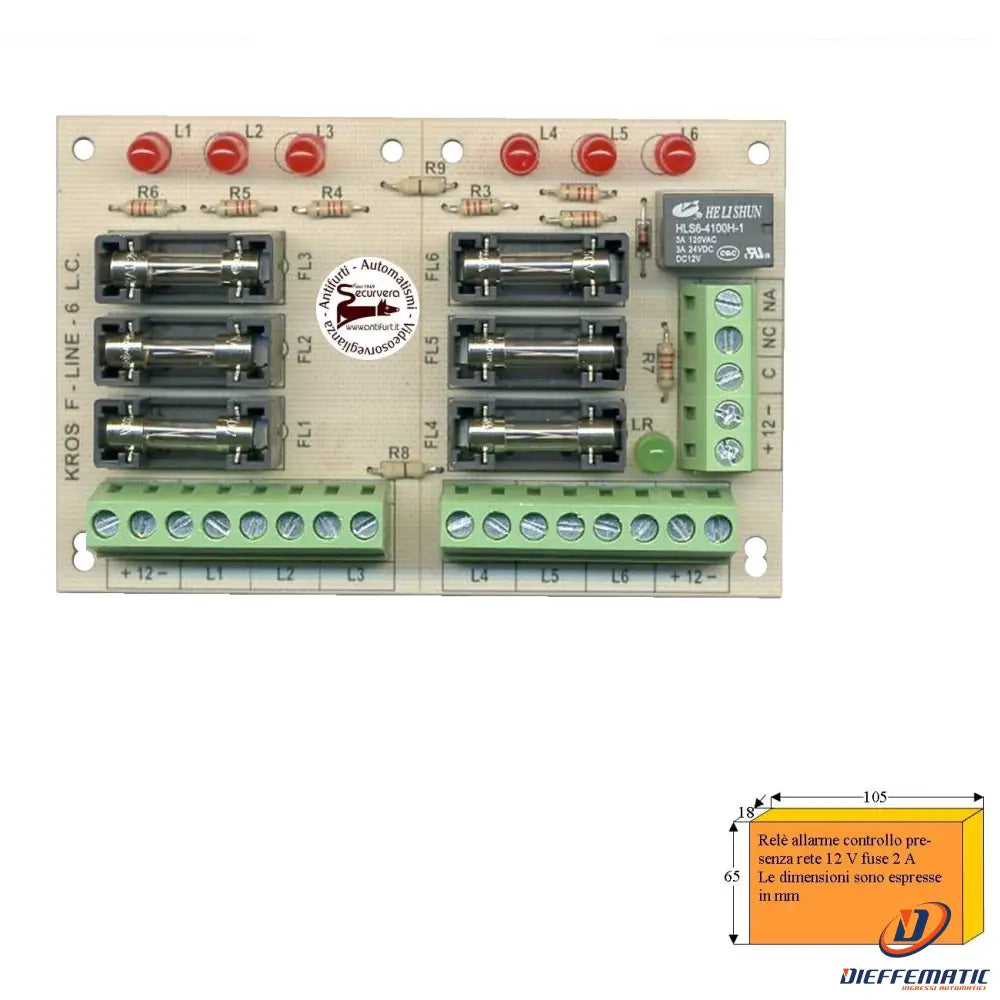

SS-FAE Intelligent device for distributing fused power to other external equipment. 2 12 V power inputs. Six outputs protected by individual 2 A fuses. Power on lines L1-L6 is indicated by an illuminated LED. LED off: fuse blown. If you need to control 2 separate power supplies, cut resistors R8 and R9; this will provide 3 separate fused outputs (group 1 = L1-L2-L3) (group 2 = L4-L5-L6), rated 2 A or more for each input. Onboard relay protected and suitable for O.C. outputs. Volt-free changeover contact rated 3 A at 24 V. Relay activation indicated by LED. Mounting board. Dimensions L104XH65XS18 mm. Weight 60 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all standards of the European Directives: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. Directive 2004/30/CE:2014/30/UE - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/UE
COMPONENTS FOR SALE:
01 SS-FAE 2-Group Fused 12 V Power Supply Distributor with Fault and Individual Fuse Failure Indication
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Qualified Installation under Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; The Connections, Logic Functions, and Fuse Ratings Must Be Observed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
